Radeon™ RX 7700 XT GAMING OC 12G

Experience incredible performance, visuals, and efficiency when gaming and streaming with the AMD Radeon™ RX 7700 XT and 7800 XT graphics cards, powered by the AMD RDNA™ 3 architecture. Immerse yourself in next-generation desktop experiences on some of the most advanced high refresh rate displays with up to 16GB of GDDR6 memory, new frame generation technologies, advanced raytracing, AI accelerators, AV1 encoding4, and support for the latest DisplayPort™ 2.1 technology. The Radeon™ RX 7700 XT and 7800 XT delivers an incredible high refresh 1440p gaming & streaming experience, with additional video memory to step into 4K.

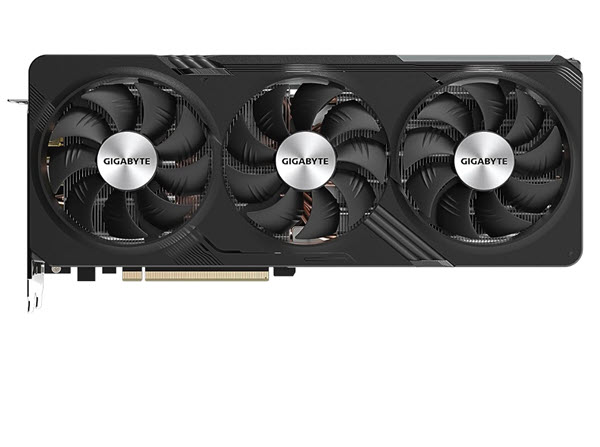

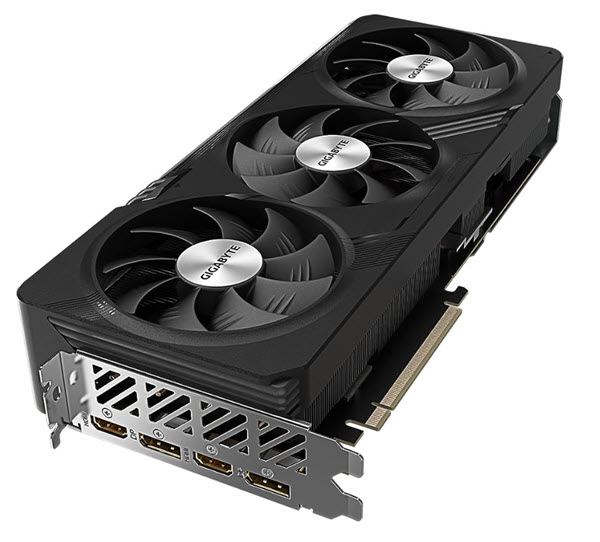

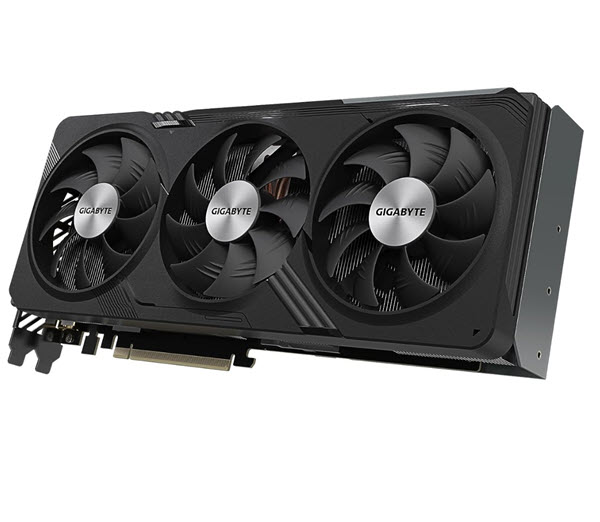

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink. Extended heatsink allows air to pass through, providing better heat dissipation.

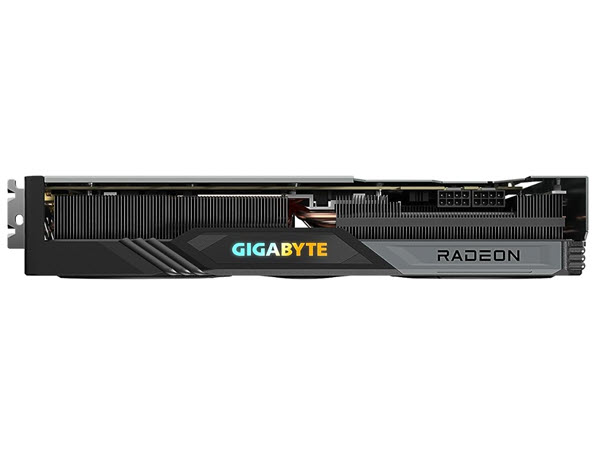

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

Highlights

• Graphics Processing: Radeon™ RX 7700 XT
• Core Clock: Boost Clock : up to 2599 MHz (Reference card: 2544 MHz), Game Clock : up to 2276 MHz (Reference card: 2171 MHz)
• Stream Processors: 3456
• Memory Clock: 18 Gbps
• Memory Size: 12 GB
• Memory Type: GDDR6
• Memory Bus: 192 bit
• Card Bus: PCI-E 4.0
• Digital max resolution: 7680 x 4320
• Multi-view: 4
• Card size: L=302 W=130 H=56 mm
• PCB Form: ATX
• DirectX: 12 Ultimate
• OpenGL: 4.6
• Recommended PSU: 700 W
• Power Connectors: 8 Pin x 2

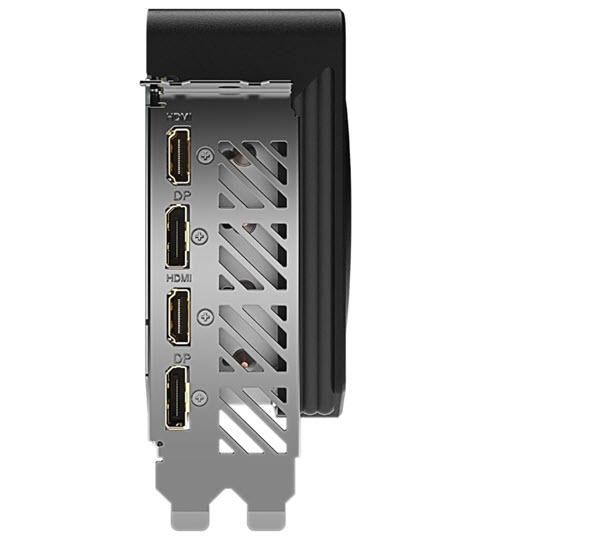

• Output: DisplayPort 2.1 x 2, HDMI 2.1 x 2
• Accessories: Quick guide
• Warranty: 3 Years
