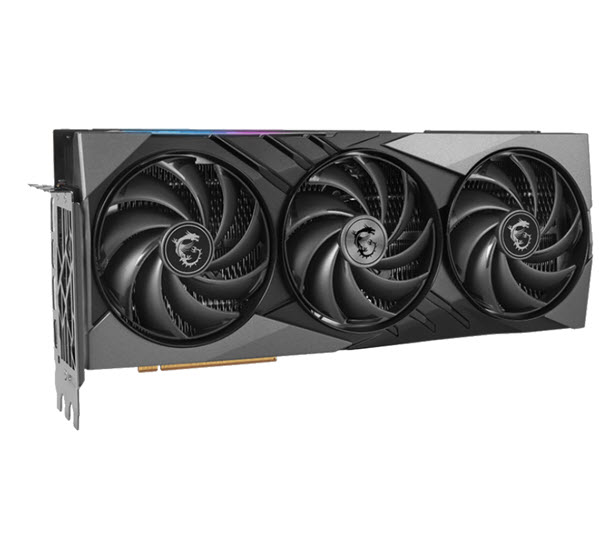

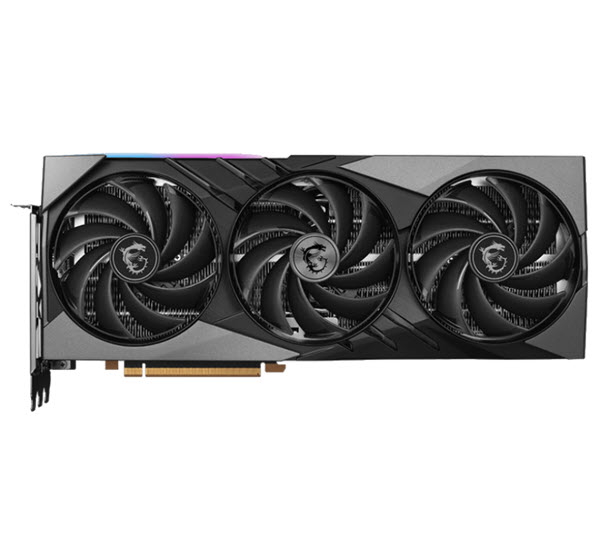

GeForce RTX™ 4090 GAMING X SLIM 24G

The NVIDIA® GeForce RTX™ 4090 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics with DLSS 3. Experience ultra-high performance gaming, incredibly detailed virtual worlds with ray tracing, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of G6X memory to deliver the ultimate experience for gamers and creators.

GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.

TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.

Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate and spread the heat along the full length of the heatsink.

Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the. balance between cooling and quieter acoustics.

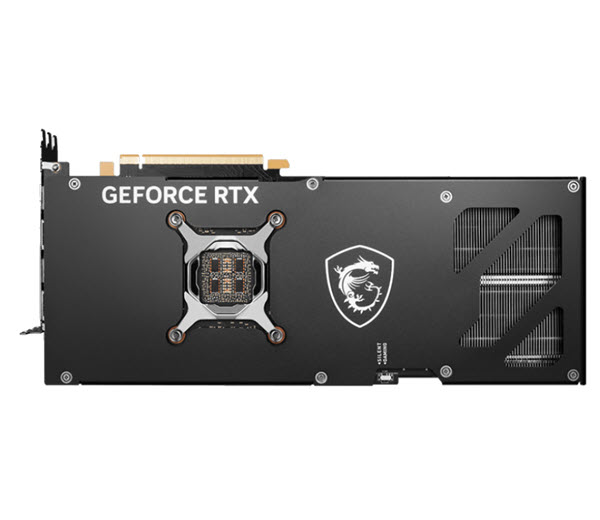

A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.

Highlights

GRAPHICS PROCESSING UNIT: NVIDIA® GeForce RTX™ 4090
INTERFACE: PCI Express® Gen 4
CORE CLOCKS: Extreme Performance: 2610 MHz (MSI Center), Boost: 2595 MHz (GAMING & SILENT Mode)
CUDA® CORES: 16384 Units
MEMORY SPEED: 21 Gbps
MEMORY: 24 GB GDDR6X
MEMORY BUS: 384-bit

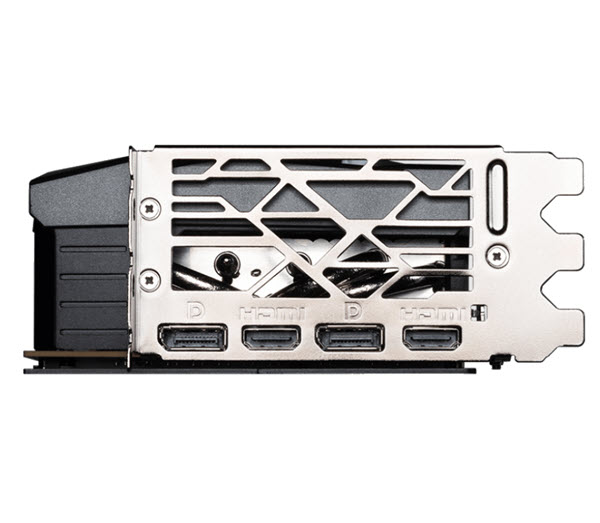

OUTPUT: DisplayPort x 2 (v1.4a), HDMI™ x 2 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a)
HDCP SUPPORT: Yes
POWER CONSUMPTION: 450 W
RECOMMENDED PSU: 850 W
POWER CONNECTORS: 16-pin x 1
CARD DIMENSION (MM): 322 x 136 x 62 mm
DIRECTX VERSION SUPPORT: 12 Ultimate
OPENGL VERSION SUPPORT: 4.6
MAXIMUM DISPLAYS: 4
G-SYNC® TECHNOLOGY: Yes
DIGITAL MAXIMUM RESOLUTION: 7680 x 4320
Warranty: 3 years
