GeForce RTX™ 4070 SUPER AERO OC 12G

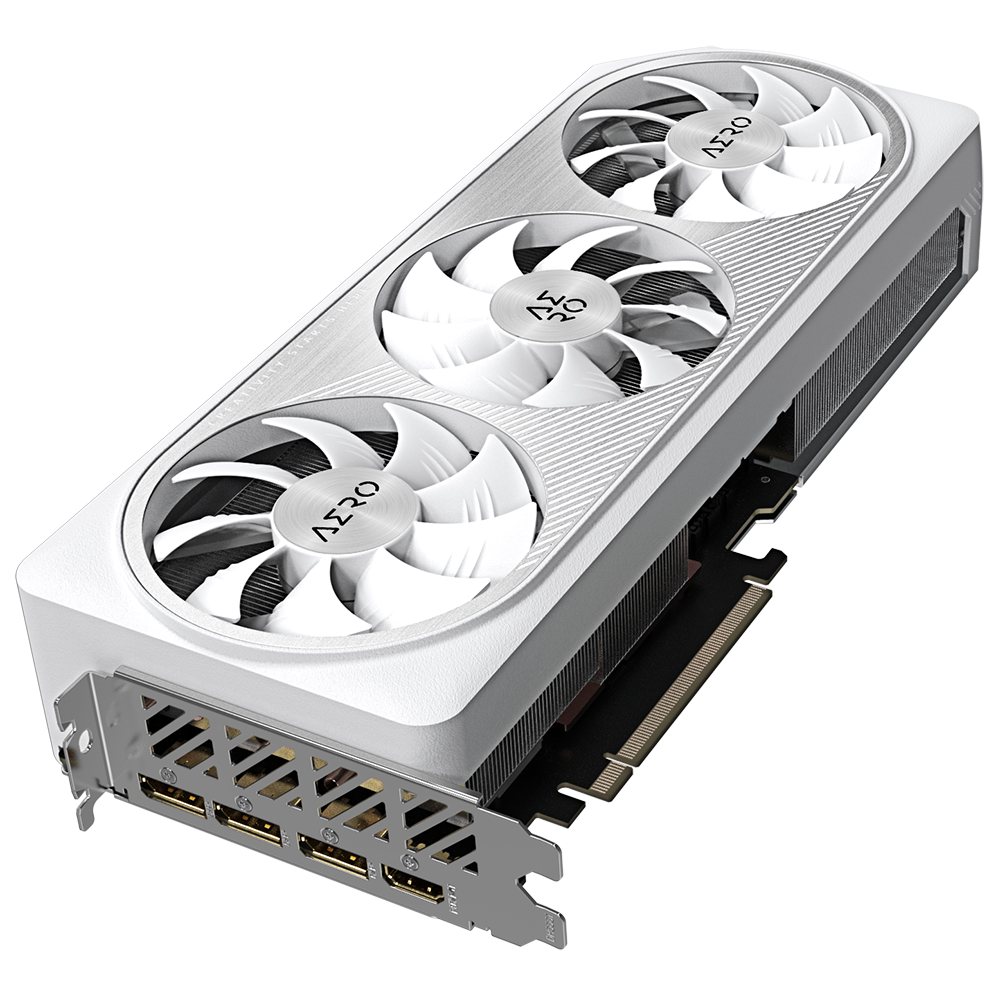

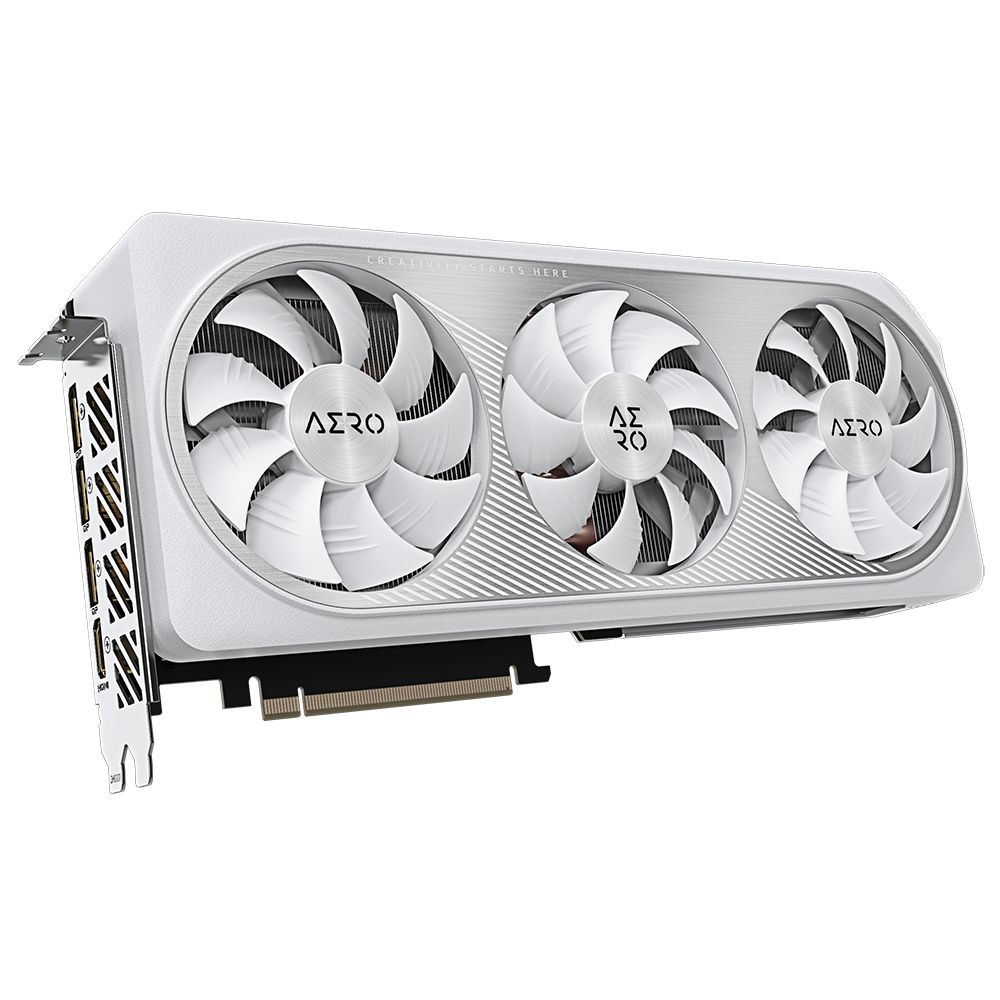

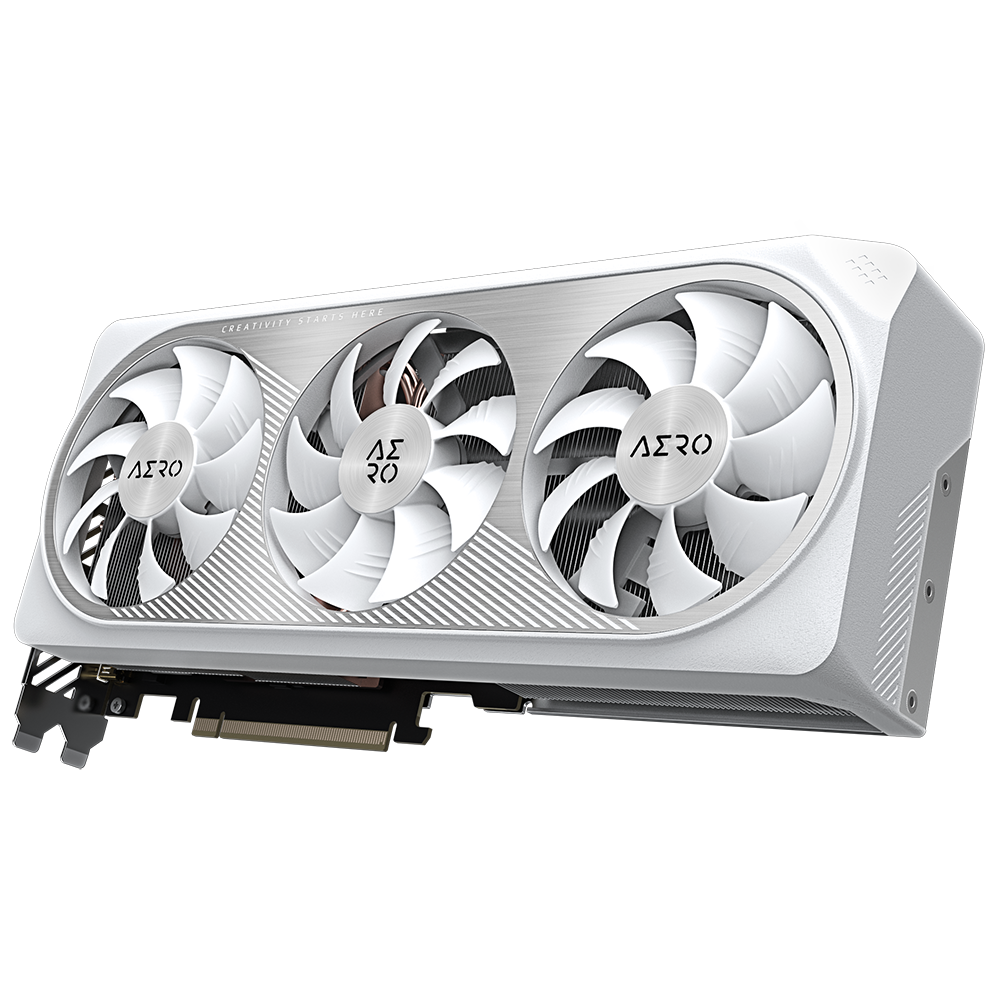

The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation. ALTERNATE SPINNING - Reduces the turbulence of adjacent fans and increase airflow pressure. The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The airflow is split by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.

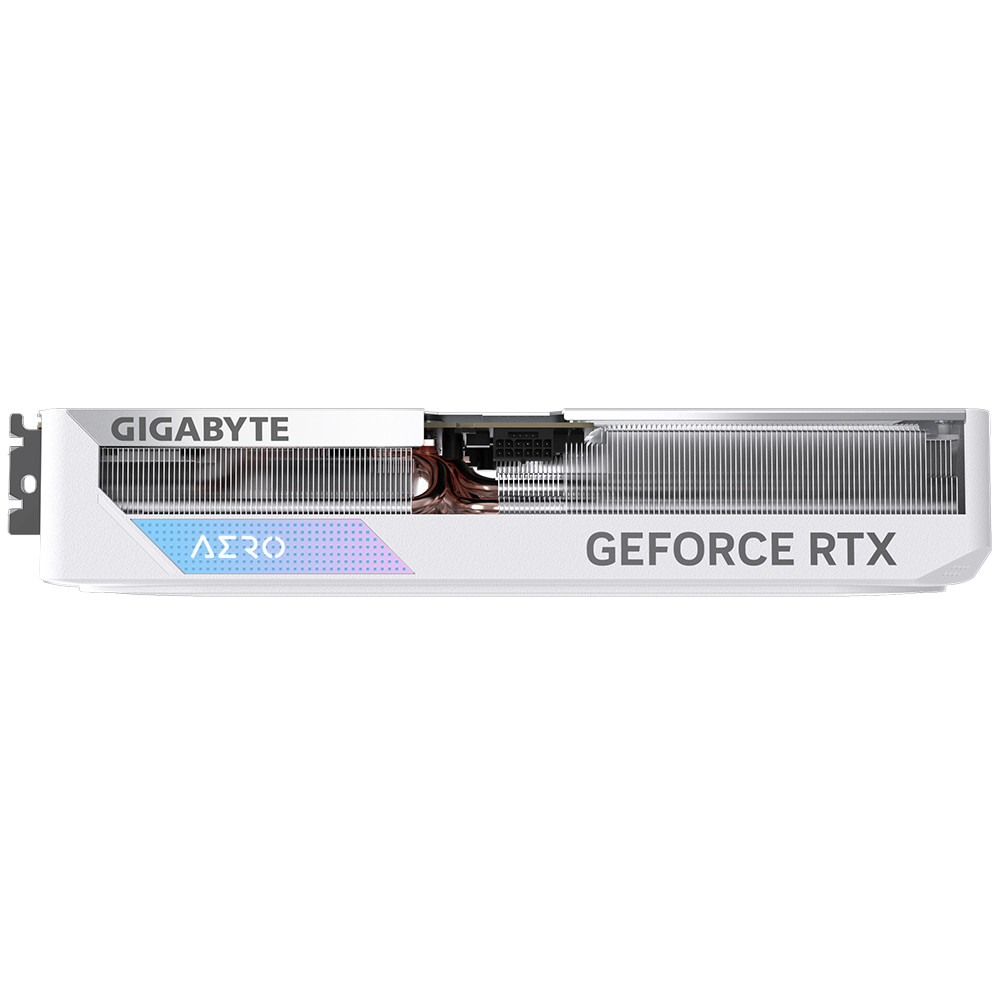

Extended heatsink design allows air flow to pass through, providing better heat dissipation. The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

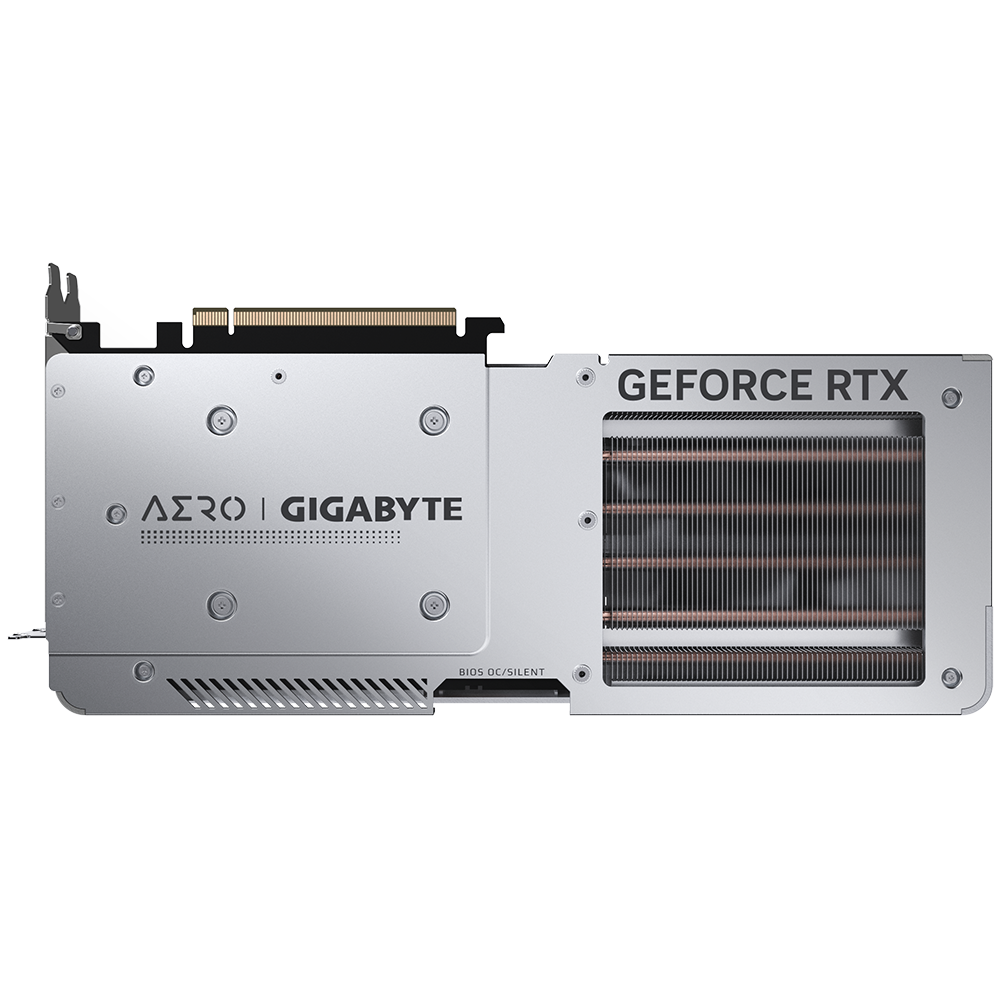

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

Highlights

• Graphics Processing: GeForce RTX™ 4070 SUPER
• Core Clock: 2565 MHz (Reference card: 2475 MHz)
• CUDA® Cores: 7168
• Memory: 12 GB GDDR6X
• Memory Clock: 21 Gbps
• Memory Bus: 192 bit
• Card Bus: PCI-E 4.0
• Digital max resolution: 7680 x 4320
• Multi-view: 4
• Card size: L=300 W=130 H=57.6 mm
• PCB Form: ATX
• DirectX: 12 Ultimate
• OpenGL: 4.6
• Recommended PSU: 700 W
• Power Connectors: 16 pin x 1

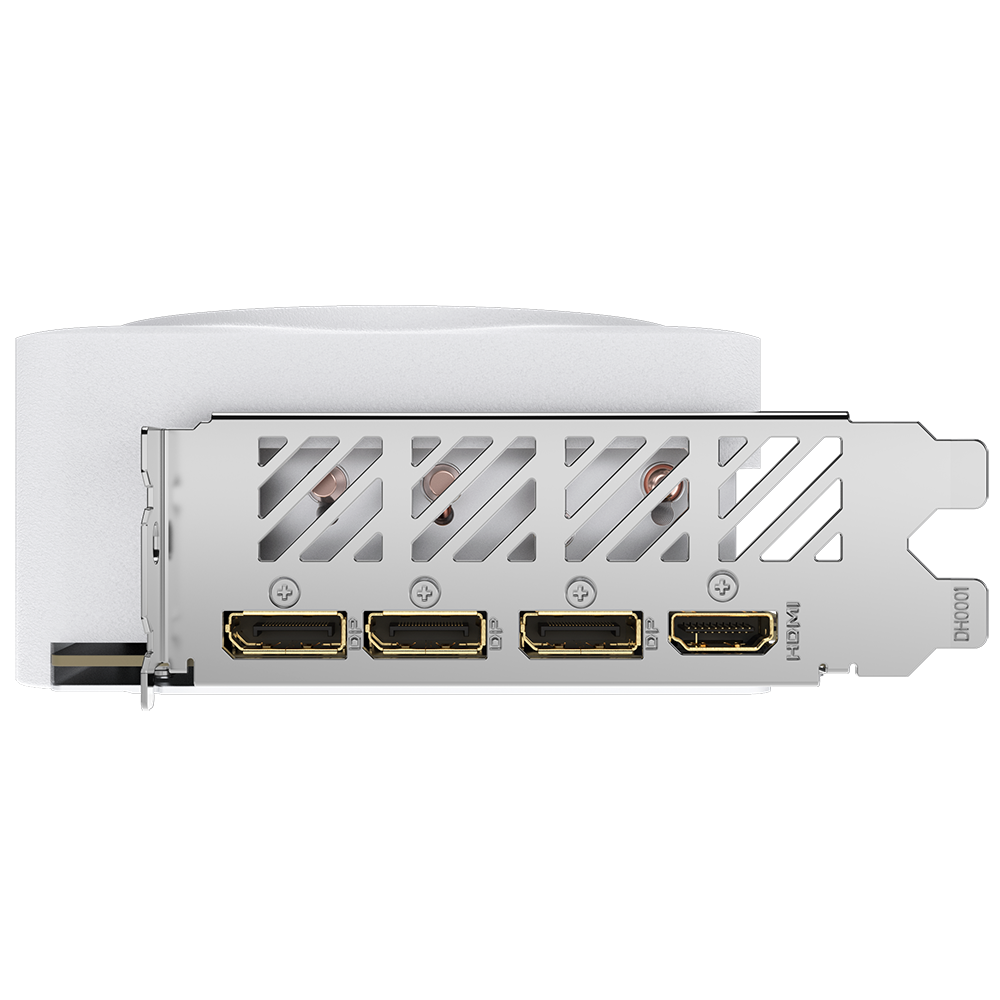

• Output: DisplayPort 1.4a x 3, HDMI 2.1a x 1
• Accessories: Quick guide, Warranty registration, One 16 pin two 8-pin power adapter
• Warranty: 4 Years Warranty (Online registration required)
