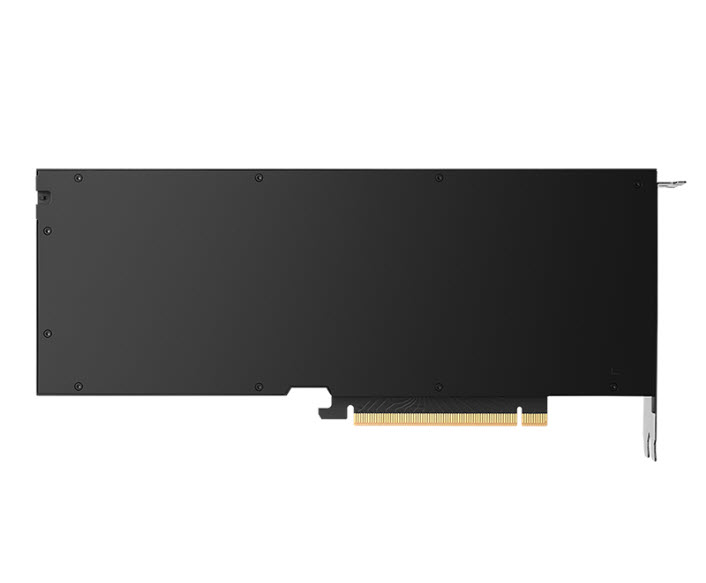

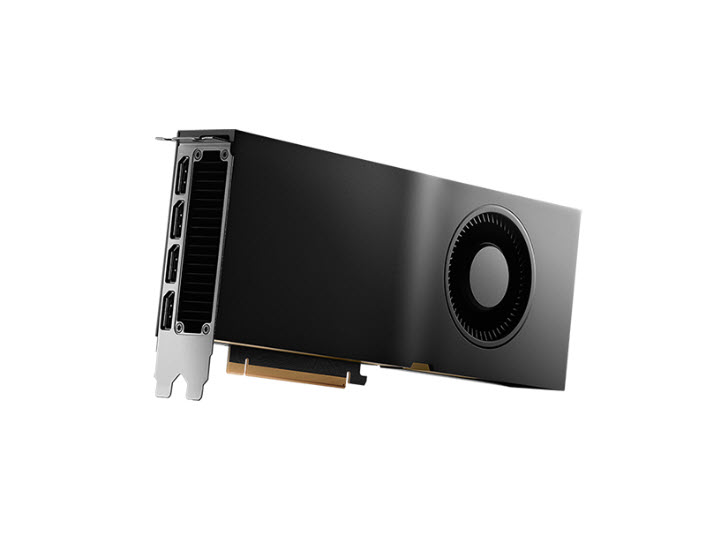

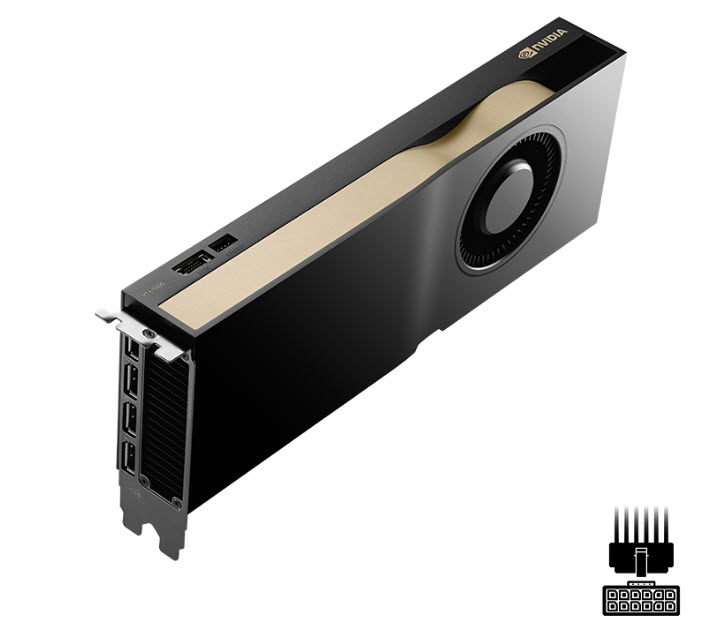

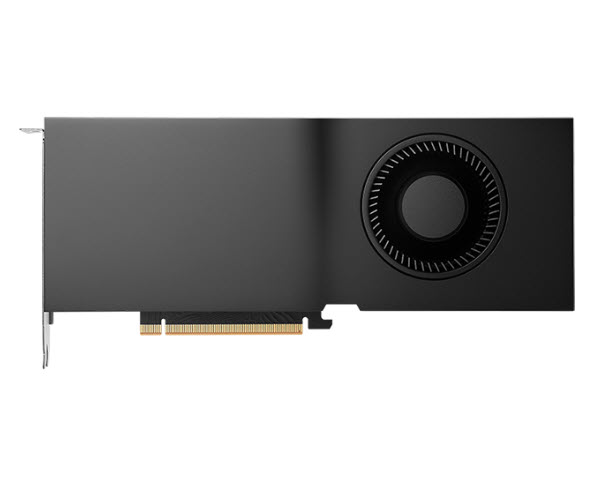

NVIDIA RTX 4500 ADA

Experience fast, interactive performance—powered by the latest NVIDIA Ada Lovelace architecture-based GPU—with ultra-fast, onboard graphics memory technology and optimized software drivers for professional applications. The Shader Execution Reordering (SER) system allows on-the-fly organization and reordering of workloads, grouping similar performing threads so the streaming multiprocessor (SM) and RT Core can operate more efficiently.

Fourth-generation Tensor Cores provide up to 4X faster AI training performance than the previous generation with FP16 precision. Support for the new FP8 data format for inference provides more than 4X faster performance than the previous generation and reduces data memory usage by half (compared to the FP16 data format).

RTX 4500 features 24 GB of GDDR6 memory, providing the memory needed for rendering, data science, engineering simulation, and other GPU memory-intensive applications. With greater memory bandwidth than the previous generation, RTX 4500 can move data between the GPU and GPU memory faster, resulting in better graphics, compute, and rendering performance.

With a single-slot, low-profile form factor, and power-efficient design, RTX 4000 fits into a wide range of workstation chassis, providing professionals with a generous selection of compatible workstations from worldwide OEM vendors and delivering a groundbreaking GPU architecture for AI and AI-based neural graphics in desktop workstations.

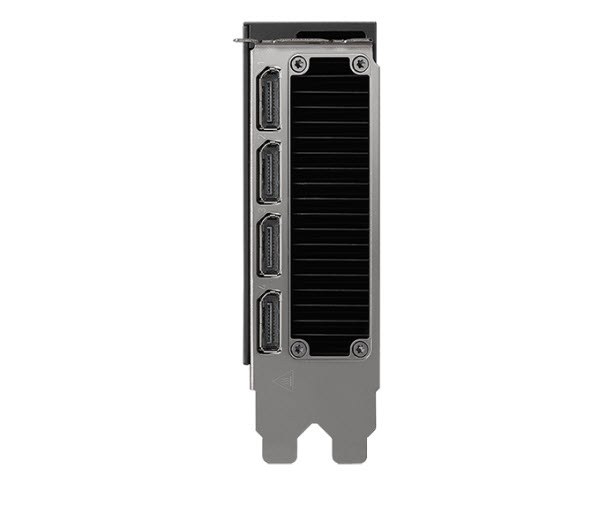

Four mini-DisplayPort 1.4a connectors, support for multiple 8K monitors, NVIDIA Quadro Sync, Mosaic, and Warp and Blend enable massive immersive environments for CAVE, video walls, and location-based entertainment deployments.

Support for the latest high-resolution HMD devices, high-performance graphics, and 20GB of GPU memory enable the creation of AR and VR experiences for training, product validations, building walkthroughs, and compelling entertainment.

Hardware-accelerated rendering of motion blur—a common cinematic effect that's difficult to render—means artists no longer need to rely on traditional methods of using motion vectors to achieve motion blur. Motion vectors allow the artist to adjust motion blur in post but require visual fixes for reflections and translucency.

The Ada Lovelace GPU architecture features a new Optical Flow Accelerator and AI-based DLSS Super Resolution with DL denoiser that boost DLSS 3.0's frame rates up to 4X compared to the previous version while maintaining or exceeding native image quality.

Highlights

• Product: NVIDIA RTX 4500 Ada Generation
• Architecture: NVIDIA Ada Lovelace Architecture
• Foundry: TSMC
• Process Size: 4 nm NVIDIA Custom Process
• Transistors: 35.8 billion
• Die Size: 294.5 mm
• CUDA Parallel Processing Cores: 7,680
• NVIDIA Tensor Cores: 240
• NVIDIA RT Cores: 60
• Single-Precision Performance: 39.9 TFLOPS
• RT Core Performance: 92.2 TFLOPS
• Tensor Performance: 637.8 TFLOPS
• GPU Memory: 24 GB GDDR6 with ECC
• Memory Interface: 192-bit
• Memory Bandwidth: 432 GB/s
• Max Power Consumption: 210 W
• Graphics Bus: PCI Express 4.0 x16
• Display Connectors: DP 1.4a (4)
• Form Factor: 4.4" (H) x 10.5"(L) Dual Slot
• Thermal Solution: Blower Active Fan
• NVIDIA 3D Vision® and 3D Vision Pro: Support via 3-pin mini DIN
• Frame Lock: Compatible (with Quadro Sync II)
• NVLink: Not Supported
• NVENC | NVDEC: 2x | 2x (+AV1 Encode & Decode)
• SUPPORTED PLATFORMS: Microsoft Windows 11 (64-bit), Microsoft Windows 10 (64-bit), Red Hat Enterprise Linux 7.x, SUSE Linux Enterprise Desktop 15.x, OpenSuse 15, Fedora 31, Ubuntu 18.04, FreeBSD 11.x, Solaris 11
• Warranty: 3 Years Limited
