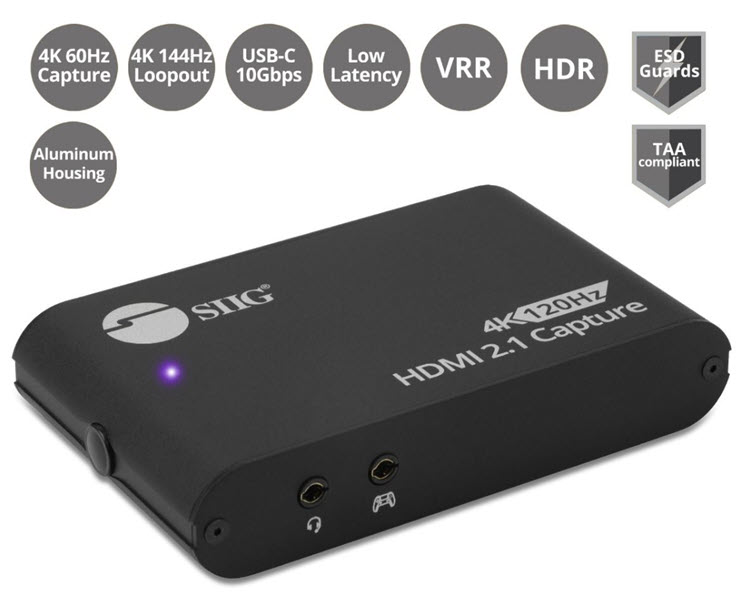

4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming - 4K60Hz Capture - 4K 120Hz (Console) / 4K144Hz (PC) Loopout - USB-C 10Gbps

Easily capture and recording 4K60Hz resolution from any HDMI source such as Gaming PC (4K144Hz), Gaming console (4K120Hz), Media players or Set-top box while simultaneously viewing in the HDMI loopout for 4K144Hz / 4K120Hz, 1080p240Hz resolution, USB-C 10Gbps, VRR, Aluminum Housing, ESD Protection, TAA Compliant.

Easily capture and record 4K@60Hz HDMI live video with low latency via a USB-C device and up to 10Gbps date transfer, great for gaming, live streaming, training, meetings and more.

Experience lifelike gaming with 4K144Hz (PC) / 2K144Hz (PC) / 4K120Hz (console) / 1080p240Hz HDMI input and pass-through, seamless capture / recording HDMI signals through USB-C 10Gbps, resolution supports 4K60Hz / 4K30Hz HDR / 2K120Hz / 2K60Hz HDR / 1080p240Hz and so on, ensuring every detail is preserved with crystal clarity. Supports various resolution with downscaling and upscaling. *Note: 1) macOS max capture: 4K30Hz; 2) 4K144Hz only works in 48G bandwidth, monitor must support 4K144Hz 48G bandwidth, if the monitor only supports 4K144Hz DSC mode, it won’t work with 4K144Hz

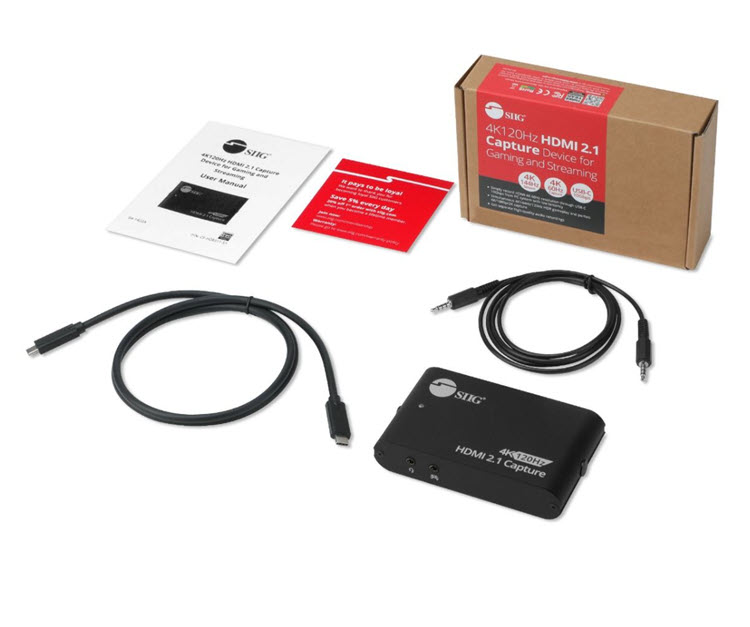

Built-in two 4-pole 3.5mm jacks enable connection with a controller and headset for game console party mode, easily control game and chat volume, simultaneous party chat & live commentary recording. One 4-pole 3.5mm cable included, no additional purchase required

With USB-C 10Gbps connectivity, transfer your captured content quickly and efficiently to your computer for editing or streaming purposes

Immerse in vibrant, true-to-life visuals through HDR and enjoying the tear-free and smooth gameplay with VRR (variable refresh rate) support, ensuring a seamless gaming experience. Specifically designed for PS5 and Xbox Series X/S consoles

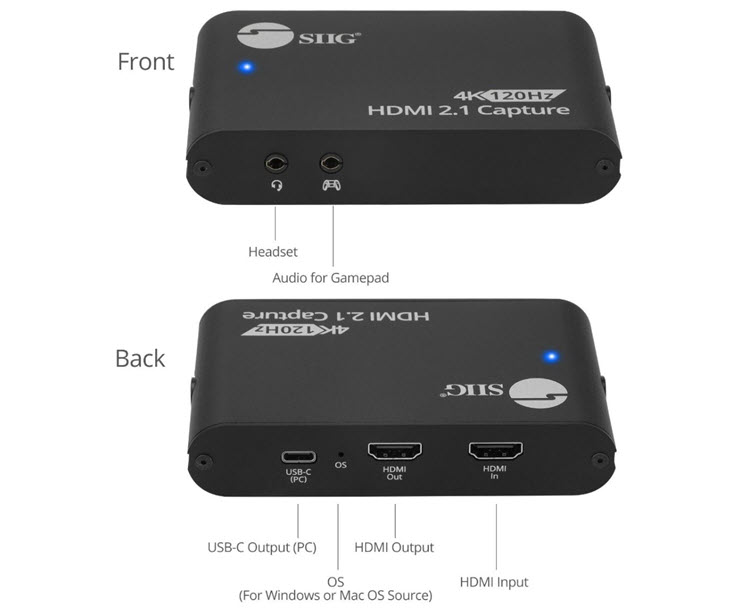

Comes with one HDMI video input port, one HDMI video output port, one USB-C 10Gbps output port (PC), one 4 pole 3.5mm audio jack for headset, one 4 pole 3.5mm audio jack for gamepad.

Auto-detection video formats to ensure plug-play operations, compatible with Windows, MacOS system and work with third party software such as OBS studio, VLC, AMCap, Potplayer , Skype, Zoom, Hangout, Team Viewer

Highlights

• Housing: Aluminum
• Color: Black
• Dimensions: 4.56" (W) x 0.78" (H) x 2.72" (D)
• Connector: 1 x 19-pin HDMI, Type-A, female, Input, 1 x 19-pin HDMI, Type-A, female, Output, 1 x 4-pole 3.5mm jack for Headset, 1 x 4-pole 3.5mm jack for Gamepad, 1 x 24-pin USB-C 10Gbps, female, 1 x 19-pin HDMI, Type-A, female, Input, 1 x 19-pin HDMI, Type-A, female, Output, 1 x 4-pole 3.5mm jack for Headset, 1 x 4-pole 3.5mm jack for Gamepad, 1 x 24-pin USB-C 10Gbps, female
• USB-C bandwidth: Up to 10Gbps (USB-C)
• Video support USB-C: Up to 4K60Hz/ 1080p240Hz/ 2560x1440120Hz/ 4K30Hz HDR
• HDMI bandwidth: Up to FRL 6 (48Gbps)
• Video support HDMI input & Loopout: Up to 4K120Hz / 4K144Hz (4:2:0)
• Audio input: HDMI embedded audio & Mono mic input audio
• Audio support: HDMI output up to 7.1ch, stereo audio up to 2ch
• Recording mode: Software compression
• Recording Video Format: RGB/YUY2/NV12/I420/P010/ MJPEG (USB 10Gbps), MJPEG/YUY2/NV12/I420(USB2.0)
• Software compatibility(not complete list): OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows)¸VLC (OS X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
• Firmware update: Feasible via USB-C port
• Certifications/Standards: FCC, CE, RoHS
• TAA compliant
• System Requirements
• Desktop or Laptop with available USB-C 10Gbps port. HDMI device with HDMI port
• Windows® 10 / 11 (64-bit) or later: USB must support UVC protocol, HDMI must support 4K60Hz HDR - Laptop PC: Intel® Core i7-6xxx equivalent or above / AMD Ryzen 5 3500U or above; Nvidia GeForce GTX 1050Ti or AMD Radeon RX570 or above - Desktop PC: Intel® Core i5-6xxx equivalent or above / AMD Ryzen 5 1xxx or above; Nvidia GeForce GTX1060 or AMD Radeon RX570 or above - 16GB RAM or above.
• MAC OS X® 10.13 or above: iMac: 3.6GHz Quad-Core Intel Core i7 / Radeon Pro 555 (2 GB of VRAM) - MacBook Pro: 2.8GHz Quad-Core Intel Core i7 / Radeon Pro 555X (2 GB GDDR5 Memory) - 16 GB 2400MHz DDR4 Memory or above
• MAC OS max recording 4K30Hz
• Warranty: 3 years limited
