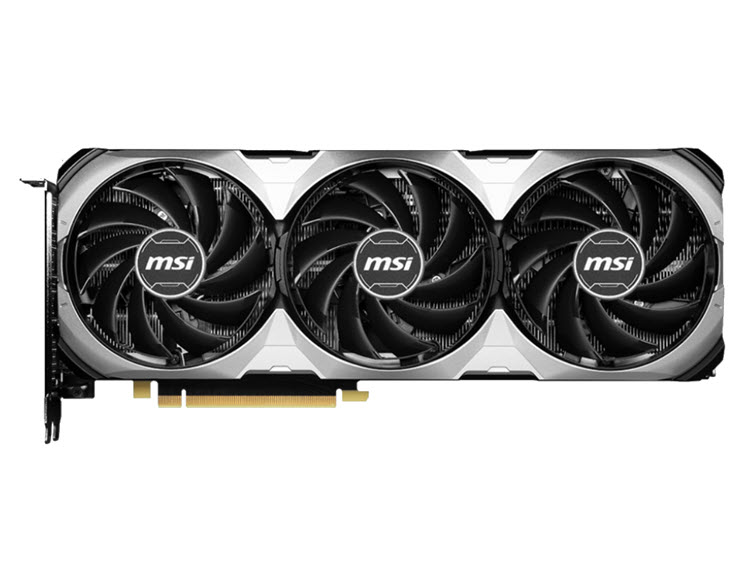

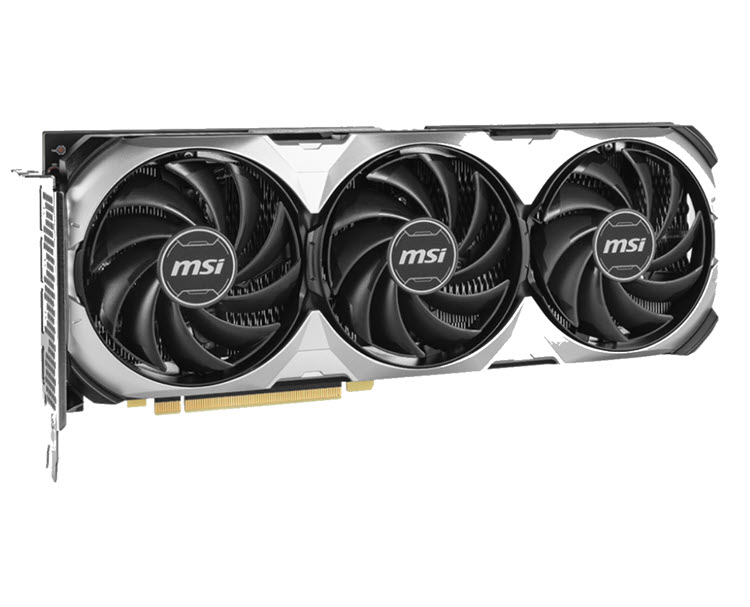

GeForce RTX™ 4070 VENTUS 3X E 12G OC SSF Ready
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Get next-level Al performance on GeForce RTX. Discover the RTX Al advantage. Built for the era of Al, GeForce RTX™ and NVIDIA RTX™ GPUs feature specialized Al Tensor Cores that deliver cutting-edge performance and next-gen capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in Al power on Windows PCs is on RTX.
WITH DLSS 3 - Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more. SFF-Ready Enthusiast GeForce Card
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 and Airflow Control lets VENTUS breeze through any task.
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
Revolutionary Triple-Fan Thermal - Three fans on a huge heatsink ensures a cool and quiet experience.
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
Stay stealthy with Airflow Control which improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling.
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Triple-Fan cooling system.
Highlights
- Model Name: GeForce RTX™ 4070 VENTUS 3X E 12G OC
- Graphics Processing Unit: NVIDIA® GeForce RTX™ 4070
- Interface: PCI Express® Gen 4
- Core Clocks: Extreme Performance: 2520 MHz (MSI Center), Boost: 2505 MHz
- CUDA® CORES: 5888 Units
- Memory: 12 GB GDDR6X
- Memory Speed: 21 Gbps
- Memory Bus: 192-bit

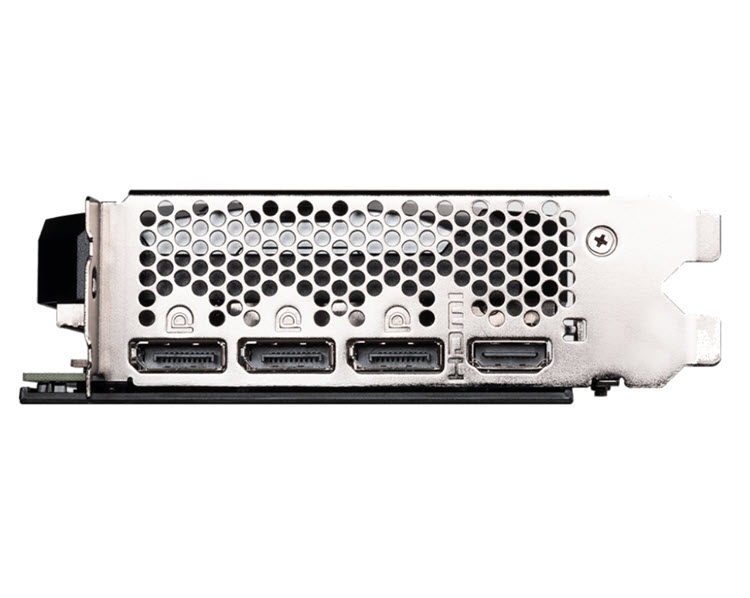

- Output: DisplayPort x 3 (v1.4a), HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
- HDCP Support: Yes
- Power consumption: 200 W
- Recommended PSU: 650 W
- Power connectors: 8-pin x 1
- Card Dimension (mm): 308 x 120 x 43 mm, 12.16 x 4.72 x 1.62 in
- DirectX Version Support: 12 Ultimate
- OpenGL Version Support: 4.6
- Maximum Displays: 4
- G-SYNC® technology: Yes
- Digital Maximum Resolution: 7680 x 4320
- Warranty: 3 Years
