ASRock Intel Arc A770 Graphics Phantom Gaming 16G OC

Phantom Gaming 3X Cooling System For Cool and Silent. Crafted for the best balance between the thermal efficiency and silence by all the details.

Ultra-fit Heatpipe Consolidated to Maximize the Contact. The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Copper Base Maximize GPU Contact Area. With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding Improve Heat Dissipation. Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Nano Thermal Paste Perfect Thermal Teamwork. Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

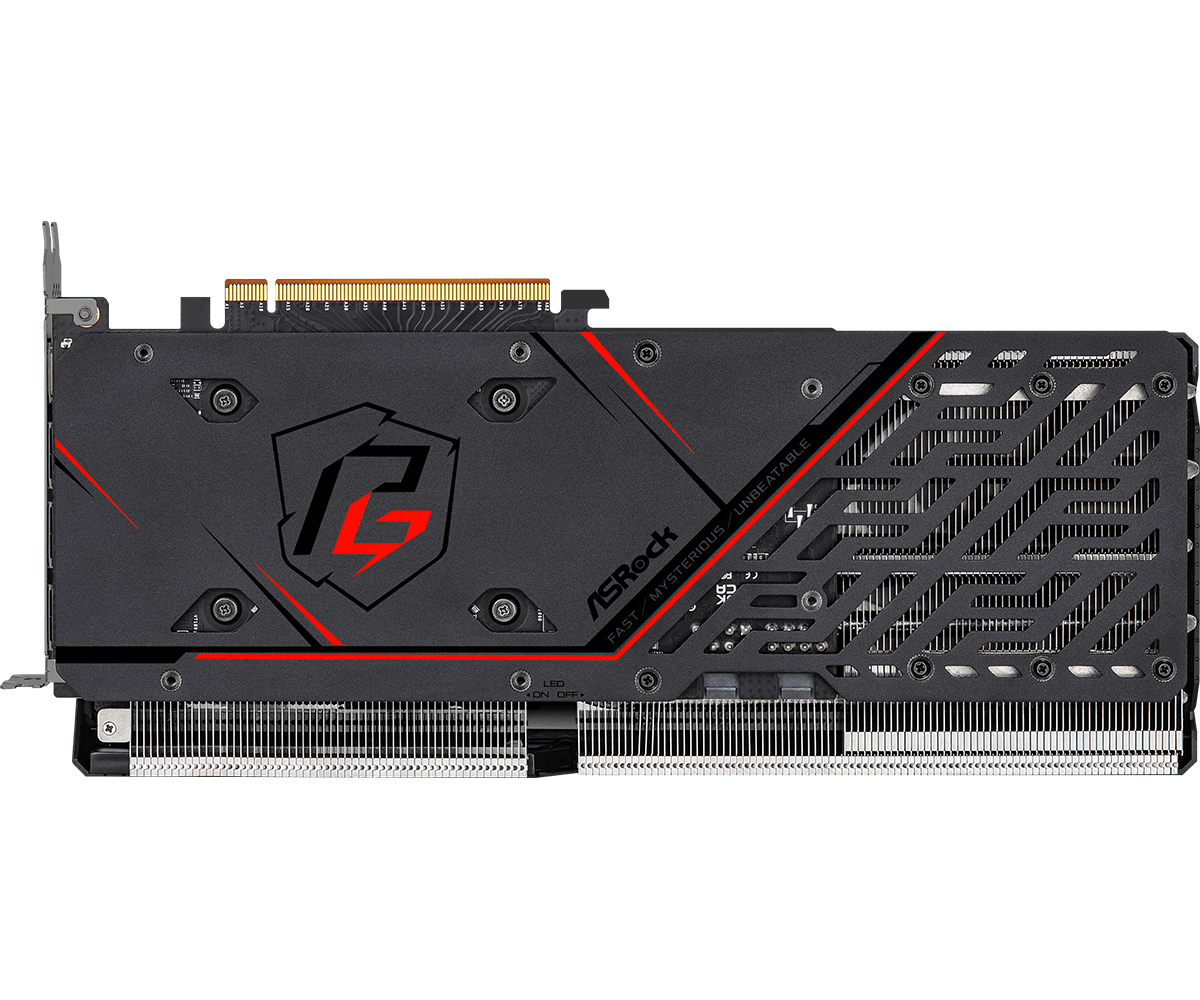

Stylish Metal Backplate Solid, Fancy, Cool. Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.

Compared to traditional chokes, ASRock’s premium 100A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card. High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

Highlights

• Graphics Engine: - Intel® Arc™ A770 Graphics
• Bus Standard: - PCI® Express 4.0 x16
• DirectX: - 12 Ultimate
• OpenGL: - 4.6
• Memory: - 16 GB GDDR6
• Memory Clock: - 17.5 Gbps
• Memory Interface: - 256-bit
• Engine Clock: - 2200 MHz
• Intel® XMX Engines: - 512
• Resolution: - Digital Max Resolution: 7680 x 4320

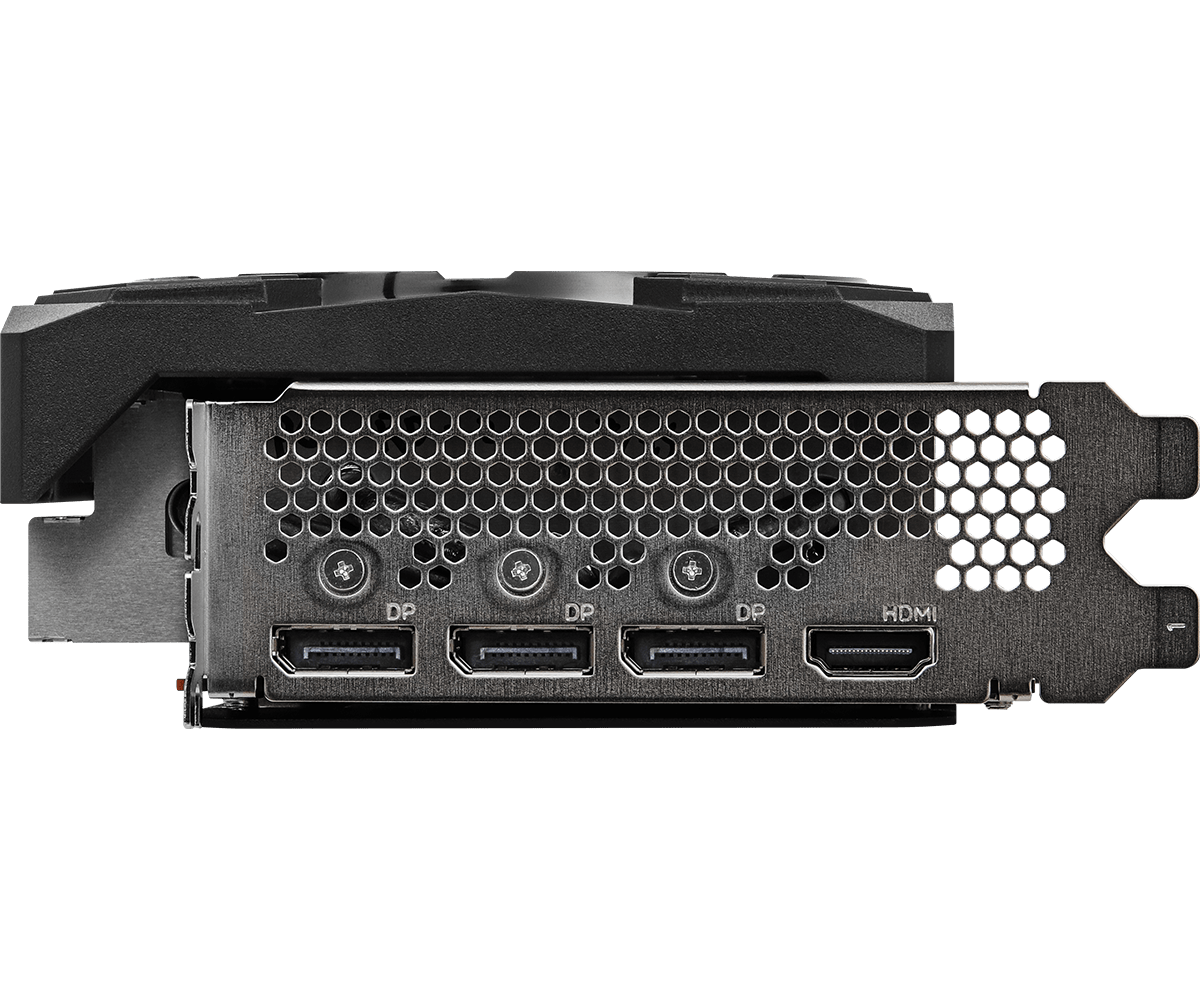

• Interface: - 3 x DisplayPort™ 2.0 up to UHBR 10*, - 1 x HDMI™ 2.1, *Designed for DP 2.0, certification pending VESA CTS Release.
• HDCP: - Yes
• Multi-view: -4
• Recommended PSU: - 700W
• Power Connector: - 2 x 8-pin
• Dimensions: - 305 x 131 x 56 mm, 2.8-slot
