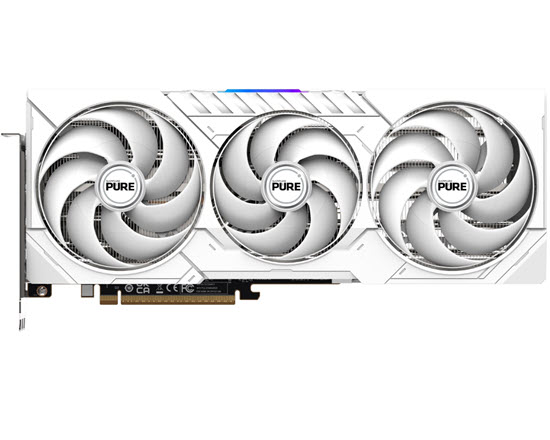

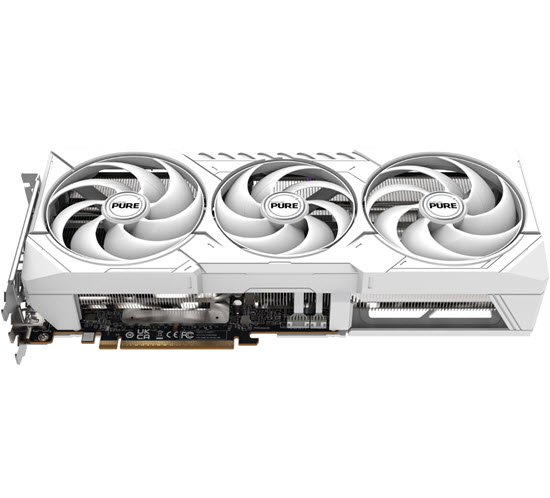

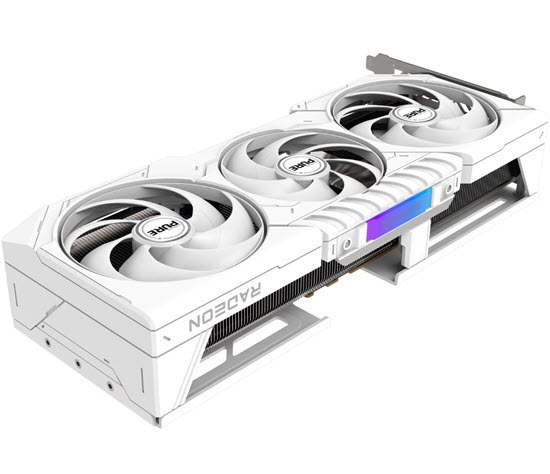

PURE AMD Radeon™ RX 9070 XT (White)

Highlights

SAPPHIRE PURE AMD Radeon™ RX 9000 Series are designed with digital power which provides accurate power control and excellent power efficiency

The Honeywell PTM7950 Thermal Interface Material (TIM) offers a premium solution for high-performance electronics, particularly in the demanding field of graphics processing units (GPUs). The PTM7950 delivers superior thermal conductivity, enhancing the reliability and longevity of graphics cards by its outstanding material characteristics.

The Free Flow cooling design is tailored for axial fan systems, featuring an advanced heatsink fin module that optimizes airflow paths. By reducing turbulence and channeling air efficiently, it maximizes heat dissipation, ensuring consistent performance even under heavy thermal loads.

The latest fan blade design builds upon its predecessor with advancements that reduce air friction, increasing the usable fan RPM range while maintaining low noise levels. This refined design ensures improved airflow, optimized static pressure, and enhanced cooling efficiency for demanding applications.

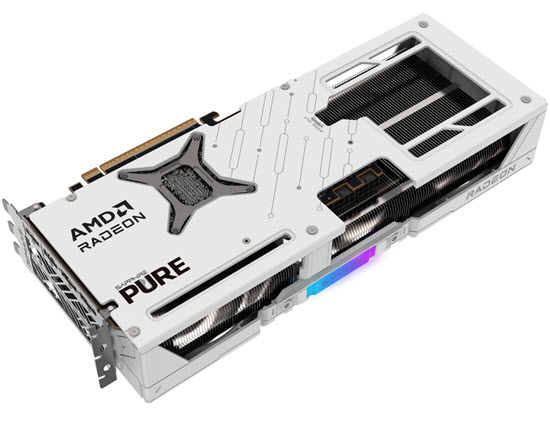

The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.

Integrated Cooling is an advanced thermal management solution engineered to provide efficient heat dissipation across all critical components of a graphics card. This innovative design ensures direct contact with the GPU, memory modules, and VRMs, delivering uniform thermal regulation. By addressing all major heat sources, the Integrated Cooling Module helps maintain stable operating temperatures, improving overall system performance and reliability. Ideal for demanding workloads such as gaming, content creation, and overclocking, it ensures optimal thermal efficiency under sustained use.

The L-Shaped Graphics Card Holder is a versatile solution designed to secure heavy GPUs, prevent sagging, and simplify removal of the graphics card from the PCIe slot during upgrades or maintenance. Crafted from durable materials with a sleek design, it ensures stability, longevity, and seamless integration into any modern PC build. Use the rubber tip of the bracket to help conduct the extraction of the graphics card easily and safely when removing for cleaning and maintenance.

The newly integrated ARGB LED SAPPHIRE Logo grants customization opportunities for a more personalized aesthetic for the build integration of the graphics card. Simply use the Glow! Feature in the SAPPHIRE TriXX Software to create the ultimate lighting solution.

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

The mechanical design of the graphics card features a robust, box-like frame that ensures exceptional build quality and durability. This solid construction provides a protective enclosure for all internal components, reducing the risk of damage during handling or installation. This rigid frame offers added stability and strength, making it highly resistant to accidental impacts or pressure, ensuring that the delicate components, such as the GPU, memory, and VRMs, remain secure. With this design, users can confidently handle the card without worrying about compromising its integrity or performance.

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

The GPU is mounted on to the high-density 12 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.

Enable the external synchronization of RGB LEDs between the graphics card and the motherboard using the 3-pin header in the tail. Gamers can then choose if the graphics card performs the RGB LED effects independently or if the motherboard acquires control.

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

Specifications

• GPU - AMD Radeon™ RX 9070 XT - AMD RDNA™ 4 Architecture
• Engine Clock - Game Clock: Up to 2460 MHz - Boost Clock: Up to 3010 MHz
• Stream Processors - 4096
• Compute Units - 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
• Infinity Cache - 64 MB
• Ray Accelerators - 64
• AI Accelerator - 128
• Memory Size - 16 GB GDDR6
• Memory Bus - 256-bit
• Memory Clock - 20 Gbps Effective
• Displays - Maximum 4 Displays
• Resolution - HDMI®: 7680 × 4320 - DisplayPort™ 2.1a: 7680 × 4320
• Interface - PCI-Express 5.0 x16
• Output - 2 x HDMI® - 2 x DisplayPort™ 2.1a
• BIOS Support - UEFI
• Game Index - 4K
• Sapphire Features - Honeywell PTM7950 Thermal Interface Material (TIM) - AeroCurve Fan Blade - Free Flow - FrameDefense - Integrated Cooling Module - Tri-X Cooling Technology - High TG Copper PCB - Optimized Composite Heatpipes - Metal Backplate - ARGB SAPPHIRE Logo - Two-Ball Bearing Fans - 14-Phase Digital Power Design - Fuse Protection - Intelligent Fan Control - Precision Fan Control - TriXX Supported - Performance vs. Efficiency Quicksets - Glow! - TriXX Boost - External RGB LED MB Synchronization
• AMD Features - AMD RDNA™ 4 Architecture - 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) - AMD HYPR-RX with AFMF 2 - AMD FidelityFX™ Super Resolution 4 with AI Upscaling - DisplayPort™ 2.1a - AMD Radiance Display™ Engine - AMD Fluid Motion Frames 2 technology - AMD Radeon™ Anti-Lag 2 technology - AV1 Encode/Decode - AMD FidelityFX™ technologies - Microsoft® DirectX® 12 Ultimate - AMD Noise Suppression - AMD Freesync™ technology - 16 GB of GDDR6 on 256-bit Memory Bus - AMD smart technologies - AMD Software: Adrenalin Edition™ application
• Cooler Type - Tri-X Cooling - AeroCurve Fan Blade - Free Flow - Integrated Cooling Module - High TG Copper PCB - Optimized Composite Heatpipes - Two-Ball Bearing
• Form Factor - 3 slot, ATX - Dimension: 320(L) X 120.25(W) X 61.6 (H)mm
• Power Consumption - 317W Typical Board Power
• System Requirement - Minimum 750 Watt Power Supply - 2 x 8-pin Power Connector. PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8 GB of system memory. 16 GB recommended.
• OS - Linux®, Windows® 10, and Windows 11. 64-bit operating system required
• Accessories Bundled - L-Shape Support Bracket - 3pin 5V ARGB Cable
