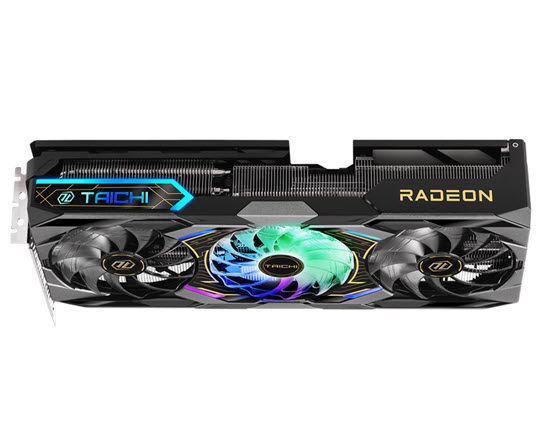

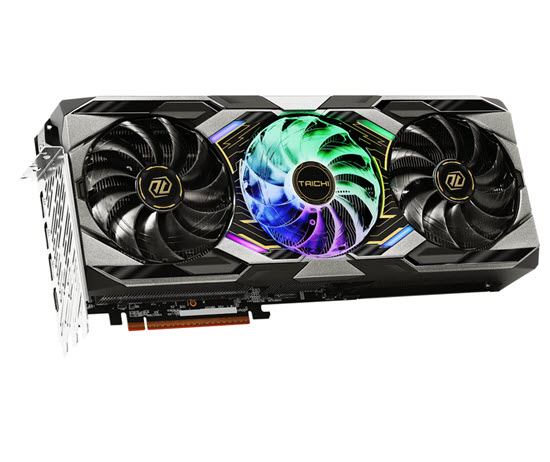

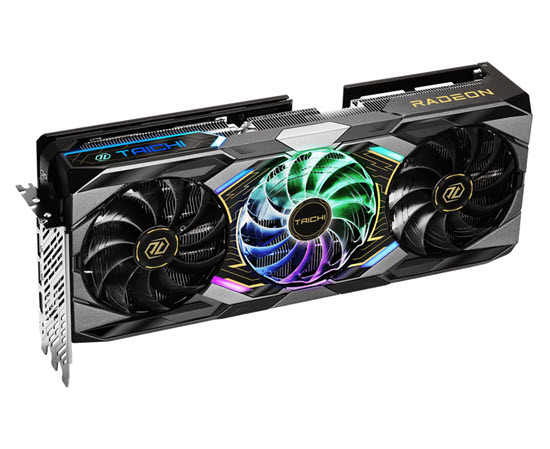

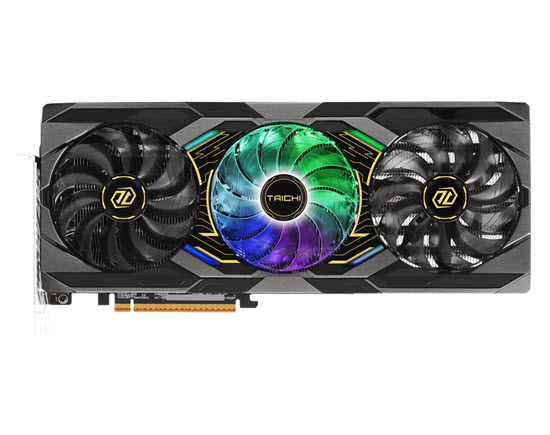

AMD Radeon™ RX 9070 XT Taichi 16GB OC

Highlights

AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology3 to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support and up to 16GB of video memory to experience AAA games in all their visual glory now and for years to come.

Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™

Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX6 in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.

Reverse Spin - The center fan spins reversely to lower turbulence and enhance air dispersion through the heatsink.

Taichi 3X Cooling System - Crafted for the best balance between the thermal efficiency and silence by all the details improved.

Striped Ring Fan Designed For Enhanced Airflow - ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

0dB Silent Cooling - Spin For Cooling, Stop For Silence. The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Air Deflecting Fin Guide Airflow to Go Through Regularly & Quickly. Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base Maximize GPU Contact Area. With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding Improve Heat Dissipation. Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

You can switch LED on or off depends on the scenarios or your need. With the ARGB pin-header, it can connect ARGB strips/devices to make the lighting effects more rich and vivid.

Featuring 16 power phases with SPS components to raise maximum current to GPU and memory to offer enhanced performance.

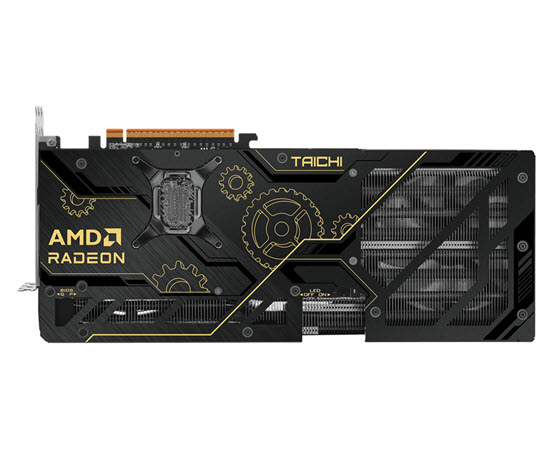

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Dual BIOS design allows users choose preferred setting by switching between the P(Performance) BIOS and Q(Quiet) BIOS.

Specifications

• Graphics Engine - AMD Radeon™ RX 9070 XT
• Bus Standard - PCI® Express5.0 x16 up to 32GT/s
• DirectX - 12 Ultimate
• OpenGL - 4.6
• Memory - 16 GB GDDR6
• Memory Clock - 20 Gbps
• Memory Interface - 256-bit
• Engine Clock - Game Clock: 2570 MHz - Boost Clock: Up to 3100 MHz
• Stream Processors - 4096
• Resolution - Digital Max Resolution: 7680 x 4320
• Interface - 1 x HDMI™ 2.1b - 3 x DisplayPort™ 2.1a
• HDCP - Yes
• Multi-view - 4
• Recommended PSU - 850W
• Power Connector - 1 x 12V-2x6-pin
• Dimensions - 330 x 140 x 61mm, 3-slot
• Accessories - 1 x Quick Installation Guide, - 1 x 16Pin to 3x8 Pin Power Cable, - 1 x Graphics Card Stand
