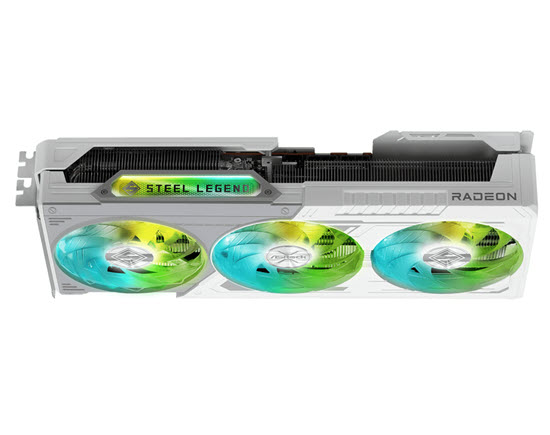

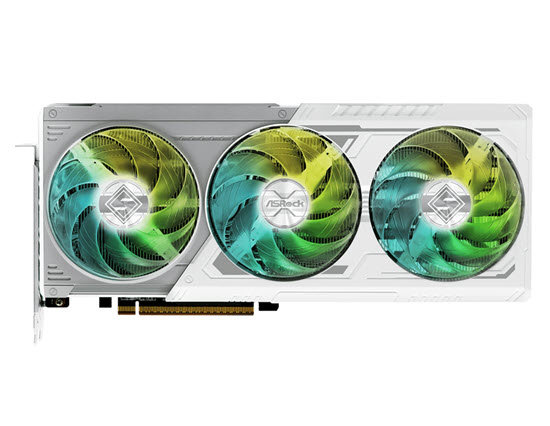

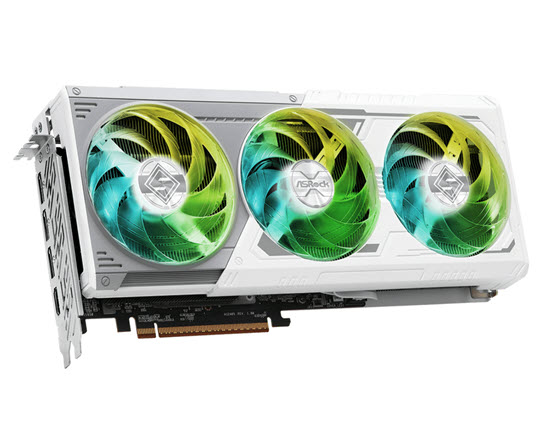

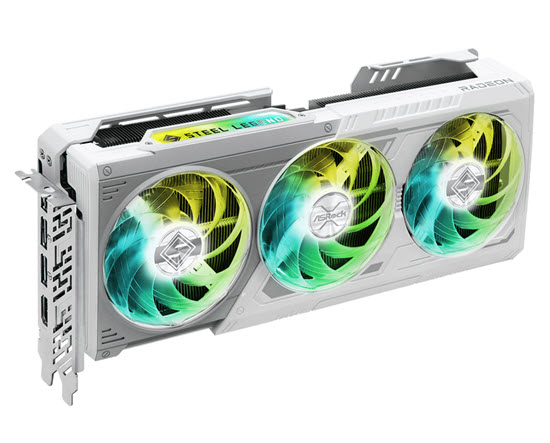

AMD Radeon™ RX 9070 XT Steel Legend 16GB

Highlights

Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon RX 9000 Series Graphics Cards are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming

AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support and up to 16GB of video memory to experience AAA games in all their visual glory now and for years to come.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

LED Switch & ARGB Header - LED Switch - You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices. ARGB Header - With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.

Triple fan design helps to optimize system cooling to reduce the operating temperature.

Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.

Reinforced Metal Frame - Be solid. No sag. Enhances the structure to prevent the PCB from being bent.

ASRock’s all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Air Deflecting Fin - Guide Airflow to Go Through Regularly & Quickly. Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base - Maximize GPU Contact Area. With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding - Improves Heat Dissipation. Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD

Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.

Specifications

• Graphics Engine - AMD Radeon™ RX 9070 XT
• Bus Standard - PCI® Express 5.0 x16
• DirectX - 12 Ultimate
• OpenGL - 4.6
• Memory - 16 GB GDDR6
• Memory Clock - 20 Gbps
• Memory Interface - 256-bit
• Engine Clock - Game Clock: 2400 MHz - Boost Clock: Up to 2970 MHz
• Stream Processors - 4096
• Resolution - Digital Max Resolution: 7680 x 4320
• Interface - - 3x DisplayPort 2.1a - 1x HDMI 2.1b
• HDCP - Yes
• Multi-view - 4
• Recommended PSU - 800W
• Power Connector - 2x 8-pin
• Dimensions - 298 x 131 x 58 mm, 2.9-slot
• Accessories - 1x Quick Installation Guide
