AMD Radeon™ RX 9070 Challenger 16GB

Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon RX 9000 Series Graphics Cards are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming

Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.

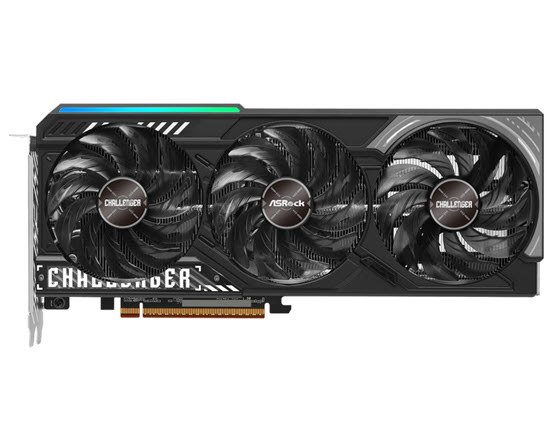

Triple fan design helps to optimize system cooling to reduce the operating temperature. ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side. The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

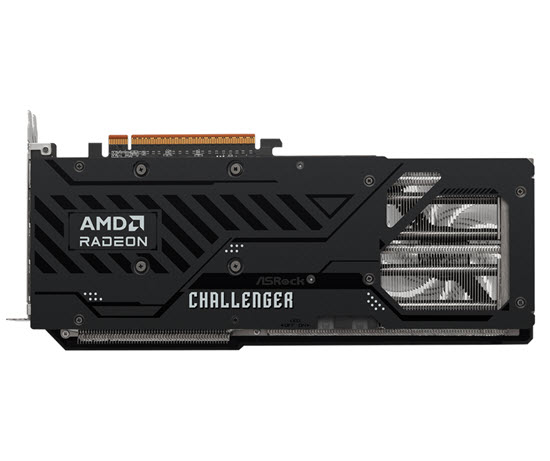

With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.

Multiple-color LED Indicator embellishes the graphics card to make it more beautiful. You can switch LED on or off depends on the scenarios or your need.

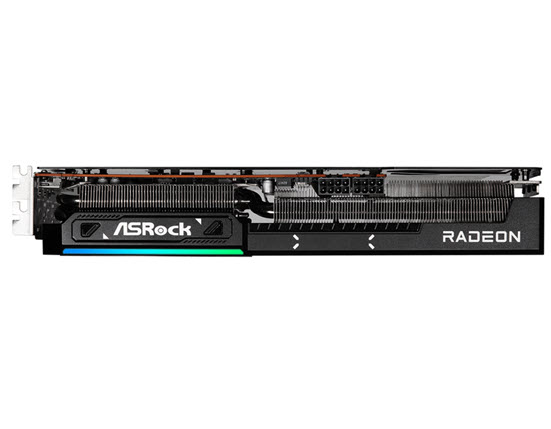

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation. With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively. Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Highlights

• Graphics Engine - AMD Radeon™ RX 9070
• Bus Standard - PCI® Express5.0 x16
• DirectX - 12 Ultimate
• OpenGL - 4.6
• Memory - GDDR6 16 GB
• Memory Clock - 20Gbps
• Memory Interface - 256-bit
• Engine Clock - Game Clock: 2070 MHz, Boost Clock: Up to 2520 MHz
• Stream Processors - 3584
• Compute Units - 56
• Resolution - Digital Max Resolution: 7680 x 4320
• Interface - 1 x HDMI™ 2.1b, 3 x DisplayPort™ 2.1a
• HDCP - Yes
• Multi-view - 4
• Recommended PSU - 700W
• Power Connector - 2 x 8-pin
• Dimensions - 290 x 123 x 51mm
• Accessories - 1 x Quick Installation Guide
