Sparkle Intel Arc B570 Guardian OC Graphics Card, 2.2 Slot, PCIe4.0, 10GB GDDR6, Torn Cooling 2.0, Axial Fan, Breathing Light
Product Type:
Video Cards
Type Detail:
PCI Express - Other Chipset
Manufacturer:
Intel
Manufacturer #:
SB570G-10GOC
Part Status:
Special Order Only
Milwaukee PC SKU:
425942
Price:
$309.99



Arc™ B570 GUARDIAN OC Graphics Card

Highlights

The SPARKLE Intel® Arc™ B570 GUARDIAN OC Graphics Card, offers high-resolution gaming with Intel XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground. GUARDIAN series equipped TORN 2.0 Cooling with double customized AXL fans, 2.2-slot design and full-metal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.

Specifications

  • GPU: Intel® Arc™ B570
  • Memory Size: 10 GB GDDR6
  • Graphics Memory Interface: 160-bit
  • Graphics Memory Bandwidth: 380 GB/s
  • Boost Clock: 2660 MHz
  • Xe-Core: 18
  • Ray Tracing Units: 18
  • Intel® XMX Engines: 144
  • GPU Peak Tops (Int8): 203
  • Max Res.: Up to 8K at 120Hz HDR with DSC
  • PCI Express Configurations: PCI Express 4.0 x8
  • TBP: 170 Watt
  • Lighting: Blue Breathing Light

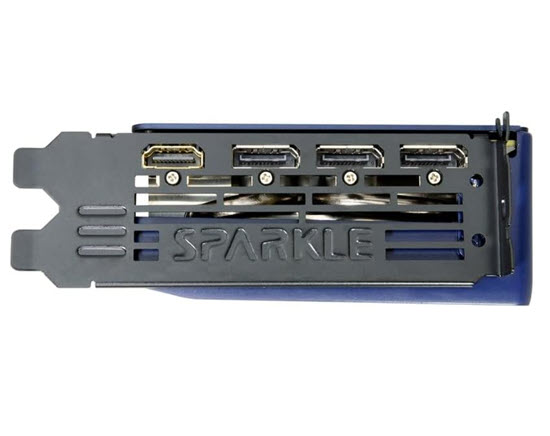

  • Output: 1 x HDMI 2.1 (Max): 7680 x 4320 @ 120Hz - 3 x DisplayPort 2.1 (Max): 7680 x 4320 @ 60Hz
  • Dimension: 242 x 105 x 44mm - Width: 2.2-Slot - Weight: 796 g
  • KEY FEATURES - TORN Cooling 2.0 - Metal Backplate, Pre-Installed - Ray Tracing - Variable Rate Shading (VSR) - DirectX 12 Ultimate - Vulkan 1.3 - OpenGL 4.6 - OpenCL 3.0 - Adaptive Sync - AV1 Encode / Decode - VP9 Bitstream & Decoding - Intel Deep Link Hyper Compute - Intel Deep Link Hyper Encode - Intel Deep Link Stream Assist.
  • REQUIREMENTS - 10th Gen Intel® Core™ / AMD Ryzen™ 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory - PCI-Express® compliant MB with one x16 PCIe slot - 600W or greater PSU with 1x 8-pin PCIe power connector - 8GB of system memory minimum, 16GB recommended - Windows® 11 64-bit or Windows® 10 64-bit
