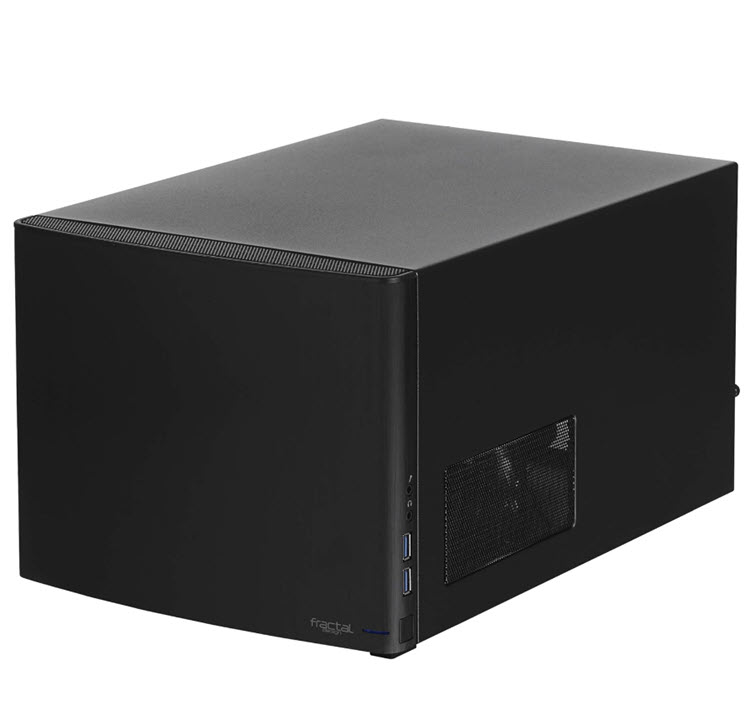

Fractal Design Node 304 Black - ITX, supports ATX PS
Product Type:
Cases
Type Detail:
Other Cases
Manufacturer:
Fractal Design
Manufacturer #:
FD-CA-NODE-304-BL
Part Status:
Special Order Only
Milwaukee PC SKU:
56887
Price:
$109.99

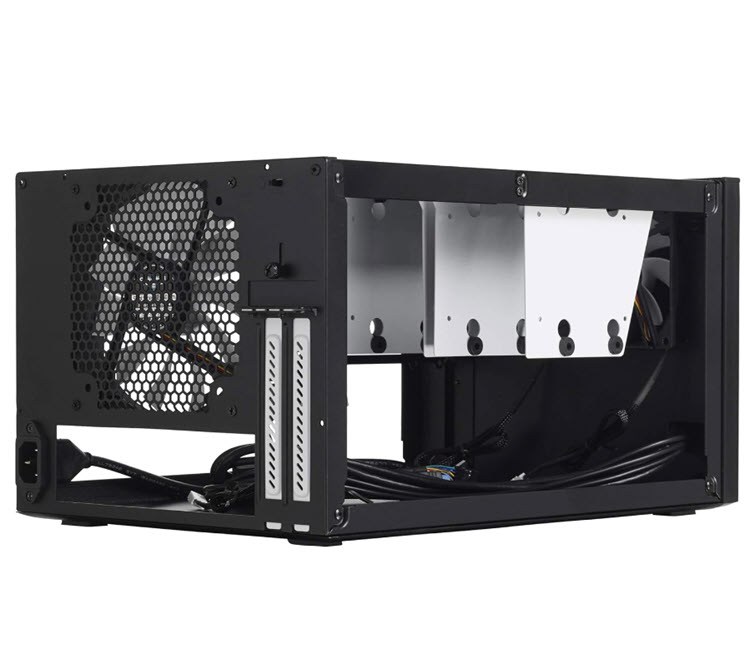

The Node 304 is the latest compact computer chassis from Fractal Design featuring a unique modular interior for outstanding configurability. The Node 304 accommodates up to six hard drives and/or extended length graphics cards. Unique new modular mounting system that accommodates up to 6 hard drives (either 3.5" HDD or 2.5" SSD)

Quick Tech Specs

Form Factor: Mini ITX
Type: Small Form Factor
Brand: Fractal Design
P.Supply Incl.: NONE
P.Supply Wattage: NONE
Expantion Slots: 2 Slots
External 2.5" Bays: NONE
External 5.25" Bays: NONE
External 3.5" Bays: NONE
Internal 3.5" Bays: NONE
Internal 2.5" Bays: NONE
Internal 3.5"/2.5" Bays: 6 Bays
Front USB 2.0 Ports: NONE
Front USB 3.+ Ports: 2 Ports
Material: Steel
Window: NONE
80mm Fans: NONE
90/92mm Fans: 2 Fans
120mm Fans: NONE
140mm Fans: 1 Fan
200+mm Fans: NONE
Warranty: 2 Years


Fractal Design Node 304 Black - ITX, supports ATX PS

The Node 304 is the latest compact computer chassis from Fractal Design featuring a unique modular interior for outstanding configurability. The Node 304 accommodates up to six hard drives and/or extended length graphics cards. Unique new modular mounting system that accommodates up to 6 hard drives (either 3.5" HDD or 2.5" SSD)


Highlights

  • Motherboard compatibility: Mini ITX, Mini DTX (motherboards with SATA ports that are angled 90 degrees may conflict with installation in the case)
  • Expansion slots: 2
  • 3.5" / 2.5" HDD / SSD positions: 6
  • Front ports: 2x USB 3.0, 1x 3.5 mm audio in (microphone), 1x 3.5mm audio out (headphone), Power button with LED, HDD LED
  • Total fan mounts: 3
  • Front fan: 2x 92 mm Silent Series R2 hydraulic bearing fans @ 1300 RPM (compatible with 80 mm fans) – included
  • Rear fan: 1x 140 mm Silent Series R2 hydraulic bearing fan, 1,000 RPM speed (compatible with 120 mm fans) – included
  • Dust filters: Front fans, PSU, GPU
  • Power supply type: ATX (up to 160 mm in length)
  • GPU max length: 310 mm (when 2 HDD slots are removed; graphics cards longer than 170 mm will conflict with PSUs longer than 160 mm)
  • CPU cooler max height: 165 mm
  • Max GPU thickness: 45 mm
  • Warranty: 2 Years
