Terra Jade

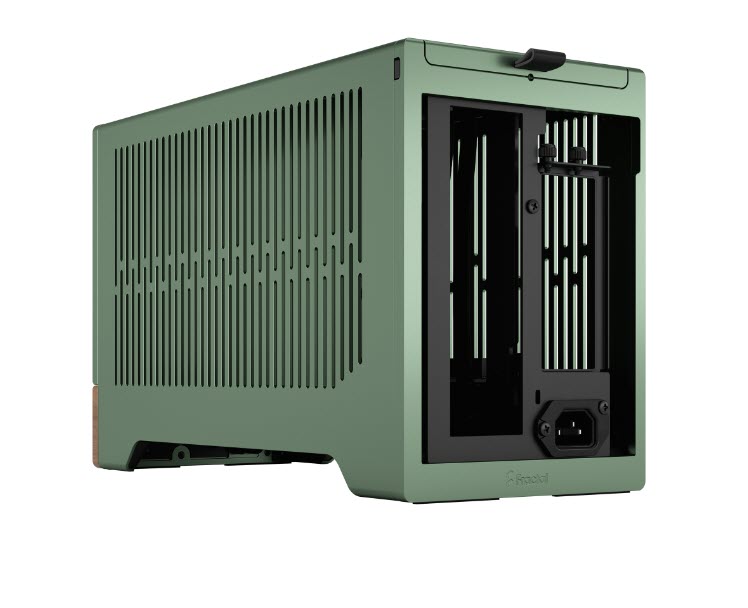

Terra is a PC case designed and engineered to reshape the small form factor gaming experience. Inspired by the homes of modern gamers, Terra incorporates boutique design features such as thick panels cut from anodized aluminum, CNC-milled details and FSC-certified solid walnut. Inside, it includes a PCIe 4.0 riser cable and features a stepless slidable central wall for build flexibility, providing space for a powerful GPU up to 322 mm in length.

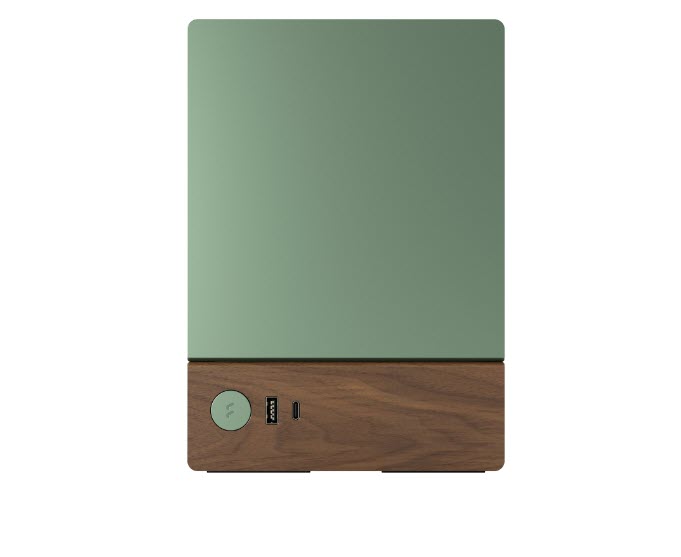

The solid walnut front panel features an aluminum power button and two USB ports for connecting devices, including one USB Type-C 20Gbps

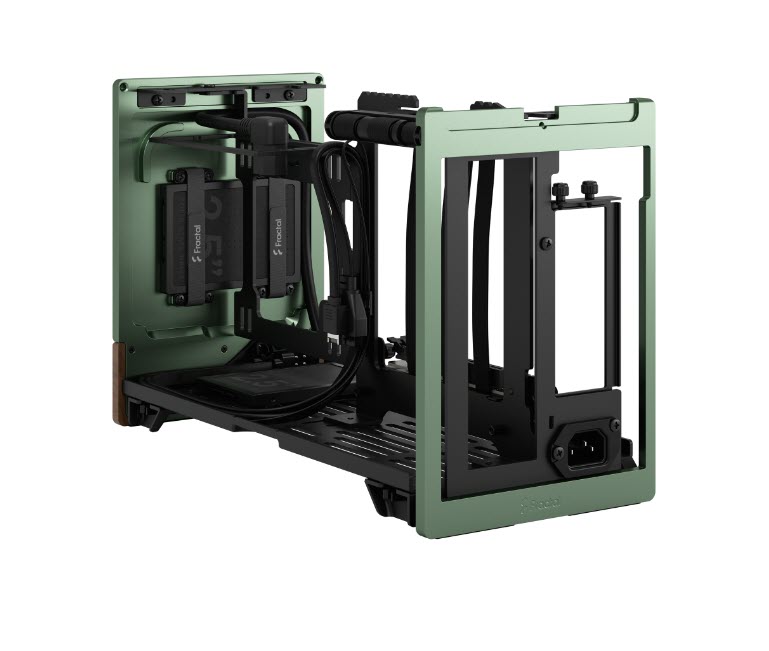

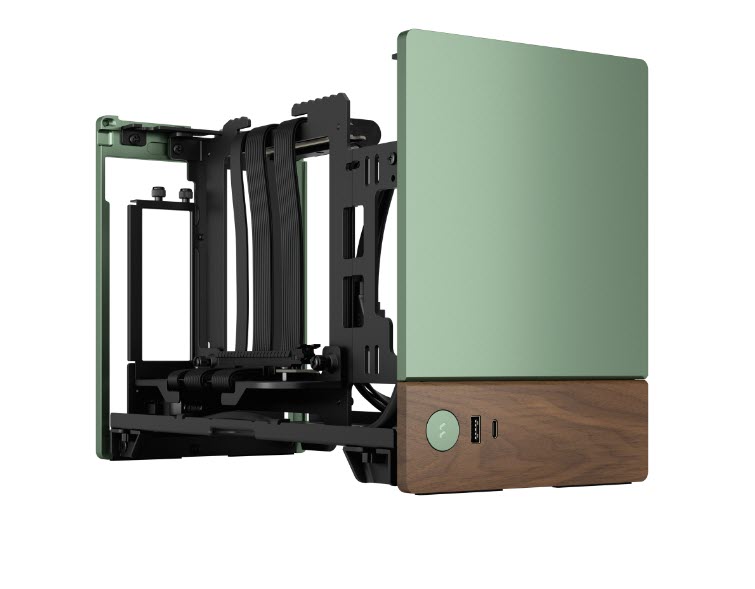

Slide open the top with an integrated tab and lift open the fully removable side panels for easy access to your components
Highlights
- Motherboard compatibility: mITX
- Expansion slots: 3 (Max GPU Mode), 2 (Max CPU-Cooler height mode)
- Dedicated 2.5" drive mounts: 2 (included)
- Front interface: 1 x USB Type-C 20Gbps (USB 3.2 Gen 2x2), 1 x USB Type-A 5Gbps (USB 3.0), Power Button
- Bottom fan: 1 x 120 mm
- Power supply type: SFX-L/ SFX
- PSU max length: 130 mm
- GPU max length: 322 mm
- Side radiator: 1x 120mm (121 mm wide if max 200 mm GPU and no SSDs)
- GPU max width (if GPU height is lower than 131 mm):
72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)
- GPU max width (if GPU height 131-145mm):
62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)
- GPU max height: 145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)
- *CPU cooler max height: 48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler)
- *Additional comment - Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info.
- Tool-less push-to-lock: Both side panels and top panel (can also be locked with screws)
- Warranty: 2 Years
