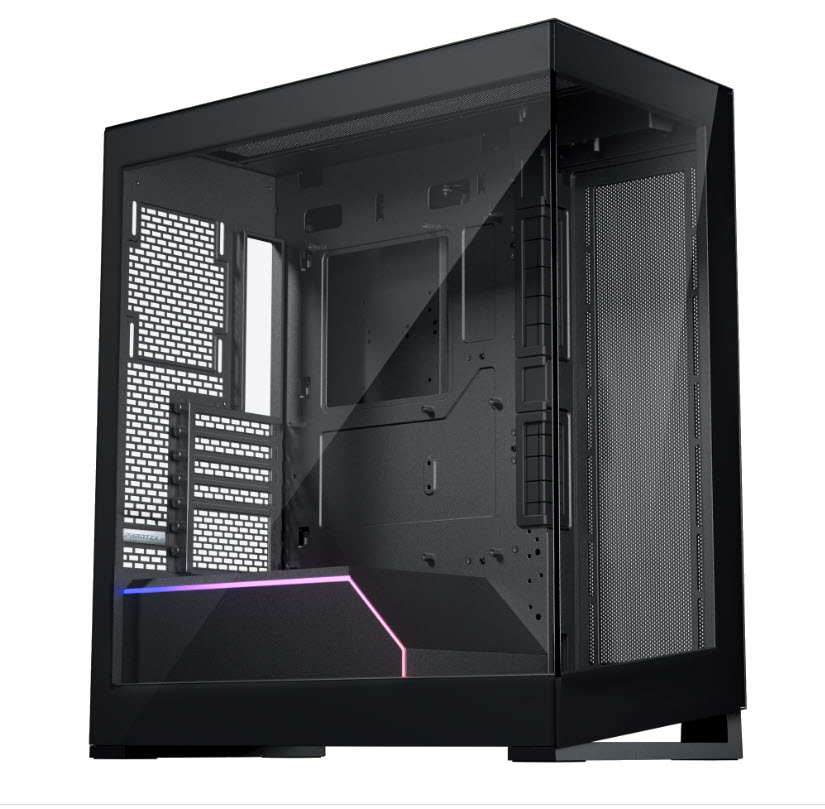

Phanteks NV5

Meet the NV5 mid-tower chassis, featuring a stunning near-seamless glass view and support for 8 x 120 mm fans and dedicated space for a 360 radiator in the top and side for optimal cooling. With a dedicated bottom fan for enhanced GPU cooling and spacious interior to accommodate modern GPUs and cables, the NV5 is designed to excel.

Create a picture-perfect PC with a seamless glass design.

Increased chassis width to support wider GPUs and PCIe cables.

Premium build quality throughout the strong and reinforced outer frame.

High Airflow Performance with fine mesh, dust filter and 8x 120mm fan positions.

Ready for ultimate water-cooling configurations with dual 360 radiator support.

Integrated D-RGB lighting in the PSU Cover with built-in D-RGB Controller that works out of the box.

Highlights

• Form Factor: Mid-Tower
• TG: Front and Side Tempered Glass
• Motherboard Support: ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm without GPU Support Bracket)
• Expansion Slots: 7 - Vertical GPU support: Yes, with optional bracket PH-VGPUKT4.0_03
• I/O: 2 x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color
• Connectors: Power Switch, Reset Switch, D-RGB Expansion, D-RGB Motherboard, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E
• 2.5" Drive Bays: 4
• 3.5" Drive Bays: 3
• Fans: Side: 3 x 120mm, Top: 3 x 120mm, Rear: 1 x 120mm, Bottom: 1 x 120mm
• Radiator: Side: Up to 360 (120mm radiator), Top: Up to 360 (120mm radiator), Rear: Up to 120 (120mm radiator)
• Max GPU Length: Graphic card length: 440 mm, Graphic card width: 170 mm
• Max CPU Cooler Height: 180mm
• Max PSU Length: 230mm
• Weight: 24.9 lbs.
• In the Box: NV5 Chassis: 1 x D-RGB Controller, 1 x Storage Door, 1 x GPU Support Bracket, Accessory Box: 6 x Zip ties, 22 x MB/SSD Screw, 4 x Thumb Screw, 12 x HDD+Case Screw, 1 x Standoff Removal Tool, 1 x MB stand-off, 4 x PSU Screw
• Warranty: 5 Years limited
