DARK BASE PRO 901

Whether you prefer a virtually inaudible or an extremely performant case: Dark Base Pro 901 is the perfect choice. Dark Base Pro 901 features a silence-oriented and performance-optimized solution for the top and the front. All panels are included, and a user-friendly mounting makes switching a breeze.

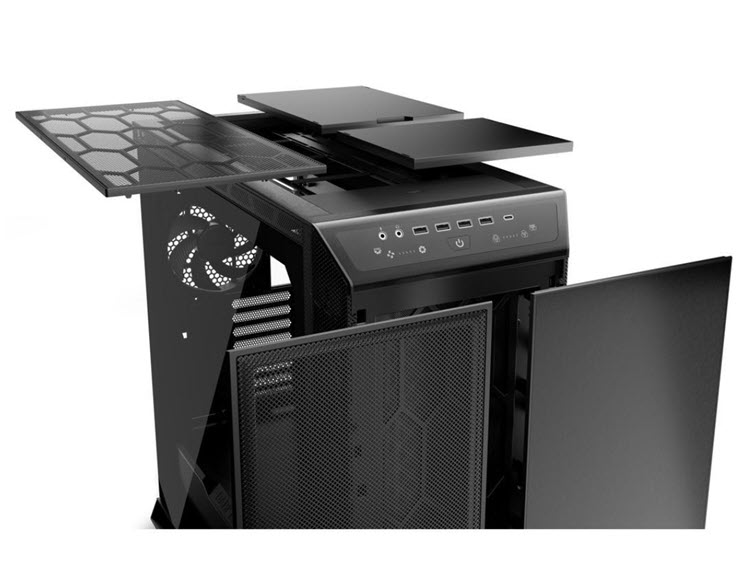

Dark Base Pro 901 offers all functions enthusiasts could wish for in a high-end case. Among them is a detachable top and front bracket with included fan hub and pogo pin connector for a comfortable installation of radiators and fans. Even an inverted layout can be done easily thanks to an intuitive rail system. Numerous cleverly integrated solutions make handling extremely easy. Dark Base Pro 901 can be deployed without the hassle of additional screws and small parts, creating the optimal case for any build.

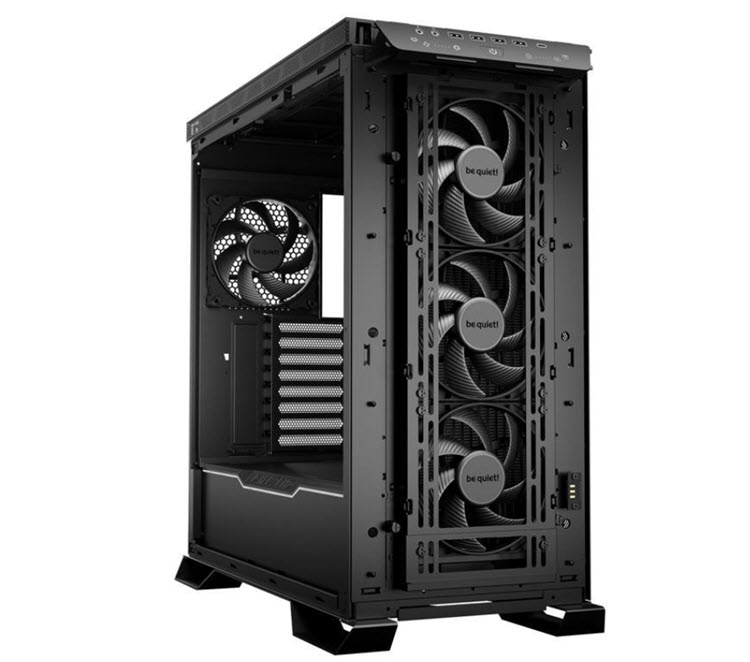

3 pre-installed fans for maximum airflow - Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 140mm a fan that makes no compromises between virtually inaudible operation and high performance. Its extraordinary air pressure significantly increases the cooling performance of Dark Base Pro 901.

With its remarkably large dimensions, Dark Base Pro 901 sets no limits on creativity. The front can fit a radiator of up to 420mm and additional fans can be installed throughout the case, even on the side panel.

The VGA holder of Dark Base Pro 901 is very versatile and prevents GPU sag even with heavy graphics cards. 2 cable bars, one located inside the VGA holder and the other next to the motherboard tray, hide the cables inside the case. No matter how big or numerous the components built in Dark Base Pro 901 may be; with such clever features the result always makes a good impression.

Dark Base Pro 901 features ARGB lighting on the front and the PSU shroud: The lit-up areas are chosen consciously to ensure the case remains elegant with subtle illumination. The light and fan settings can be conveniently controlled via touch-sensitive buttons on the I/O panel. A wireless charger for Qi enabled devices perfectly rounds up Dark Base Pro 901.

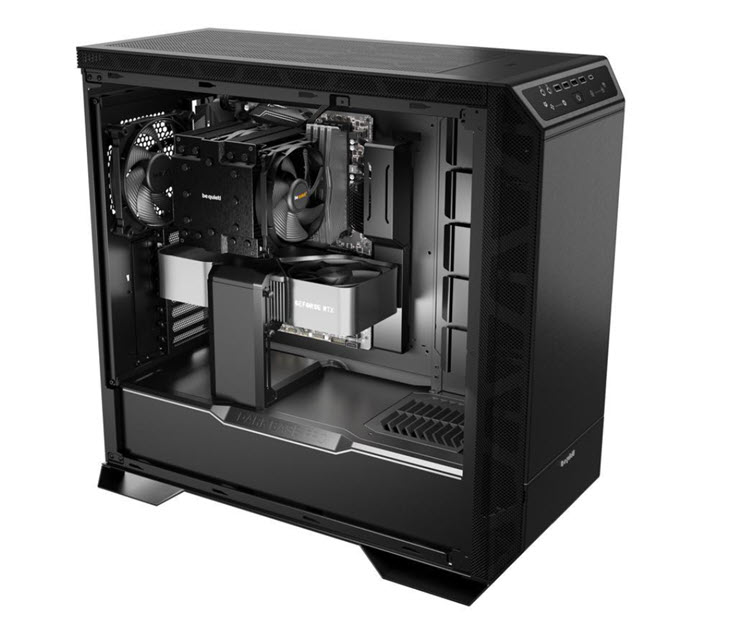

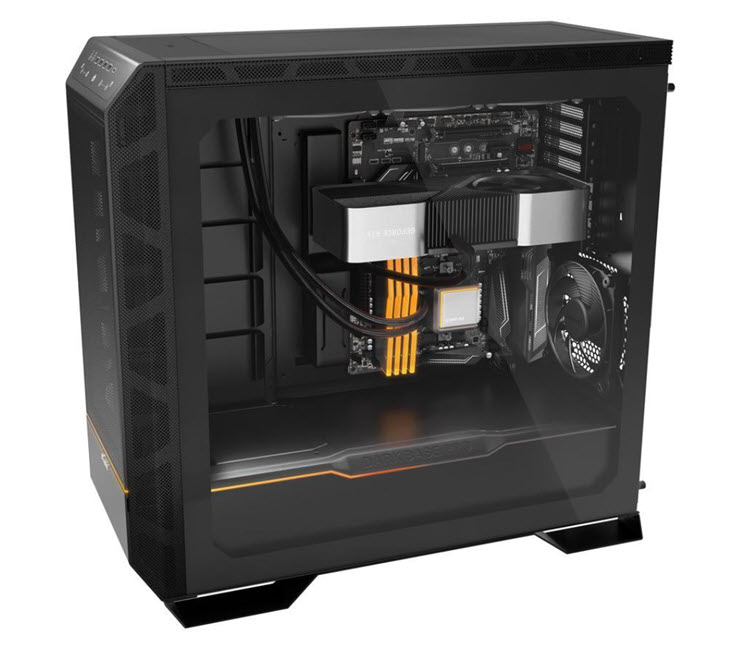

The high-quality, fully-windowed side panel offers a perfect view of the components inside your case. The window is made of tinted and tempered glass with black painted edges.

Highlights

• Form Factor: Full Tower (82.69l)
• PSU form factor: ATX PS/2
• Motherboard compatibility: E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX
• Expansion slots: 8
• I/O Panel: 1 x USB 3.2 Gen. 2 Type C, 4 x USB 3.2 Type A, HD Audio I/O - Mic + Audio, Qi charger / Quick Charging Option (W): 15 W
• Drives: External 1 x 5.25", 2 x 3.5", 6 x 2.5" - Max 7 x 3.5", 16 x 2.5"
• Included Fans: Front 2 x Silent Wings 4 140mm PWM, Rear 1 x Silent Wings 4 140mm PWM
• Dimensions (L x W x H), (mm): Front: 140 x 140 x 25 / Rear: 140 x 140 x 25
• Fan speed at 100% PWM / 12V (rpm): 1900
• Airflow at 100% PWM / 12V (CFM / m3/h): 78.4 / 133.2
• Air Pressure at 100% PWM / 12V (mm H2O): 2.36
• Noise level at 100% PWM / 12V (dB(A)): 29.3
• Voltage range (V DC): 12
• Input power (W): 4.8
• Input current (A): 0.4
• Connector: 4-pin PWM
• Lifespan (h / 25°C): 300,000
• Fan controller: 5-step fan controller with 2 x PWM Hubs
• Maximum fans: Top (mm) - 3 x 140 / 3 x 120, Front (mm) - 3 x 140 / 3 x 120, Side (mm) - 3 x 120, Rear (mm) - 1 x 140 / 1 x 120, Bottom (mm) - 1 x 140 / 1 x 120
• Optional radiator installation: Top (mm) - 120 / 240 / 360, Front (mm) - 120 / 140 / 240 / 280 / 360 / 420, Side (mm) - 120 / 240 / 360, Rear (mm) - 120 / 140
• PSU compatibility: Maximum dimensions excl. bottom fan (mm) - 325, Maximum dimensions incl. bottom fan (mm) - 325
• Graphics card: HDD cage (in height of graphics card) installed (mm) - 350 / 370, HDD cage (in height of graphics card) removed (mm) - 495, Maximum PCIe slots with vertical graphics card (pcs.) - 8
• Max.construction height of CPU cooler unit (mm) - 190
• LED illumination: Yes
• LEDs (pcs.): 8 + 16
• LED type: ARGB - 5V
• LEDs synchronization with controller/motherboard: Yes
• Insulation and damping: Top panel insulation mats, Front panel insulation mats, Side panel insulation mats, Anti-vibration decoupled HDD, Anti-vibration decoupled fan, Anti-vibration decoupled PSU, Anti-vibration decoupled motherboard-tray
• Removeable dust filters: Front, Bottom
• Scope of delivery: Screw set (Drives/Motherboard), Additional standoffs (pcs.) 3 (for E-ATX), LED strips (pcs.) 0, Cable ties (pcs.) 12, Screw box, VGA holder, VGA holder for inverted layout, Mesh Front Panel, ODD Bracket, Fan / Radiator bracket for multi mounting panel
• Material: Top cover - Aluminum, Front panel - Aluminum, Side panel - Steel, Side panel window - Tempered glass, Stands - Steel
• Warranty (Years): 3 Years
