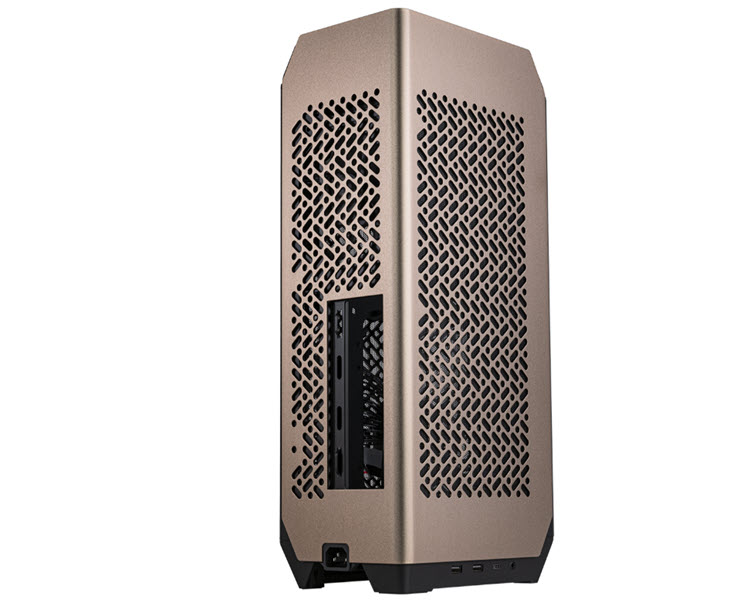

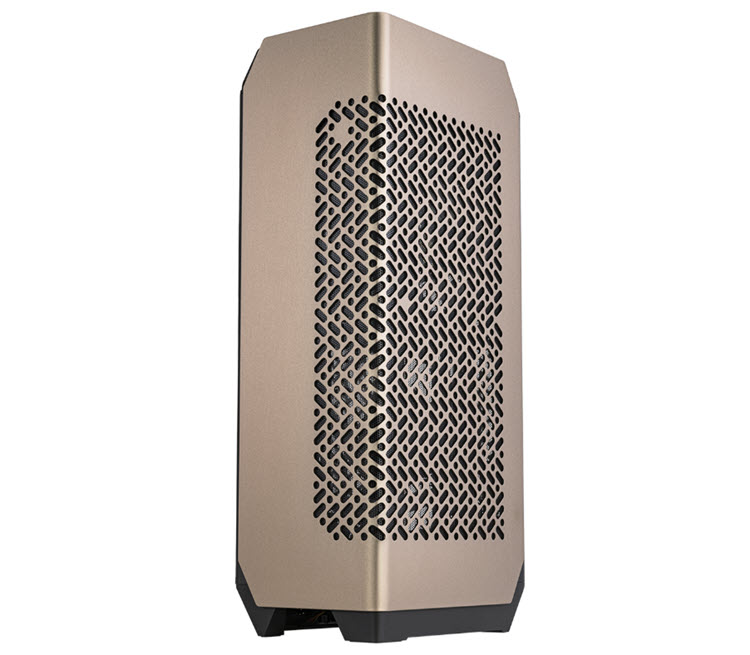

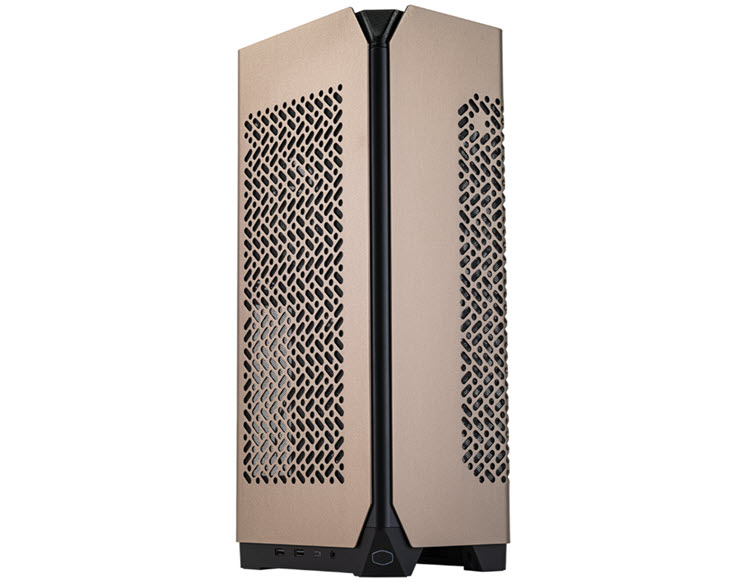

Ncore 100 MAX Bronze
Discover the Ncore 100 MAX by Cooler Master: a compact, high-performance addition to the MAX series. It offers advanced cooling, power solutions, and a small form factor with anodized aluminum panels. Accommodating up to 3.9 Slot GPU, it ensures compatibility with the latest processors, delivering unparalleled performance without sacrificing design. Experience versatility, compatibility and peak performance with the sleek, space-saving Ncore 100 MAX. Elevate your setup today!
A custom 120mm AIO cooling solution works well with the latest ¡9 and R9 CPUs and features both AMD AM4 and Intel LGA1700 sockets.
Cooler Master's V SFX Gold 850W ATX 3.0 PSU covers all your power needs and comes with custom length cables.
The Ncore 100 MAX layout has been meticulously designed to offer the most efficient thermal layout. This layout pulls in air from the standing sides of the case, which are its largest surfaces.

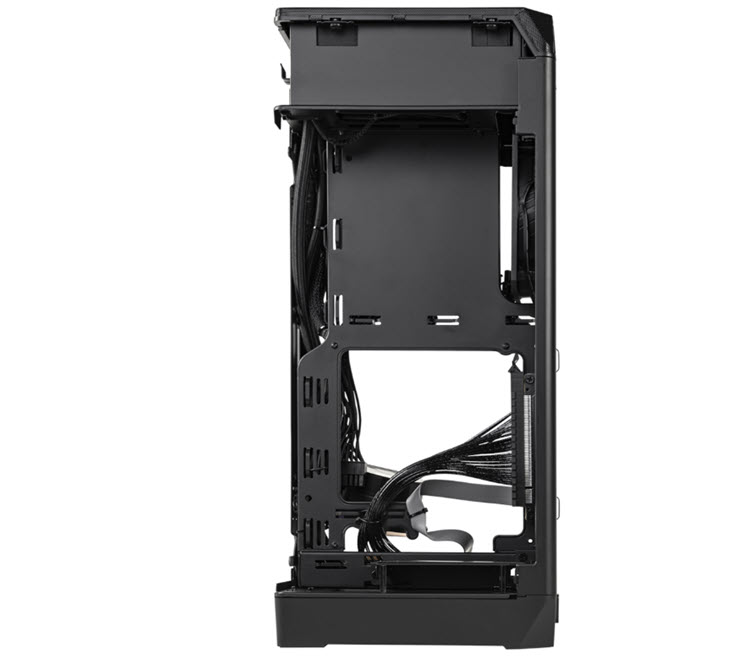

Includes custom length, pre-routed cables which have been placed right where you need them and are ready to be connected to your motherboard and GPU.
Eliminating three surfaces usually included in a standard case to let you approach installation from numerous angles. Even the cable cover features tool-less removal, for the utmost in accessibility.
The Ncore 100 MAX has been designed with a minimalist industrial design that would look right at home in a design studio. The MAX also includes ample ventilation and adjustable space to house enough power to satisfy even the most power-hungry use cases such as gaming and creative works.

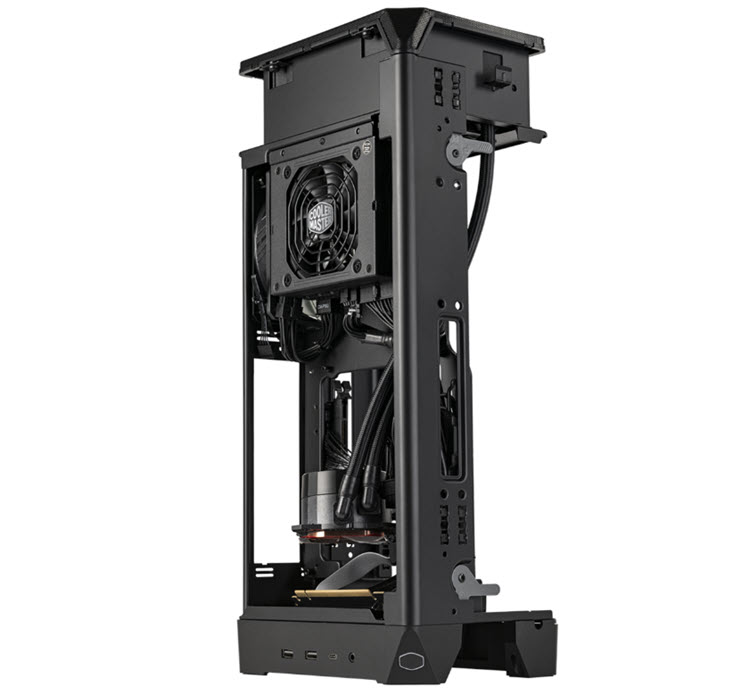

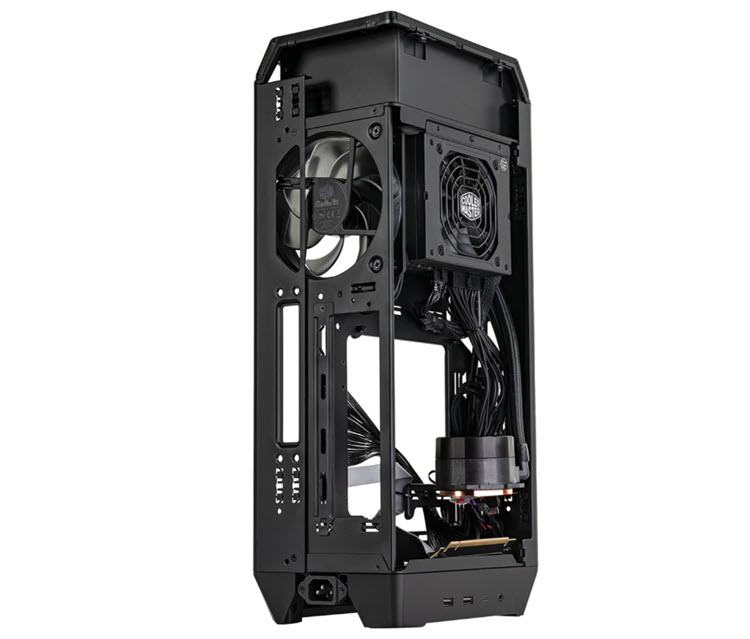

Small form factor PC are notoriously difficult to install because of the cramped space. Not the Ncore 100 MAX, it is the easiest Compact case on the market to build in just pop in your motherboard and GPU through the open frame design and connect the pre-routed cables.
Highlights
- Form Factor: SSF
- Exterior Color: Ncore 100 MAX Bronze Edition: Bronze
- Materials - Exterior: Steel, Plastic, Aluminum
- Materials - Side Panel: Aluminum
- Dimensions (L x W x H): Normal mode: 155mm x 212mm x 481mm (Incl. Protrusions), Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions), 155mm x 212mm x 457mm (Excl. Protrusions), 172mm x 212mm x 457mm (Excl. Protrusions)
- Volume: 15.80L (Normal mode), 17.54L (Expansion mode)
- Motherboard Support: ITX
- Expansion Slots: 3 x PCIe Slot mounting
- Drive Bays: 1 x 2.5" SSD

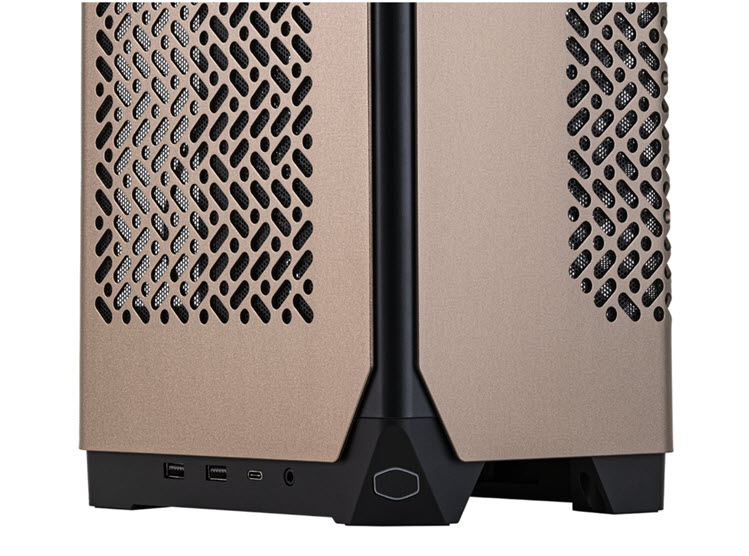

- I/O Panel: 2 x USB 3.2 Gen1 Type A, 1 x USB 3.2 Gen2 x 2 Type C, 1 x Audio Combo (Audio In / Out 3.5mm)
- Included Accessories: 1 x 240mm PCIe 4.0 x16
- Included CPU Cooling Solution: 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM)
- Included Power Supply Unit: V SFX Gold 850W ATX 3.0
- Pre-installed Fan(s) - Rear: 120mm SickleFlow PWM Fan x1 (Max. 1800RPM)
- Clearances - CPU Cooler: 48mm
- Clearances - Power Supply: 100mm
- Clearances - RAM: 48mm
- Clearances - Graphics Card: 337mm x 62mm x 180mm (Normal, 3.0 Slot thick), 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick), (Maximum space including GPU power connector)
- Cable Routing - Behind MB Tray: 11mm
- Dust Filters: Side panels
- Power Supply Support: SFX
- Warranty: 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery)
