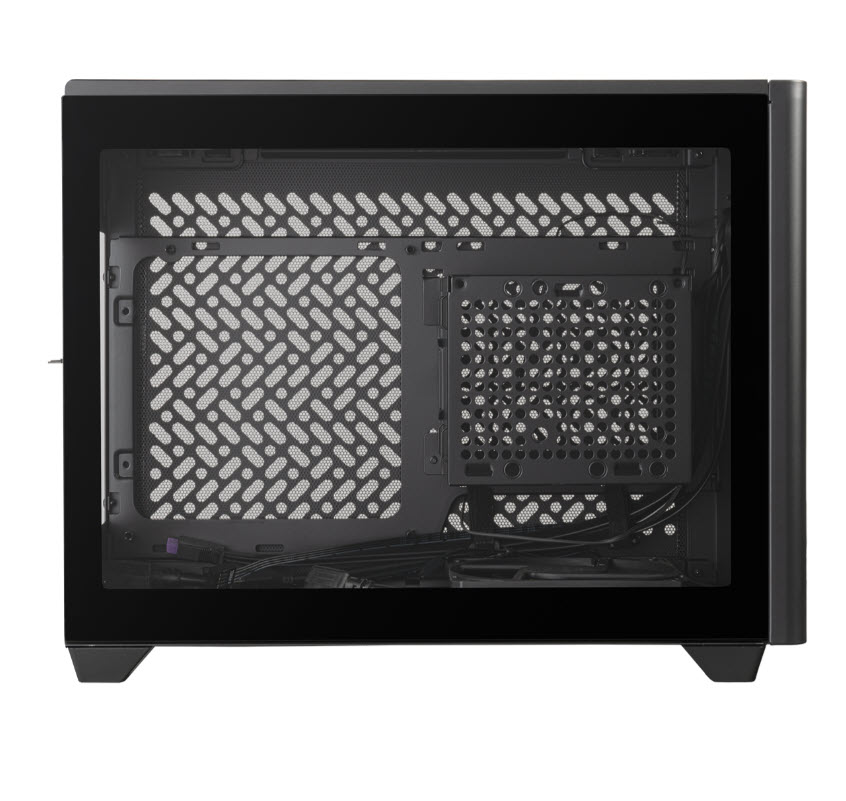

Cooler Master NR200P V2 (Black) - No PSU, Mini-ITX, 1 x120mm PWM Fan, GPU Holder, TG
Product Type:
Cases
Type Detail:
Mini-ITX
Manufacturer:
Cooler Master
Manufacturer #:
NR200PV2-KCNN-S00
Part Status:
Special Order Only
Milwaukee PC SKU:
57769
Price:
$143.99

Quick Tech Specs

Form Factor: Mini ITX
Type: Mini Tower
Brand: Cooler Master
P.Supply Incl.: NONE
Expantion Slots: 3 Slots
Internal 3.5"/2.5" Bays: 1 Bay
Internal 3.5" Bays: 1 Bay
Internal 2.5" Bays: 1 Bay
Front USB 3.+ Ports: 2 Ports
Front USB-C: 1-Port
Material: Steel
Window: YES
120mm Fans: 1 Fan
Warranty: 2 Years


MASTERBOX NR200P V2 - Black

MASTERBOX NR200P V2 - BIG POSSIBILITIES, SMALL SIZE - Compact yet powerful, Stay cool under pressure, Optimized GPU performance, Comprehensive GPU support, Easy, tool-free access, USB 3.2 Gen 2x2 Type C support, Refreshed NCORE style

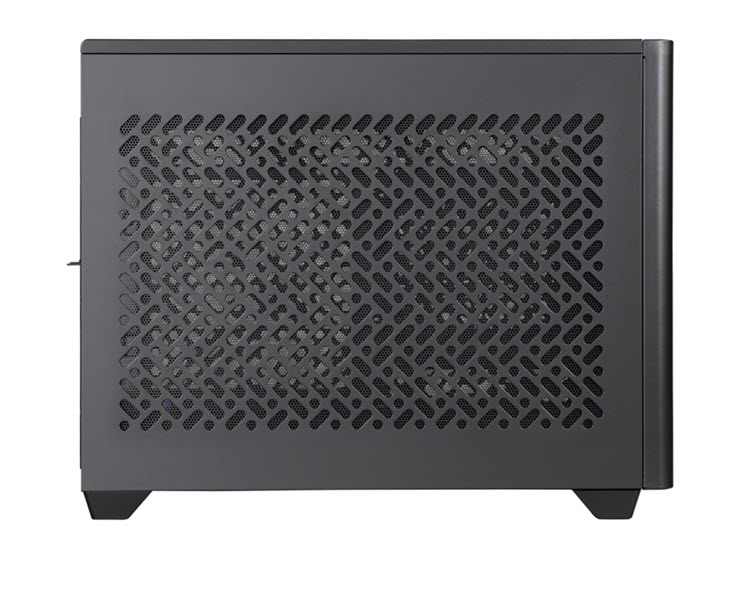

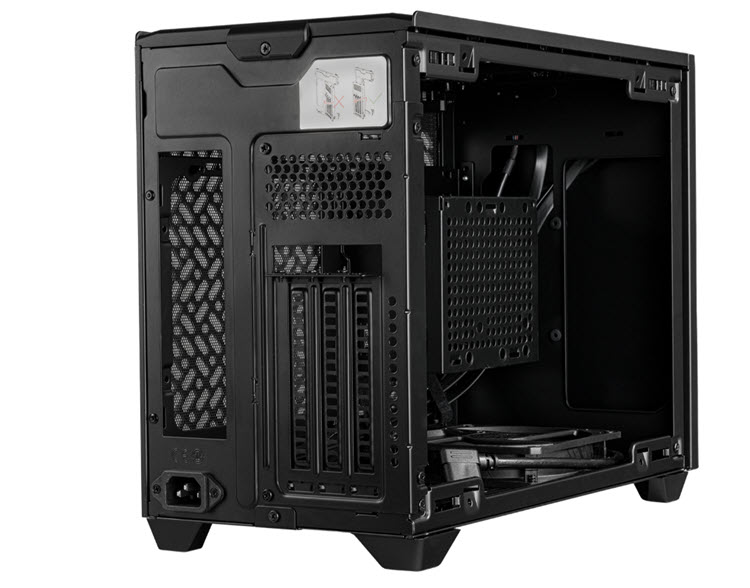

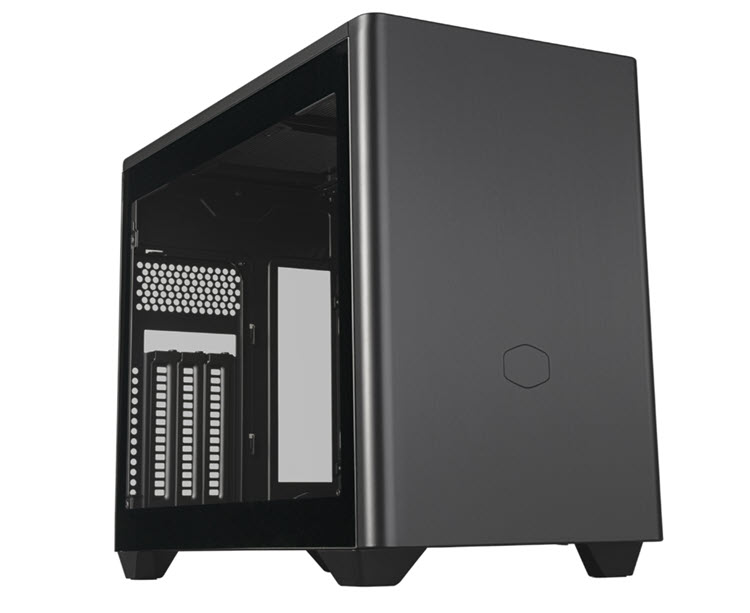

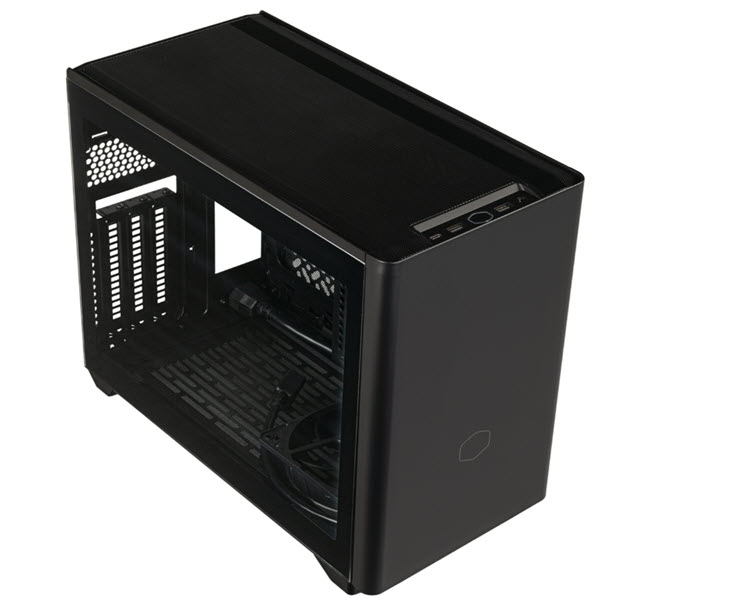

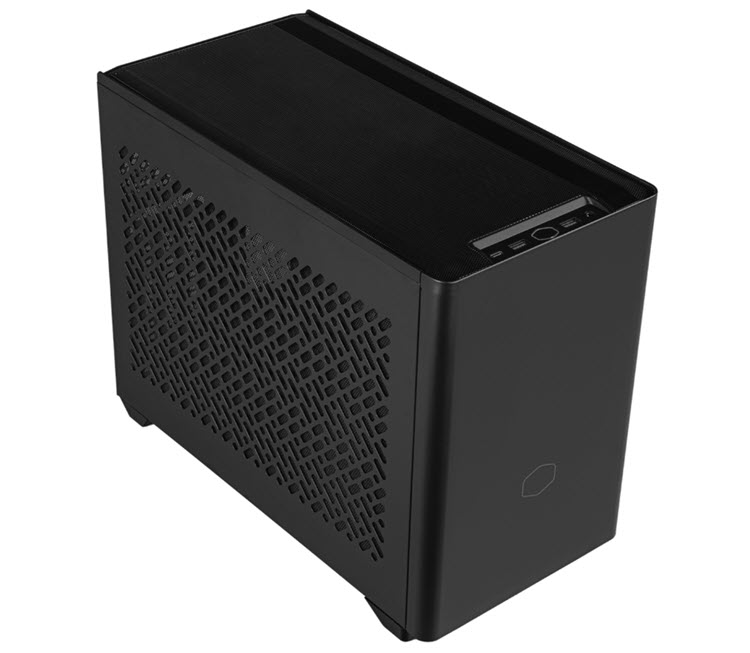

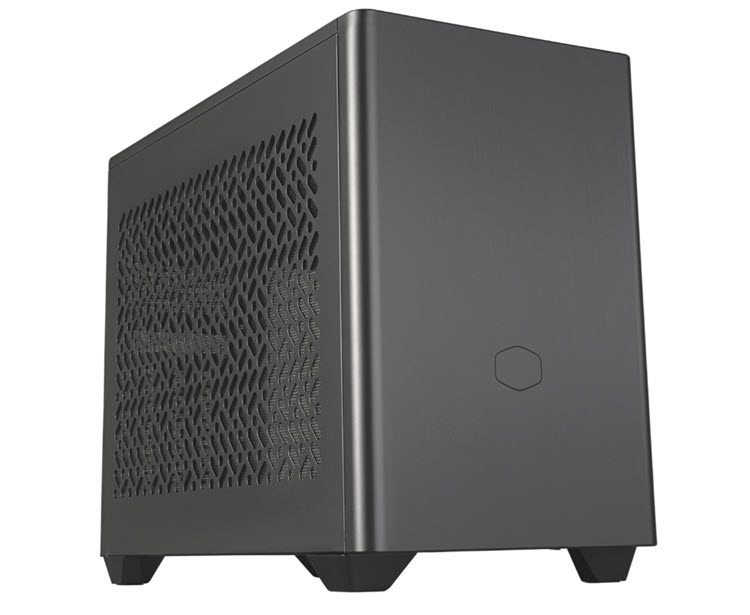

An ultra-sleek 18.25L design delivers unmatched performance and aesthetics with vented steel and tempered glass side panels.

No performance compromises with support for 240mm/280mm liquid coolers, providing the ultimate in thermal efficiency.

An efficient vertical airflow layout supported by a 120mm bottom-mounted fan keeps your GPU extra cool.

Includes vertical mounting options, a custom PCIe 4.0 riser cable, and a support bracket for GPUs up to 356mm in length and 160mm in height.

All external panels are secured with pins for easy removal, facilitating quick access to the internals without the use of tools while a removable GPU panel simplified the installation process.

An NCORE redesign provides a sleek take on maximizing cooling performance and style simultaneously.

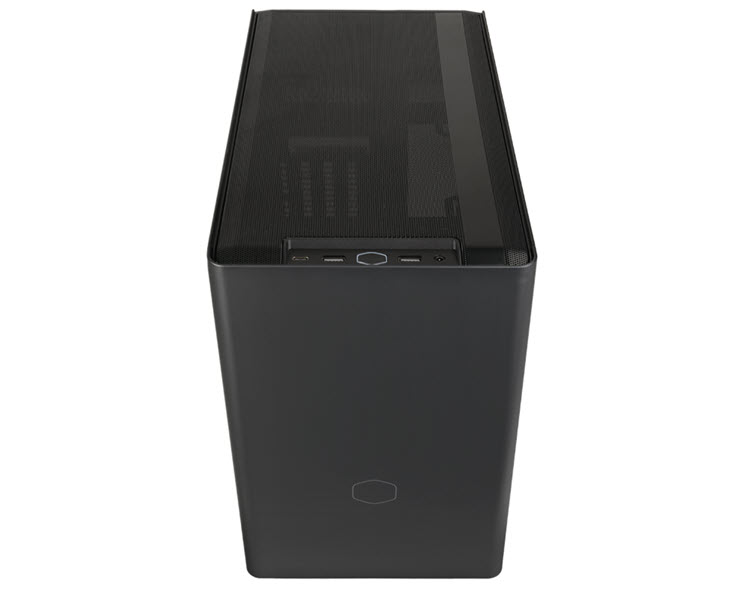

A USB 3.2 Gen 2x2 Type C port is built into the I/O panel with up to 20Gbps transfer speeds.

Highlights

  • Size: Mini ITX
  • Volume: 18.25L
  • Left Side Panel: Tempered Glass x 1, Steel x 1
  • Motherboard Support: Mini ITX, Max. size: 170x180mm

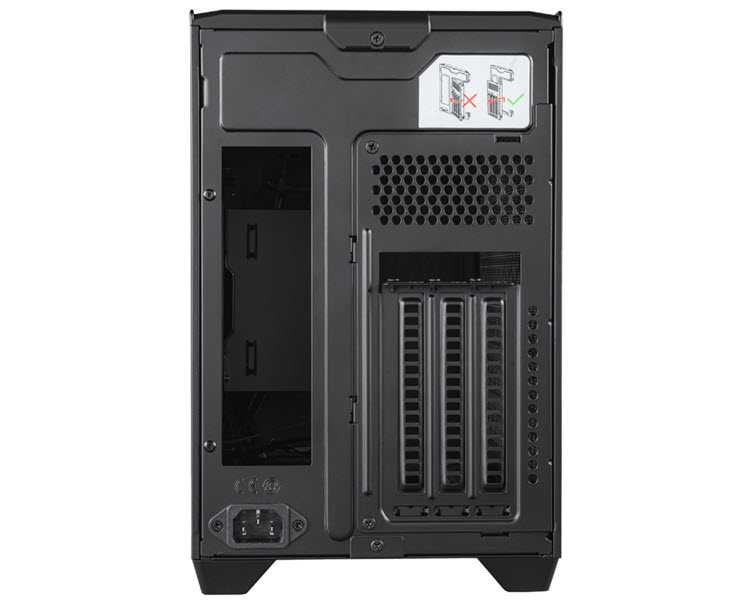

  • Expansion Slots: 3
  • I/O Panel: 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type C, 1 x 3.5mm Headset Jack (Audio+Mic)
  • 2.5" Drive Bays: 1 (Max. 2)
  • 3.5" Drive Bays: 1 (Max. 2, remove bottom fan)
  • 2.5" / 3.5" Drive Bays (Combo): 1
  • Pre-installed Fans - Bottom: 1 x 120mm 650~1800rpm PWM SickleFlow
  • Fan Support: Top - 2 x 120/140mm, Bottom - 2 x 120mm (1 x max 15mm, w/o 3.5" HDD at the bottom)
  • Radiator Support - Top: 120mm, 140mm, 240mm, 280mm
  • Clearance - CPU Cooler: 67mm
  • Clearance - PSU: 130mm
  • Clearance - GFX: Exceed front bracket: L: 357mm (incl. power connector) , H: 160mm (incl. power connector) , W: 73mm (triple slot); Not exceed front bracket: L: 334mm (incl. power connector) , H: 160mm (incl. power connector) , W: 80mm (triple slot)
  • Dust Filters: Bottom, Left side, Right side, Top
  • Power Supply Support: SFX, SFX-L
  • Warranty: 2 years
