Fractal-Design Era 2 (Charcoal Gray)

In Era 2, the original Era case has been refined and enhanced, furthering its distinctive architectural design and improving its cooling capability for a smoother gaming experience. With water cooling compatibility and ventilation on five sides, including a sleek, magnet-fastened panel in solid walnut, Era 2 is a small form factor case optimized for gaming. Its elegantly sculpted outer body is crafted with anodized aluminum and slides off in one piece to reveal an intuitive, well-constructed interior with space for a powerful GPU.

Enjoy a sleek, sculpted aesthetic complete with an anodized aluminum exterior and an FSC-certified walnut top panel.

Install a graphics card up to 326 mm in length and pair it with a radiator up to 280 mm (240 recommended) for powerful SFF gaming.

Features ample ventilation engineered to direct airflow through the case and includes two Aspect 12 PWM fans.

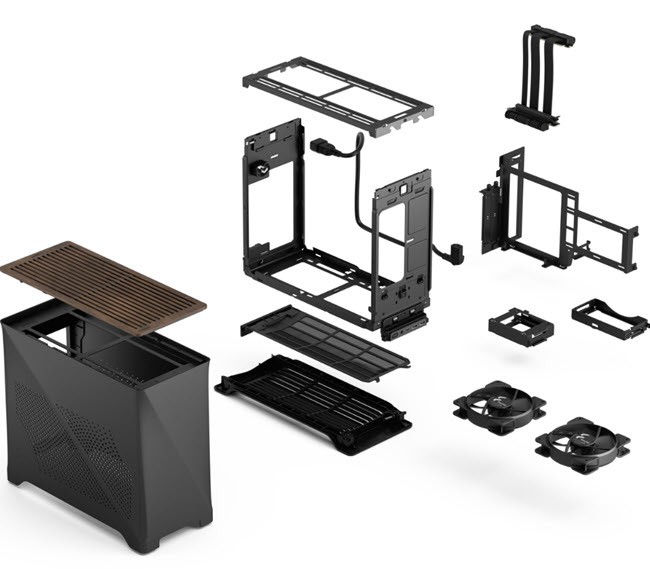

Enjoy tool-free access with a magnetic top panel, an exterior which slides off and a push-to-release top bracket.

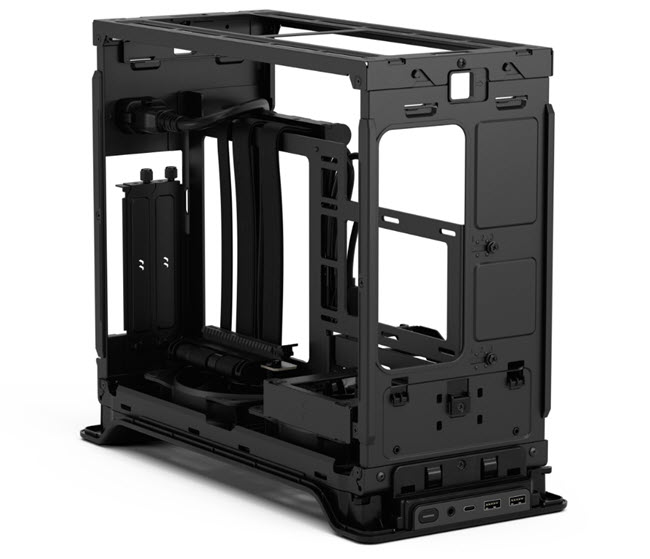

Adapt your build towards CPU cooling space or graphics card width with a slidable central wall offering 15 mm of flexibility.

Includes a PCIe 4.0 riser cable pre-installed in the case and features dedicated mounts for up to four 2.5" drives.

Features an illuminated power button and two USB ports for connecting devices, including one USB Type-C 20Gbps.

Highlights

• Form Factor - mini-ITX
• Motherboard compatibility - ITX
• Expansion slots - 3
• Dedicated 2.5" drive mounts - 4 total, 4 included (2 on motherboard wall)

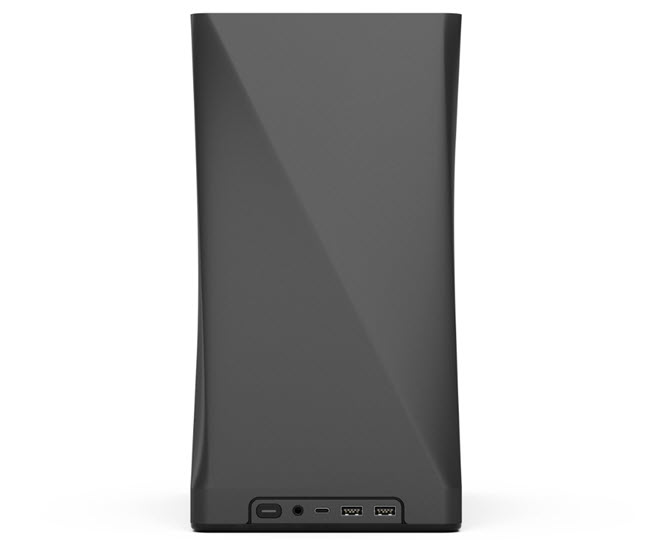

• Front interface: 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, Audio
• Included Fans - Bottom fan - 2 x Aspect 12 PWM Fans
• Total fan mounts - 4 x 120 or 2 x 120 and 2 x 140 mm
• Top radiator - Up to 315 x 140 mm with total thickness = 52 mm - Up to 300 x 140 mm with total thickness = 58 mm
• GPU max length - 326 mm
• GPU max Height - 137 mm
• GPU max thickness - 48-63 mm (depending on motherboard wall position)
• CPU cooler max height - 55-70 mm (depending on motherboard wall position)
• Cable routing grommets - No
• Fixed velcro straps - Yes (2 included)
• Captive thumbscrews - PCI-e Blanks
• Panels - Aluminum
• Dust filters - Bottom
• SFF-Ready Enthusiast GeForce Cards - Yes
• Case dimensions (LxWxH) - 366 x 165 x 314 mm
• Case dimensions w/o feet/protrusions/screws - 365 x 165 x 314 mm
• Net weight - 4,64 kg
• Package contents - Case, Accessory Box, Designers Letter, Quick Start Note
• Accessory box contents - SSD Screw x16, PSU Screw x4, Motherboard Screw x8, Zip Tie x4
• Warranty - 2 Years
