TR100 Hydrangea Blue Mini-ITX

Highlights

The TR100 Hydrangea Blue Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. It supports an SFX power supply and features space for two 120mm or 140mm fans on the top, as well as room for a 280mm AIO cooler. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!

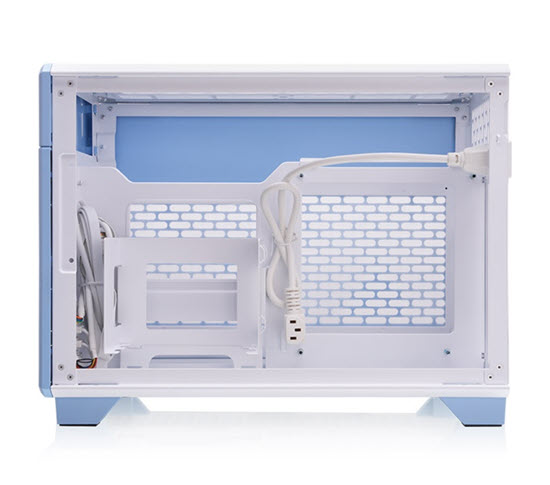

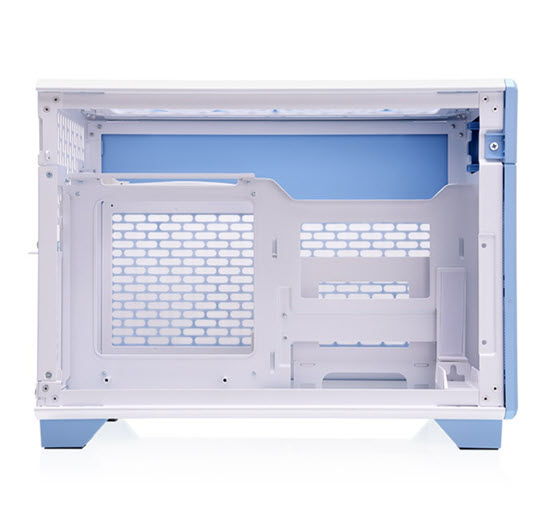

The TR100 Hydrangea Blue Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. The dual-chamber design positions the mini-ITX motherboard and SFX PSU in the right chamber, with the graphics card in the left, connected via a PCIe 4.0 riser cable. It supports two 120mm/140mm top fans and up to a 280mm AIO for cooling, plus two 2.5” SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build. To make it more visual appealing, a separately sold 3.9" LCD Screen Kit is also an option. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!

The TR100 Hydrangea Blue is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.

The TR100 Hydrangea Blue supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system.

The TR100 Hydrangea Blue supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.

More than just a case, The TR100 Hydrangea Blue is a complete, travel-ready gaming solution. Whether you're traveling for business or pleasure, editing video or designing graphics, playing games or using VR, there's no need to sacrifice performance or leave your gaming experience behind! *The suitcase is sold separately.

The TR100's modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.

The TR100 Hydrangea Blue features a removable PSU bracket and two sets of screw holes, supporting both SFX and SFX-L PSUs for higher wattage needs.

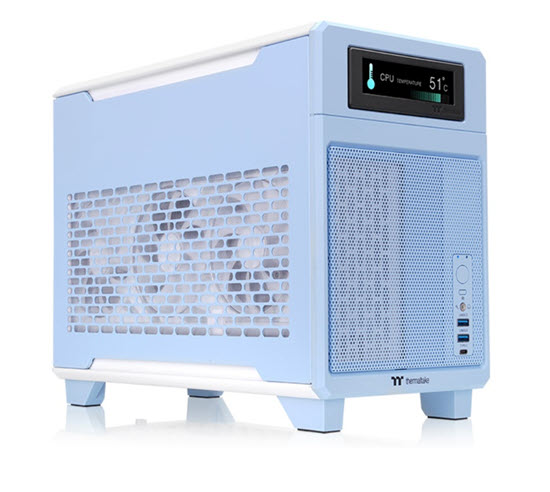

Maximize your TR100’s visual effects by upgrading it with our LCD Screen Kit. The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.

Through the TT RGB Plus, the 3.9'' LCD display presents real-time information and plays JPG and GIF files with 128 x 480 resolution. What’s more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.

Despite its compact size, The TR100 Hydrangea Blue still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.

Specifications

• CASE TYPE - Mini-ITX
• Color - Hydrangea Blue
• Dimension (H x W x D) - 294 x 179 x 391 mm - (11.58 x 7.05 x 15.39inch)
• PANEL - Steel
• MATERIAL - SPCC
• MOTHERBOARD SUPPORT - 6.7” x 6.7” (Mini ITX)
• EXPANSION SLOTS - 3
• Drive Bays - 2 x 2.5” or 1 x 2.5”

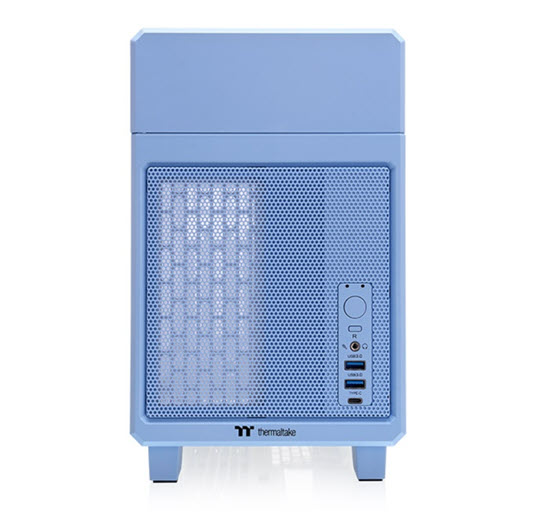

• I/O Port - USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
• PSU - SFX / SFX-L (optional)
• FAN SUPPORT - Top: 2 x 120mm, 1 x 120mm - 2 x 140mm, 1 x 140mm
• RADIATOR SUPPORT - Top Side(AIO): 1 x 240mm, 1 x 120mm - 1 x 280mm, 1 x 140mm
• CPU cooler height limitation: 68mm
• VGA length limitation: 360mm
• VGA Width limitation: 70mm
• PSU length limitation: 130mm
• Warranty - 3 Years
