FRAME 4000D Black
The revolutionary FRAME Modular Case System redefines customization. Want to upgrade the motherboard tray to billet aluminum? Want to replace your front I/O panel for more USB ports? Now you can.
This case evolves with your needs, offering near limitless options for upgrades and changes.

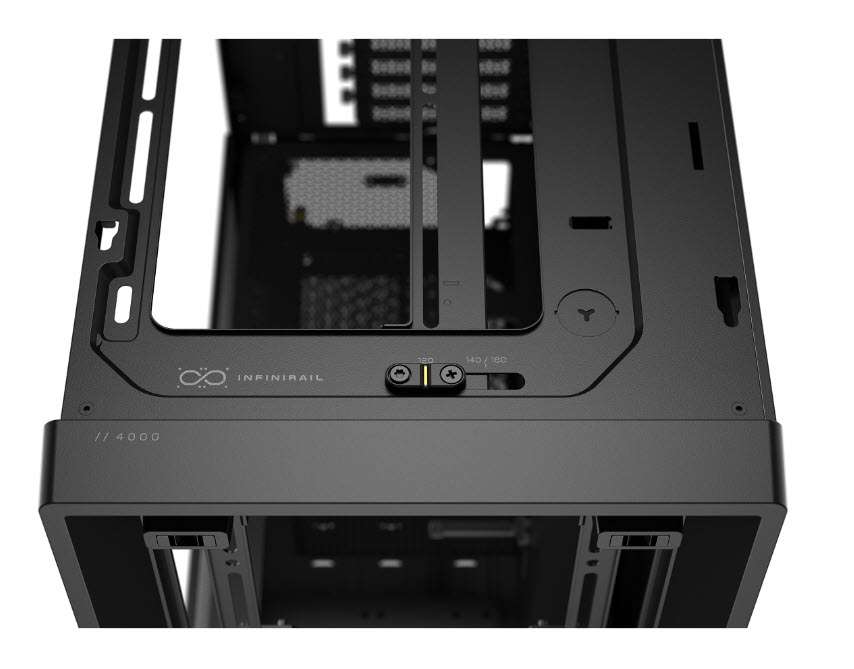

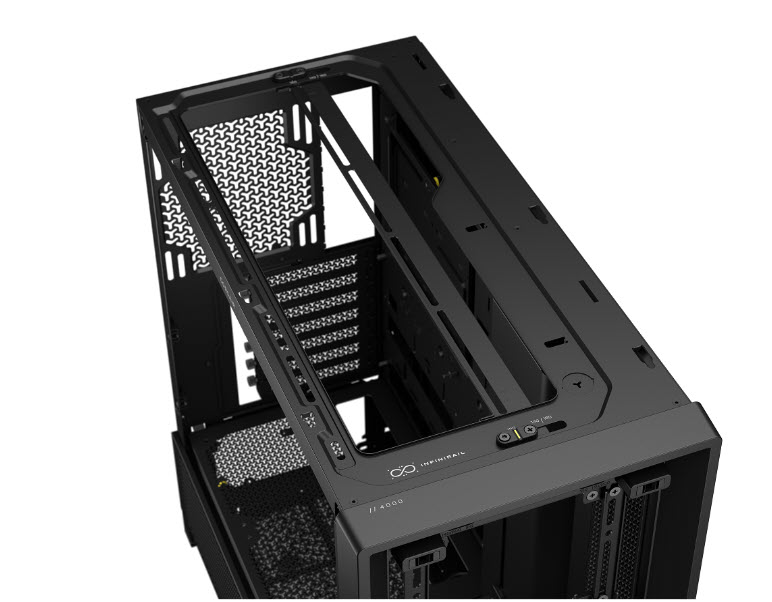

INFINIRAIL FAN MOUNTING SYSTEM - This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.
Engineered for maximum airflow and minimal resistance, the new 3D Y-pattern steel front panel ensures a smooth, unobstructed path for cool air, enhancing overall cooling.
DUAL 360mm RADIATOR SUPPORT - Boost your cooling with three dedicated mounting locations for 360mm radiators – front, roof, and side. You can mount up to 10x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.
Ensure your build has excellent airflow with careful cable routing and support for the latest motherboards and graphics cards.
NO VISIBLE CABLES - Fully compatible with reverse-connector motherboards from Asus, MSI, and Gigabyte, allowing for unobstructed airflow and a super-clean build.
SAG-FREE GRAPHICS CARDS - Every CORSAIR FRAME 4000D includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.
CABLE SHROUD - Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.
WIDE COOLING FLEXIBILITY -
Customize your cooling setup with room for up to 12x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators.

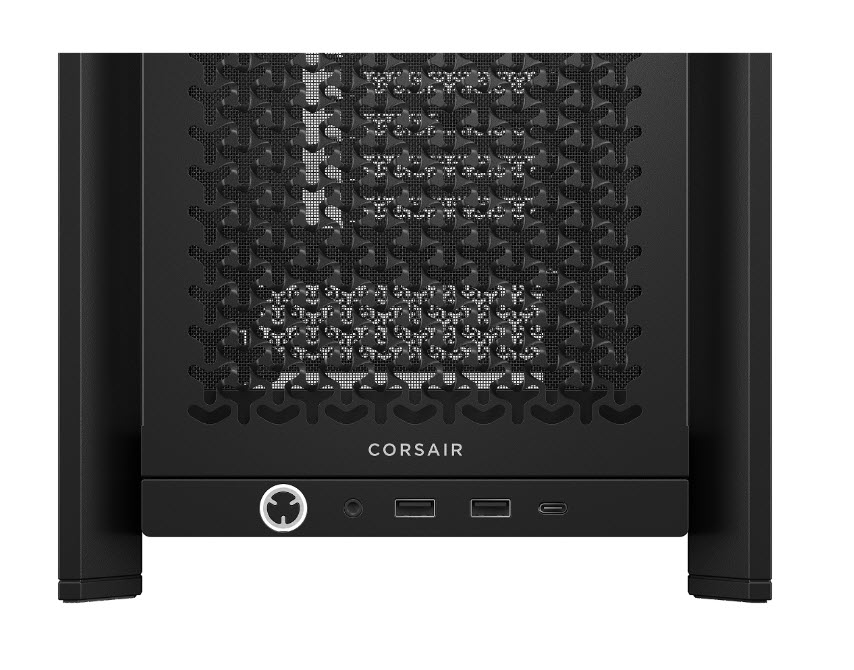

Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.
Highlights
- Form Factor: Mid-tower
- Color: Black
- Material: Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
- Dimensions: H 486mm x L 490mm x W Width 239mm
- Weight: 10.03
- Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
- Reverse Connector Motherboard Support: Yes
- Case Expansion Slots: 7 Horizontal or 3 Vertical
- Vertical Mount Support: Supported (Riser Card Sold Separately)
- Case Front IO: (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
- Front IO Motherboard Connections: 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
- Internal 3.5" Drive Bays: 2
- Internal 2.5" Drive Bays: 2
- Fan Support - Top: 3x 120mm, 2x 140mm
- Fan Support - Front: 3x 120mm, 2x 140mm, 2x 200mm
- Fan Support - Bottom: 2x 120mm
- Fan Support - Side: 3x 120mm, 2x 140mm
- Fan Support - Rear: 1x 120mm, 1x 140mm
- Radiator Support - Top: 360mm, 280mm, 240mm
- Radiator Support - Front: 360mm, 280mm, 240mm
- Radiator Support - Side: 360mm, 280mm, 240mm
- Radiator Support - Rear: 140mm, 120mm
- Compatible Liquid Coolers: H60, H100, H115, H150, NAUTILUS, TITAN
- Dust Filtration: Yes
- Cable Routing Space: 37mm
- Left Side Panel: Tempered Glass
- Right Side Panel: Steel
- Case Power Supply: ATX
- Warranty: 2 Years
