Hyper M.2 X16 PCIe Expnsn Card
Product Type:
Controller Cards
Type Detail:
SATA Controllers
Manufacturer:
Asus
Manufacturer #:
Hyper M.2 X16
Part Status:
Special Order Only
Milwaukee PC SKU:
641444
Price:
$64.99

Supporting Intel VROC (Virtual RAID on CPU) on X299 motherboards using Skylake-X CPUs, the ASUS Hyper M.2 X16 PCIe Expansion Card holds up to four NVMe M.2 drives and delivers data transfer speeds up to 128Gbps, 22x faster than traditional SATA 3.0.

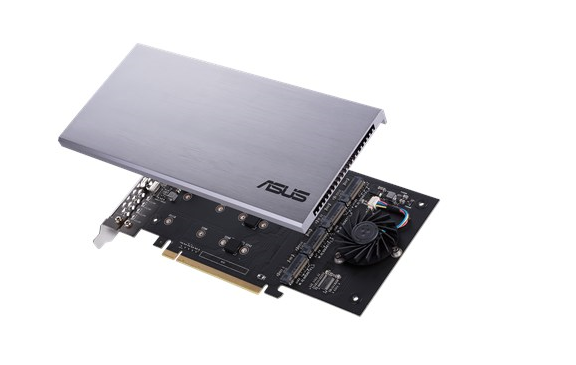

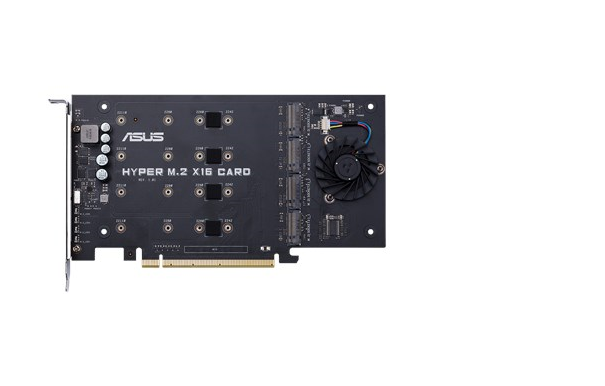

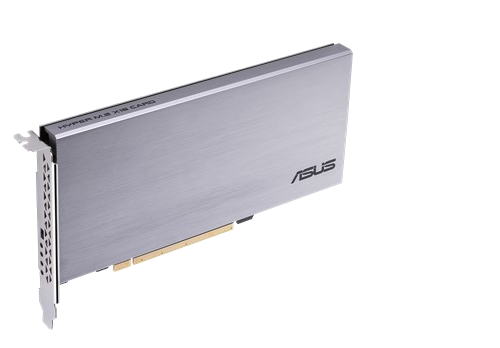

Asus Hyper M.2 X16 PCIe Expansion Card

With Intel® Virtual RAID on CPU (VROC), unused CPU PCle® lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs. Unlike motherboard PCH-based RAID, VROC isn't confined by the 32 Gbps DMI bottleneck, so multiple drives can be teamed to provide incredible throughput. Hyper M.2 x16 Card is designed specifically for VROC and features four M.2 slots, providing up to 128 Gbps of bandwidth per card. Hyper M.2 x16 Card is designed specifically for VROC and features four M.2 slots, providing up to 128 Gbps of bandwidth per card.


Highlights

  • Interface: PCI Express 3.0 x16 interface, compatible with PCI Express x8 and x16 slots, support data transfer rates up to 128 Gbps.
  • External Connectors: 4 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support(Support PCIE SSD only)
  • LED & Button: 1 x M.2 FAN Power Switch, 4 x M.2 access LEDs
  • Accessories: 4 x M.2 Screw packages
  • Compatible Models: ROG RAMPAGE VI EXTREME, ROG RAMPAGE VI APEX, ROG STRIX X299-XE GAMING, ROG STRIX X299-E GAMING, PRIME X299-DELUXE, PRIME X299-A, TUF X299 MARK 1, TUF X299 MARK 2
