USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure
Tool-free External M.2 PCIe/SATA NGFF SSD Aluminum Case - USB Type-C&A Host Cables - Supports 2230/2242/2260/2280
HIGH PERFORMANCE: External USB-C or USB-A NGFF storage solution for your PCIe M.2 NVMe or SATA M.2 AHCI SSD; This enclosure features USB 3.2 Gen 2 (10Gbps) with UASP support & PCI Express 3.0; Compatible with thunderbolt 3/4 host computers
COMPATIBILITY: M.2 SATA or M.2 NVMe SSD enclosure comes with two separate 12in (30 cm) USB host cables to provide support for both USB Type-A and USB Type-C; OS Support includes Windows, Mac, Chrome, Linux, Ubuntu & iOS (iPhone 15 [Plus/Pro/Max] and up)

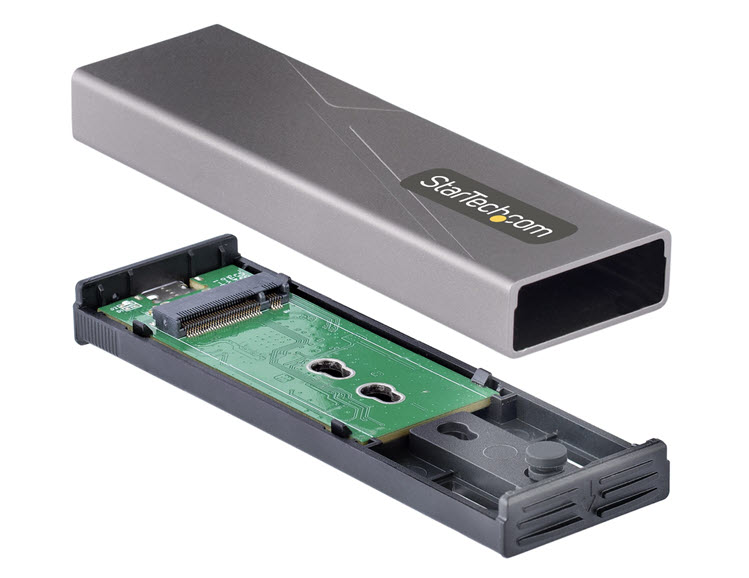

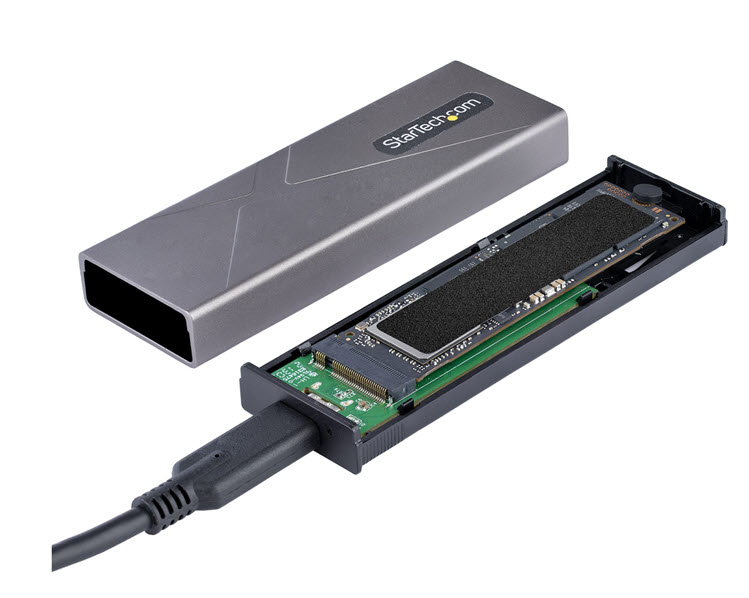

TOOL-LESS INSTALLATION: The M2 SATA or M.2 NVMe SSD (solid state drive) adapter features driverless plug-and-play setup and a tool-less case design for hassle free drive installation
With compatibility for both PCIe NVMe and SATA based M.2 drives, this enclosure solves the common challenge of identifying which enclosure is compatible with your M.2 drive. Regardless of whether your M.2 drive is SATA or PCIe NVMe based, you can rest assured that this enclosure will provide a high-performance solution for turning your M.2 drive into a portable external enclosure. For further compatibility the enclosure works with multiple drive lengths supporting 2230, 2242, 2260 and 2280mm drives including Samsung (850, 860, 870, 950, 960, 970) Kingston, Seagate, Western Digital (WD), HP, and Intel SSD drives.
LIGHTWEIGHT & PORTABLE: Compact aluminum housing (4.1x.14x0.5 in / 105x35x14 mm) protects the SSD & acts as a large heatsink for heat dissipation, ensuring consistency at peak performance levels
Highlights
- Drive Connectors: 1 - M.2 (PCIe, SATA, M-Key, NGFF)
- Host Connectors: 1 - USB 3.2 USB Type C (10 pin, Gen 2, 10 Gbps)
- Interface: USB 3.2 Gen 2
- Bus Type: USB 3.2 Gen 2 10Gbps
- Number of Drives: 1
- Drive Size: 22 mm - M.2 NVMe
- Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF), M.2 (SATA, B+M-Key, NGFF)
- Drive Installation: Fixed
- Supported Drive Height(s): 2230, 2242, 2260, 2280
- Chipset ID: Realtek - RTL9210B
- LED Indicators: 1 - Power & Activity
- Maximum Data Transfer Rate: 10 Gbps
- Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s
- UASP Support: Yes
- TRIM Support: Yes
- 4Kn Support: Yes
- Type and Rate: NVMe (PCIe Gen 3)
- Insertion Rating: USB-C: 10,000 cycles, M.2: 60 Cycles
- General Specifications: Fully compatible with M.2 SATA, AHCI and PCIe NVMe based drives
- MTBF: 112,000 Hours
- Power Source: USB-Powered
- Input Voltage: 5V DC
- Output Voltage: 5 DC
- Included in Package: 1 - M.2 SSD Enclosure,
1 - 12 in [30 cm] USB-C to USB-C Host Cable,
1 - 12 in [30 cm] USB-C to USB-A Host Cable,
1 - Thermal Pad,
2 - SSD Fastener Pegs,
1 - Quick-Start Guide
- Note: Windows 7 and earlier Windows versions do not support TRIM with USB storage devices.
- Warranty: 2 Years
