M.2 to U.3 Adapter for M.2 NVMe SSDs

Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5inch form factor to install in U.3 drive bays/backplanes; Compatible with U.3 (SFF-TA-1001) host interfaces; M.2 to U.3 Adapter is TAA Compliant

Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while preserving the read and write speeds; No chipset design ensures no loss in performance when adapting to 2.5inch

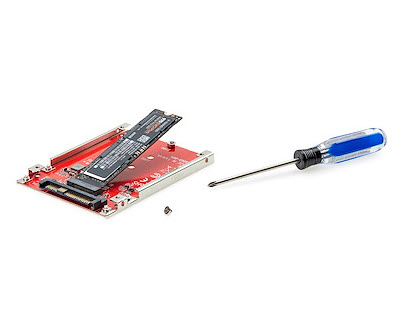

M.2 to U.3 Host Adapter works with all operating systems including Windows, macOS, and Linux; M2 to U.3 Adapter requires no additional drivers or software; Includes drive and adapter mounting screws for an efficient installation

Open frame design enables support for M.2 drives with larger heatsinks, and allows for better airflow; Supports PCIe 4.0 and lower drives; SFF-TA-1001 is not compatible with SATA/SAS/U.2 host controllers or SATA-based M.2 SSDs

Highlights

• Drive Connectors: 1 - M.2 (NVMe, M-Key, PCIe x4)
• Host Connectors: 1 - U.3 (PCIe, NVMe, SFF-TA-1001)
• Interface: U.3 (PCIe, NVMe, SFF-TA-1001)
• Bus Type: PCI Express
• Number of Drives: 1
• Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)
• Supported Drive Height(s): 2242, 2260, 2280
• S.M.A.R.T. Support: Yes
• Hardware Raid Supported: No
• Insertion Rating: 60 Cycles
• MTBF: 12,368,734 Hours
• OS Compatibility: No Drivers or Software Required
• Note: NVMe SSDs may require additional drivers, provided by the manufacturer, or may be natively provided by the operating system (Windows 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support.

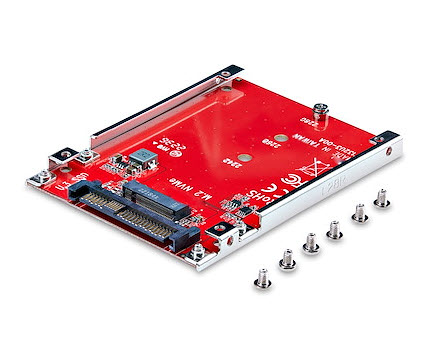

• Included in Package: 1 - M.2 to U.3 Adapter, 1 - Quick-Start Guide
• Warranty: 2 Years
