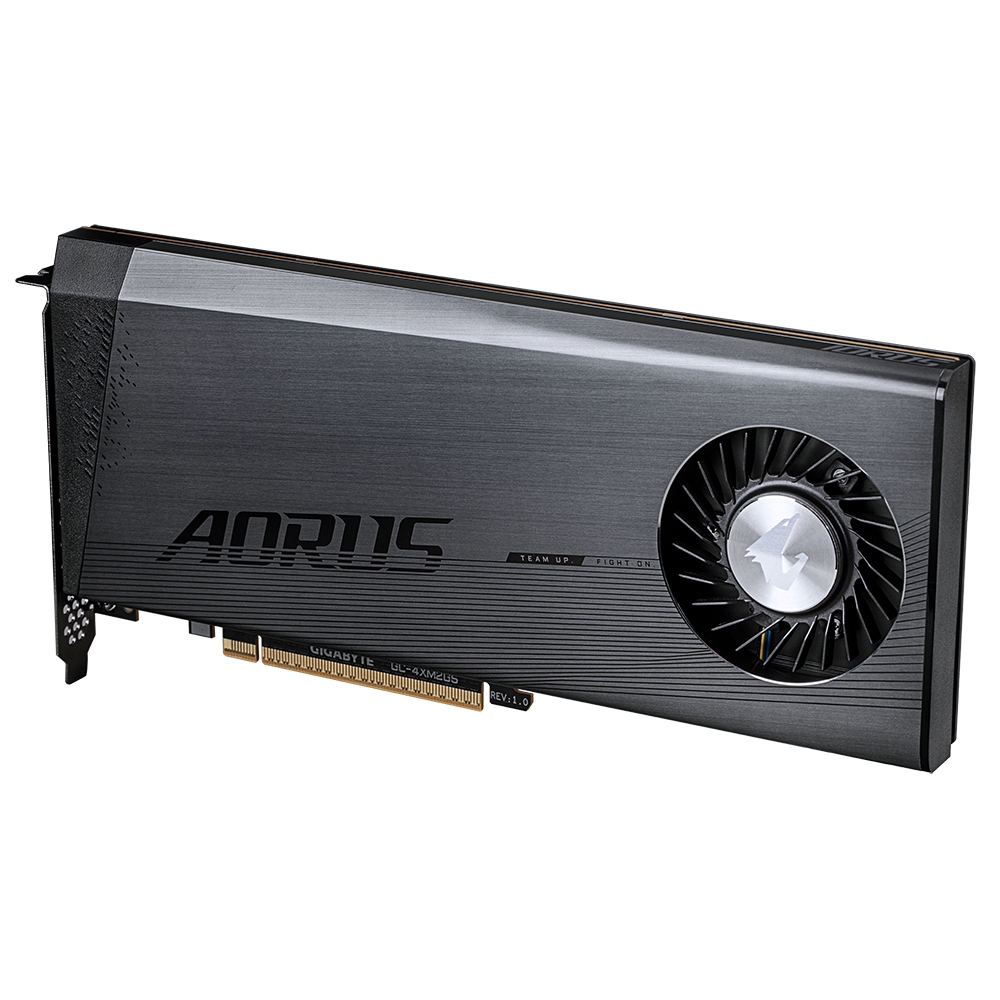

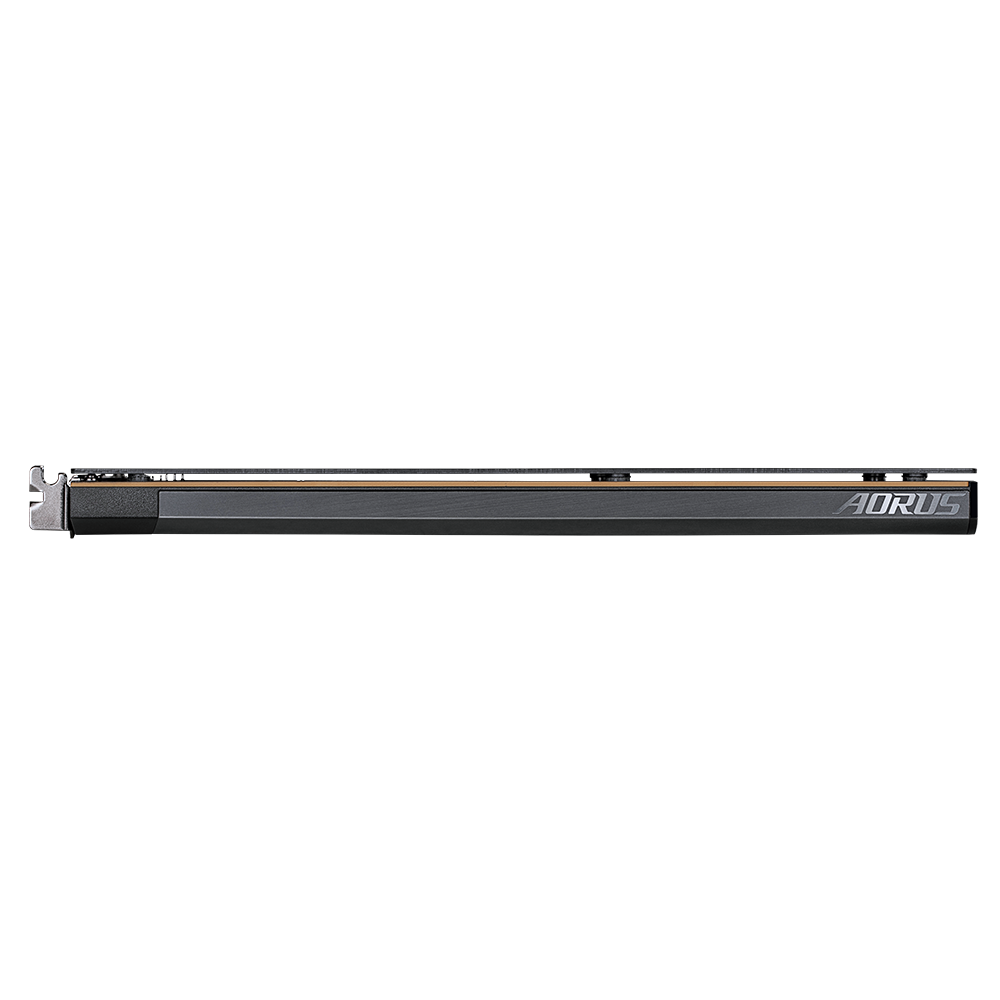

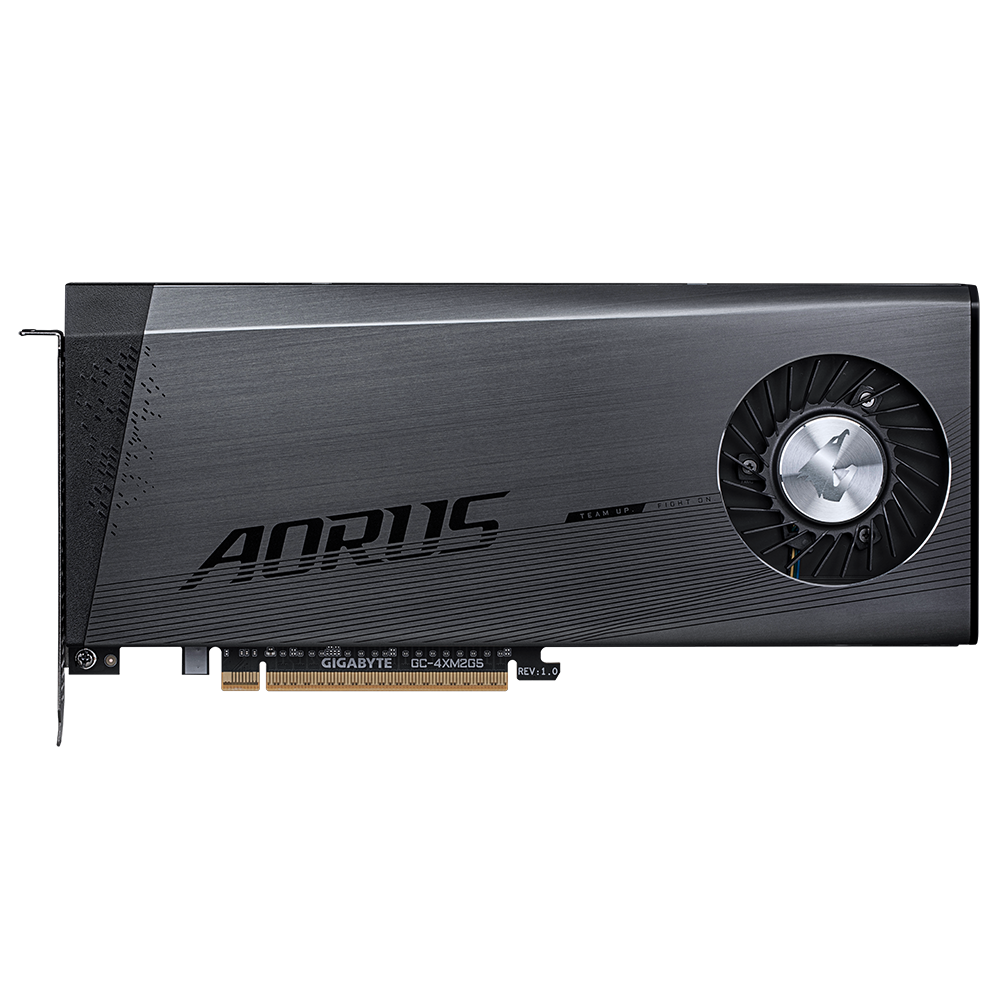

AORUS Gen5 AIC Adapter

AORUS Gen5 AIC Adapter equips very advanced thermal solution, including 5.5mm heatsink, 5cm double ball bearing fan, M.2 SSD baseplate and multiple thermal pads to cool down both sides of 4 M.2 high performance SSD with active cooling. Users can choose 3 different fan profile based on hardware configuration to reach perfect balance of high storage performance and low noise.

Easy One Click RAID by AORUS Storage Manager, Full PCIe 5.0 Design, Advanced Thermal Solution for PCIe 5.0 SSD

With the AORUS Gen5 AIC Adapter and 4 PCIe 5.0 2TB SSD, the bandwidth can reach an amazing 63GB/s

AORUS Storage Manager, is dedicated software for AORUS Gen5 AIC Adapter, allows users to enable RAID 0 on multiple M.2 SSD in a single click, also monitor overall temperature on SSD and PCB to change different fan profile based on users' hardware configuration.

Highlights

• Interface: Full PCIe 5.0 Design, compatible with PCI Express x16 and x8 slots, (If the adapter card is installed in a x8 slot, only the M2_1 and M2_2 connectors can be used.)
• Storage Interface: 4 x PCIe 5.0/4.0 M.2 Slots (Socket 3, M key, type 2260/2280/22110 PCIe x4 SSD support) Support for RAID 0, RAID 1, and RAID 10* - * Supported RAID levels vary by platform.
• Fan: 5cm 2 Ball Bearing Blower Fan
• Advanced Thermal Solution for PCIe 5.0 SSD
• Easy Software RAID with Single Click
• Custom AORUS Storage Manager
• Dimension: 27.86cm x 13.49 x 1.98 cm
