1:1 M.2 NVMe Drive Duplicator, Standalone M.2 SSD Cloner/Copier

STANDALONE M.2 DUPLICATOR: Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer; High performance sector-by-sector duplication rates of up to 90GBpm; Works with any file format and copies the entire drive

M.2 DRIVE DOCK: USB 3.2 Gen2x2 (20Gbps) host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need to install the drives internally

COMPACT & USER-FRIENDLY: Small form factor requires minimal desktop or storage space; LEDs indicate power, progress, and SMART status; Audible buzzer confirms duplication completion; Active and passive cooling ensure optimal performance

COMPATIBILITY: No drivers or software required; Top-loading (toaster-style) design ensures all PCIe M.2 (M-Key) will fit, even those with pre-installed heat sinks; Supports 4Kn sector size; Target disk must be equal to or larger than the source disk

APPLICATIONS: Standalone solution for cloning M.2 NVMe drives without using computer resources; Ideal for data backup, hardware upgrades, IT system imaging and support tasks, routine maintenance, and educational environments

Note | For duplication, the target drive must be of equal or greater size than the source drive. Duplication speed of up to 90 GB per minute achieved in benchmark testing environment; actual speed will vary based on drive model, algorithm, and other factors. Results may vary.

Highlights

• Drive Connectors: 2 - M.2 (NVMe, M-Key, PCIe x4)

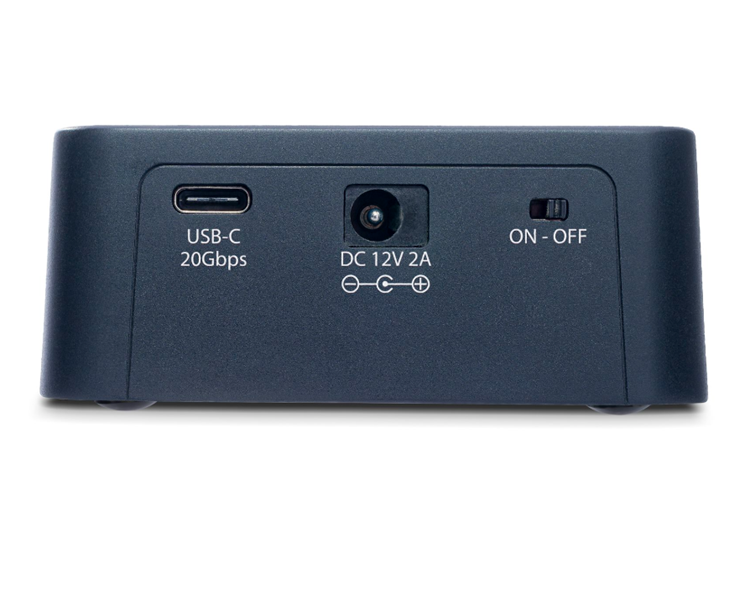

• Host Connectors: 1 - USB Type-C (24 pin, Gen 2x2, 20Gbps)
• Other Interface(s): 1 - Barrel Power Connector (Size M, OD:5.50, ID: 2.10)
• Fan(s): Yes
• Fan: 1 - 60 mm
• Number of Drives: 2
• Drive Size: 22 mm - M.2 NVMe
• Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)
• Drive Installation: Removable
• Supported Drive Height(s): 2230, 2242, 2260, 2280, 22110
• Chipset ID: JMS586U

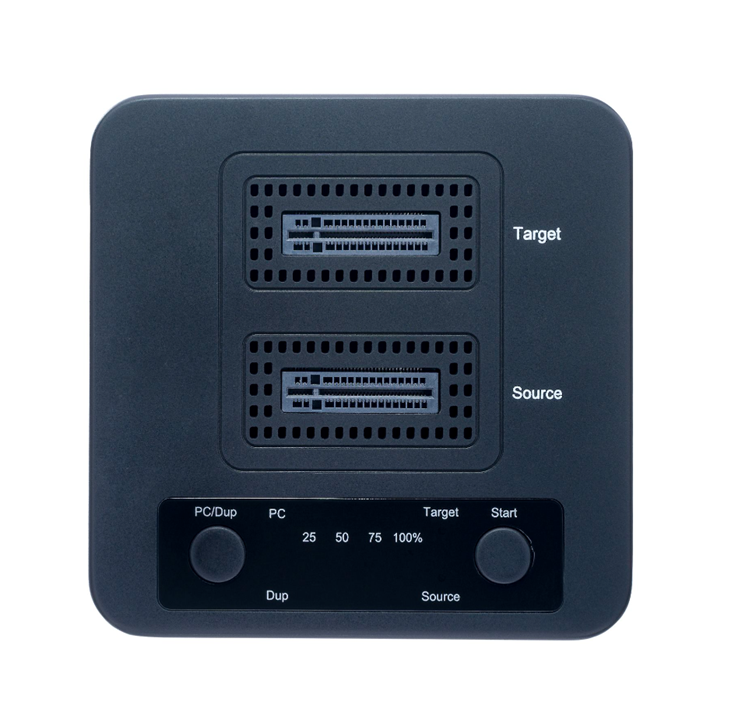

• LED Indicators
• 4 - Progress LEDs: Indicates 25%, 50%, 75%, and 100% progress during the duplication process
• 2 - Drive LEDs: Solid Blue: Indicates the M.2 Drive is detected
• Flashing Red: There is an error reading the M.2 Drive or the M.2 Drive was removed during duplication
• Solid Purple: Indicates the Target M.2 Drive is too small to duplicate to
• 2 - Mode LEDs: Solid Green: PC Mode, Solid Blue: Duplicator Mode
• Duplication Modes: Sector by Sector (Whole Drive)
• Duplication Speed: 90 GB pm
• Hot Swap Capability: No
• MTBF: 50,000 Hours
• Power Source: AC Adapter Included
• Input Voltage: 100 - 240 AC
• Input Current: 0.6A
• Output Voltage: 12V DC
• Output Current: 2A
• Center Tip Polarity: Positive
• Plug Type: M
• Power Consumption (In Watts): 0.1W

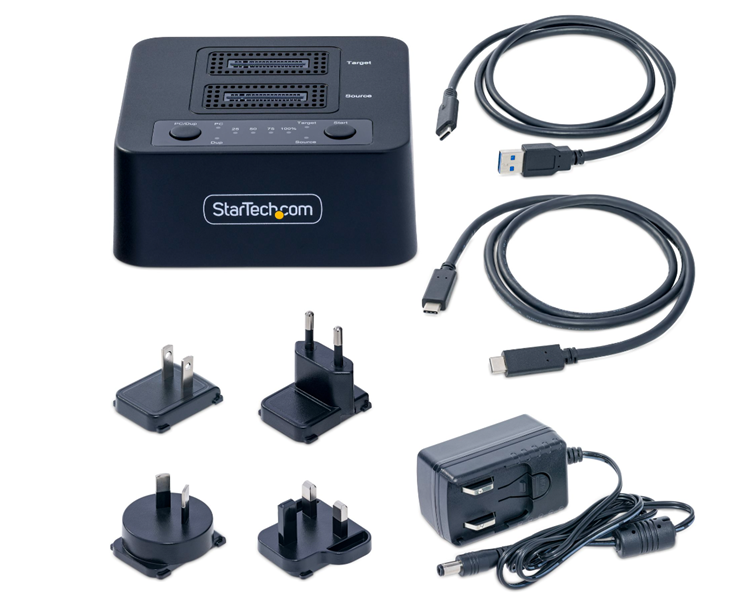

• Included in Package: 1 - M.2 Drive Duplicator Dock, 1 - 3.3ft (1m) USB-C to USB-C Cable, 1 - 3.3ft (1m) USB-A to USB-C Cable, 1 - Universal Power Adapter (NA/EU/UK/ANZ), 1 - Quick-Start Guide
• Warranty: 2 Years
