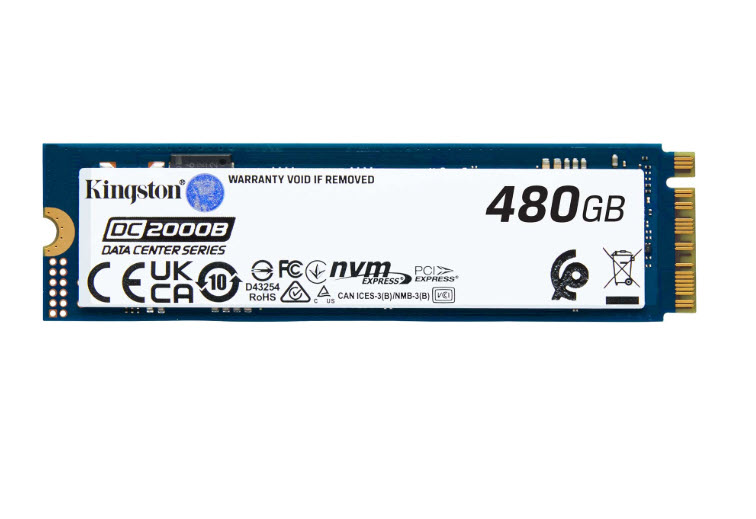

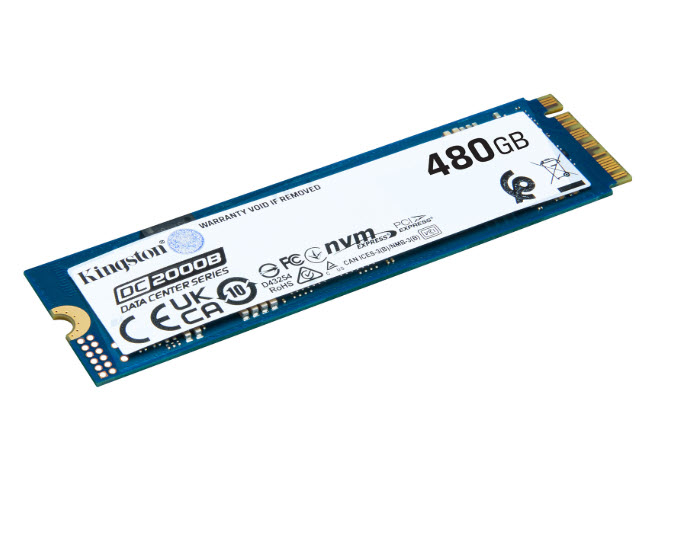

DC2000B 480GB, PCIe 4.0 NVMe M.2 2280
Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD using the latest Gen 4x4 PCIe interface with 112-layer 3D TLC NAND. Ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) to preserve valuable front-loading drive bays, as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes hardware-based on-board power loss protection (PLP). New for DC2000B is an integrated aluminum heatsink that offers broader thermal compatibility for a wide range of systems. DC2000B delivers low latency and excellent IO consistency to handle various workloads from boot drive applications to high-speed application caching. DC2000B is rated at 0.4 DWPD write endurance and carries a 5-year warranty.
PCIe 4.0 NVMe Gen 4x4 performance
Hardware-based power loss protection
Latency and IOPS consistency
Designed for data center environments
Highlights
- Capacity: 480 GB
- Form Factor: M.2 2280
- Interface: PCIe 4.0 x4 NVMe
- NAND: 3D TLC
- Sequential Read/Write: 7000/800 MBs
- Steady-State 4k Read/Write: 530000/32000 IOPS
- Total Bytes Written (TBW): 350 TBW
- Latency Read (Avg): 240 GB-960 GB: 70µs
- Latency Write (Avg): 480GB – 29µs
- Power Loss Protection (Power Caps): Yes
- Enterprise SMART tools: Reliability tracking, usage statistics, SSD life remaining, wear leveling, temperature
- Endurance: (0.4 DWPD/5yrs)
- Power Consumption: Average Read: 3.22W Average Write: 5.60W Max Read: 3.29W Max Write: 5.77W
- Vibration non-operating: 20G Peak (10–2000Hz)
- MTBF: 2 million hours
- Warranty/support: Limited 5-year warranty with free technical support
