SIIG HDMI HDbitT Over IP Extender with IR

HDMI HDbitT Over IP Extender with IR, 1080p@60Hz, Extends HDMI signal up to 394ft (120m) over a single Cat5e/6 cable with IR support with HDbitT transport protocol

Extend HDMI audio and video signals up to 394ft (120m) via Cat5e/6 cable for remote display/monitor using best network transport protocol and IR remote control of source devices

HDbitT is a new generation audio/video digital connection transmission protocol solution. Provides stable performance, long-distance transmission, and high-definition signal

This HDMI HDbitT over IP Extender with IR designed for transmission/security, HDMI signals up to 394ft (120m) through HDbitT protocol and Gigabit Ethernet switch to a remote HDMI display

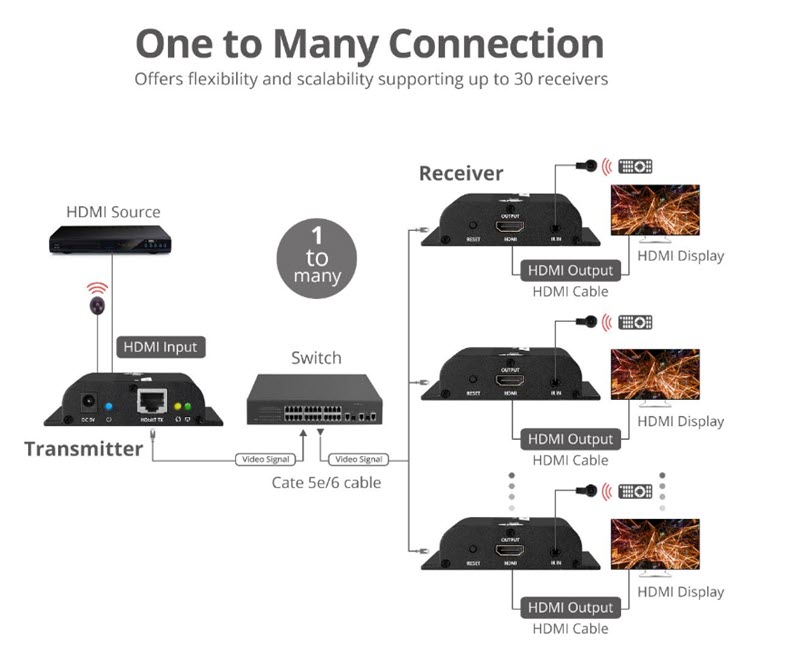

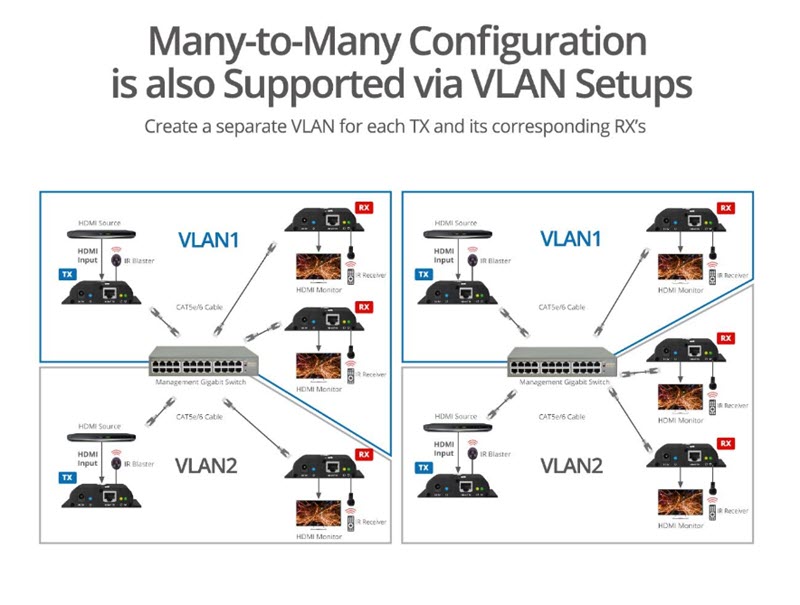

Works as a scalable TX/RX matrix over the dedicated IP network and allows up to 256 total units, and extends/splits HDMI signals to multiple displays. The additional receiver unit (part#- CE-H26U11-S1) is sold separately

Highlights

• Video: HDMI: 1 x input, 1 x output, Resolution: 1080p/1080i/720p/480i/480p @60Hz
• Transport protocol: HDbitT protocol: audio/video digital connection transmission protocol
• Audio: Stereo audio from HDMI, support 192Kbps bit rate

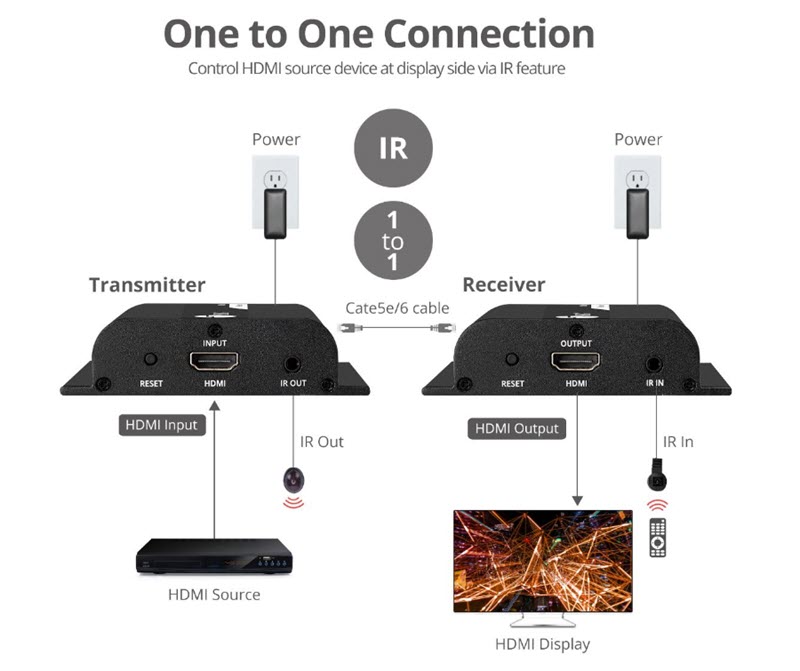

• IR pass-through: allows remote control of the HDMI source device and playback function at the remote display Full frequency: 20KHz to 60KHz
• Power adapter: Input: 100-240V/50-60Hz, Output: DC 5V/1A

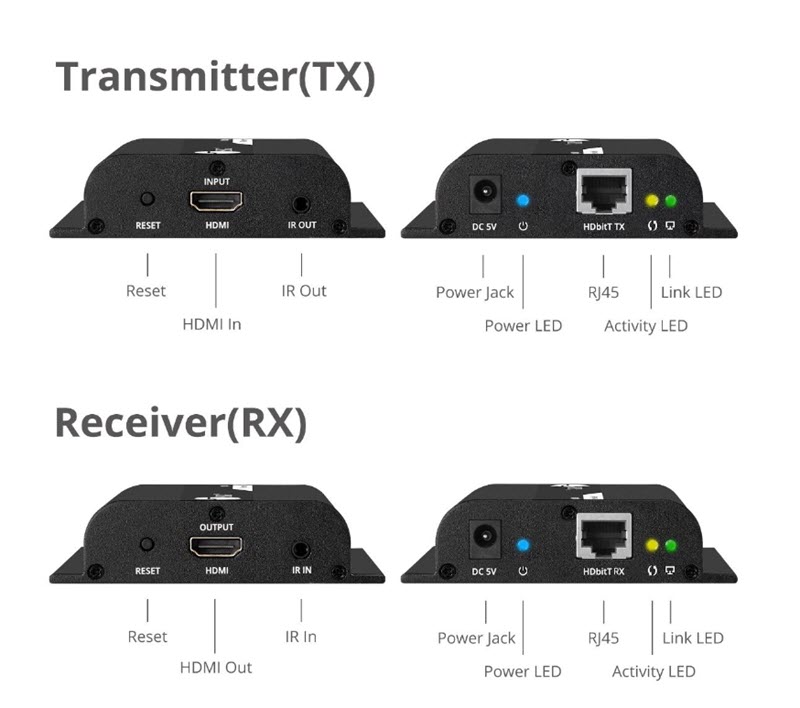

• Transmitter unit (TX): Dimensions: 3.70” (L) x 0.93” (H) x 3.81" (W), Weight: 0.33lbs, Color: black, Housing material: metal (Housing with wall mount design)
• eceiver unit (RX): Dimensions: 3.70” (L) x 0.93” (H) x 3.81" (W), Weight: 0.33lbs, Color: black, Housing material: metal (Housing with wall mount design)
• Warranty: 2 years limited
