4K60Hz HDMI over Cat6

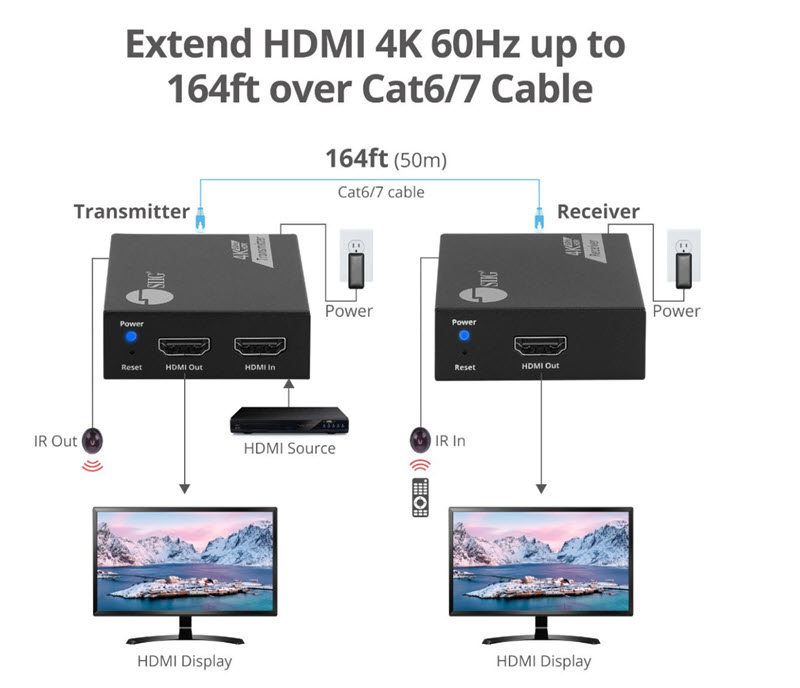

Extends HDMI signals from DVD players, game consoles, or HDMI-equipped computers up to 164 ft (50 meters) via Cat6/7 networking cable, ideal for home theater, conference room or other audio/video applications that require remote location setup
Supports Ultra High-Definition video resolution up to 4K@60Hz, HDCP 2.2, YUV 4:4:4, 8-bit, HDR 4:2:0 10-bit to deliver a crystal-clear picture quality, Deep color and 3D
The transmitter can work as an HDMI splitter with the additional HDMI output design and allows screen mirroring to the extended display
Supports EDID passthrough and auto downscaling, detects and configures video resolution from 4K to 1080p to the capabilities of each connected monitor.
Audio supports PCM 7.1 / DTS-HD/ Dolby Digital, support IR passthrough for 20KHz to 60KHz
Lightning Protection, Surge Protection, ESD Protection provides durability and minimizes EMI/RFI noise interference.
Premium metal housing offers excellent heat dissipation further enhances durability for dependable performance and long life
Plug-n-Play, no driver and software installation or hardware setup is required
Highlights
- Compliant with HDCP 2.2/1.4, support HDR 10
- Supports resolution: 4K (3840x2160)/1080p/1080i/720p/480i/480p @60Hz
- Maximum transfer rate: 18Gbps
- Audio: PCM 7.1 / DTS-HD/ Dolby Digital
- Transmission Distance: 4K@60Hz Up to 164ft/50M via Cat6/7 cable
- HDMI cable length: up to 5 meters (Input & output)
- IR Remote Control: 20-60KHz Frequency Range

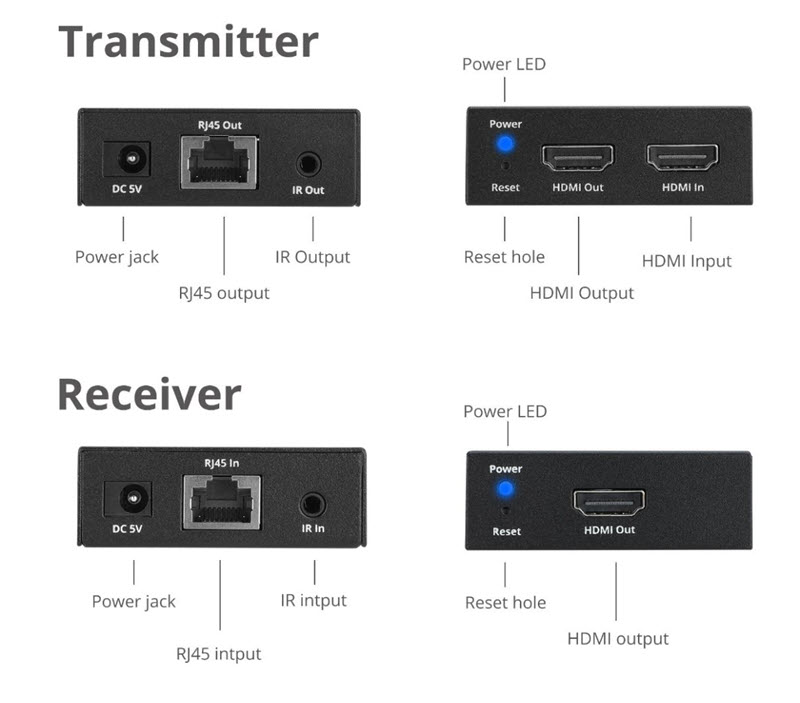

- Connectors Transmitting unit (TX): 1 x 19-pin HDMI, Type A, Female, Input,
1 x 19-pin HDMI, Type A, Female, Loop out,
1 x 3.5mm jack, IR Blaster,
1 x 8-pin, RJ45 Output,
1 x Reset hole,
1 x Power Jack
- Connectors Receiving unit (RX): 1 x 19-pin HDMI, Type A, Female, Output,
1 x 3.5mm jack, IR Receiver,
1 x 8-pin RJ45, Input,
1 x Reset hole,
1 x Power Jack
- Power adapter: Input: 100-240V / 50-60Hz, Output: DC 5V/0.5A

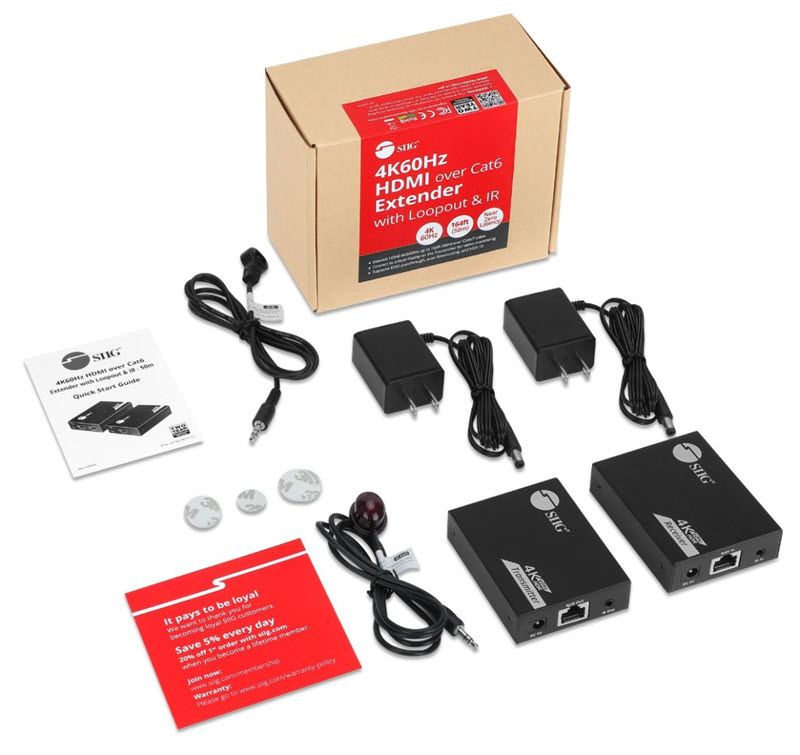

- Package contents: 4K60Hz HDMI over Cat6 Extender with Loop-out & IR - 50m,
Power adapter (x2),
IR Blaster extension cable,
IR Receiver extension cable,
Quick Start Guide
- Warranty: 2 Years Limited
