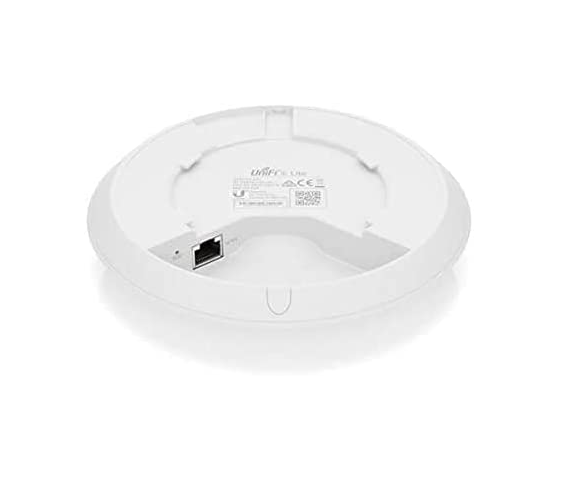

Ubiquiti UniFi 6 Lite Access Point

Compact, dual-band WiFi 6 access point with flexible mounting options.

Hardware

• Management interface: Ethernet/Bluetooth
• Networking interface: 1 x GbE RJ45 port
• Button: Factory reset
• LED: White/blue
• Power method: PoE, passive PoE (48V)
• Power supply: PoE 48V
• Supported voltage range: 44—57V DC
• Max. power consumption: 13.5W
• Max. TX power: 2.4 GHz 23 dBm, 5 GHz 23 dBm
• MIMO: 2.4 GHz 2 x 2, 5 GHz 2 x 2
• Throughput rate: 2.4 GHz 300 Mbps, 5 GHz 1201 Mbps
• Antenna gain: 2.4 GHz 2.8 dBi, 5 GHz 3 dBi

Software

• WiFi standards: 802.11a/b/g, WiFi 4 /WiFi 5 /WiFi 6
• Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID: 8 per radio
• VLAN: 802.1Q
• Advanced QoS: Per-user rate limiting
• Guest traffic isolation: Supported
• Concurrent clients: 300+

Supported Data Rates

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11ac: (WiFi 5) 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
• 802.11ax: (WiFi 6) 7.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
