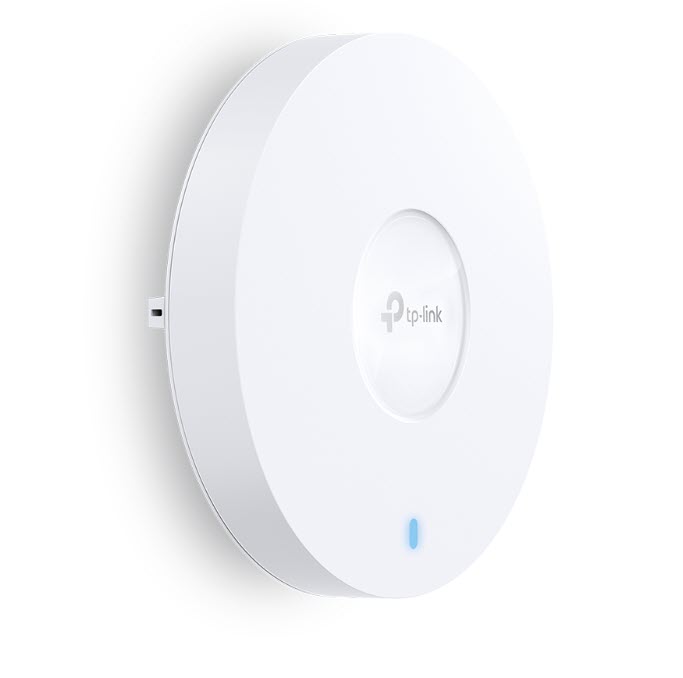

TP-Link AX11000 Ceiling Mount

Powered by WiFi 6E technology, the EAP690E HD ensures hyper-connectivity with steady performance in demanding environments. As the flagship product of Omada access points, EAP690E HD unlocks the full potential of client devices with blazing-fast quad-band speeds up to 10,544 Mbps. As an access point that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, EAP690E HD allows for remote and centralized management, anywhere, anytime.

WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. AX11000 WiFi 6 future-proofs your business. WiFi 6E further unlocks the full potential of WiFi 6.

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

They provide powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Highlights

• Interface: 1 x 10 Gigabit Ethernet (RJ45) Port (supports IEEE802.3bt PoE++)
• Button: Reset
• Power Supply: • 802.3bt PoE++ • 12 V DC
• Power Consumption: • EU: 47 W • US: 51 W
• Dimensions ( W x D x H ): 11.0 × 11.0 × 2.3 in (280 × 280 × 59.1 mm)
• Antenna Type: Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz_1: 4× 5 dBi • 5 GHz_2: 4× 5 dBi • 6 GHz: 4× 4.5 dBi

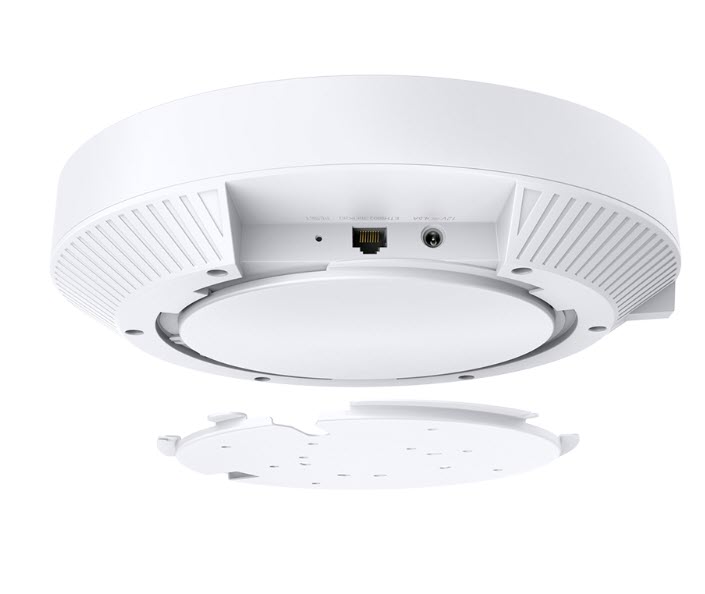

• Mounting: Ceiling /Wall Mounting (Kits included)
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Frequency: • 2.4 GHz • 5 GHz • 6 GHz
• Signal Rate: • 6 GHz: 4× 1201 Mbps • 5 GHz_1: 4× 600 Mbps • 5 GHz_2: 4× 600 Mbps • 2.4 GHz: 4× 287 Mbps
• Wireless Functions: • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)‡ • Seamless Roaming § • Omada Mesh§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
• Wireless Security: • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• Transmission Power: • CE: <20 dBm(2.4 GHz, EIRP), <23 dBm(5 GHz_1, EIRP), <30 dBm(5 GHz_2, EIRP), <23 dBm(6 GHz, EIRP), • FCC: <26 dBm (2.4 GHz), <26 dBm (5 GHz_1), <26 dBm (5 GHz_2), <25 dBm (6 GHz)
• Omada App: Yes
• Centralized Management: • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
• Cloud Access: Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
• Email Alerts: Yes
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• System Logging Local/Remote Syslog: Local/Remote Syslog
• SSH: Yes
• Web-based Management: HTTP/HTTPS
• L3 Management: Yes
• Multi-site Management: Yes
• Management: VLAN Yes
• Package Contents: • EAP690E HD • Power Adapter • Ceiling/Wall Mounting Kits • Installation Guide
