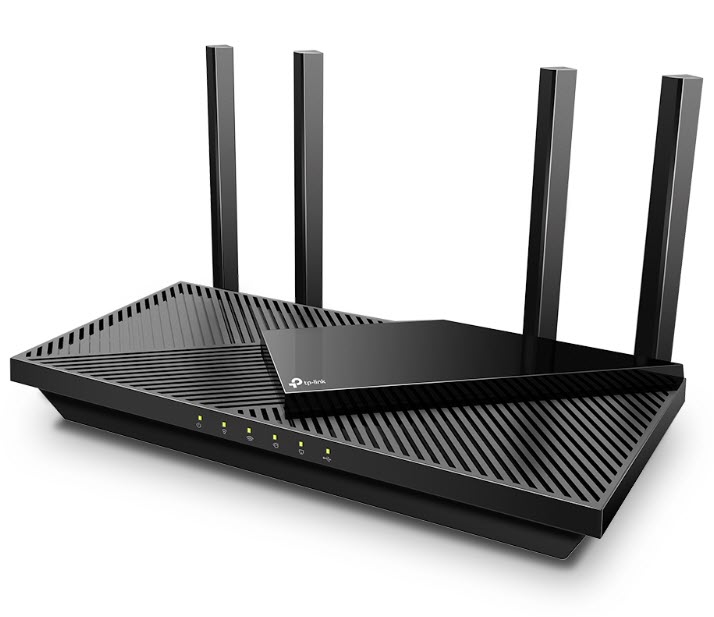

Archer AX21 AX1800

The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

Every application feels more fluid with drastically improved Wi-Fi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading.

Beamforming technology, high-power Front-End Module, and four high-gain antennas combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.

Easily handle dozens of devices streaming and gaming at the same time—OFDMA future-proofs your home networks by providing greater capacity to connect more devices.

OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.

Highlights

• Standards: Wi-Fi 6 - IEEE 802.11ax/ac/n/a 5 GHz - IEEE 802.11ax/n/b/g 2.4 GHz
• WiFi Speeds: AX1800 - 5 GHz: 1201 Mbps (802.11ax) - 2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range: 3 Bedroom Houses - 4 × Fixed High-Performance Antennas - Multiple antennas form a signal-boosting array to cover more directions and large areas - Beamforming - Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM - Improves transmission power to strengthen signal coverage
• WiFi Capacity: High - Dual-Band - Allocate devices to different bands for optimal performance, OFDMA - Simultaneously communicates with multiple Wi-Fi 6 clients, Airtime Fairness - Improves network efficiency by limiting excessive occupation, 4 Streams - Connect your devices to more bandwidth
• Working Modes: Router Mode - Access Point Mode
• Processor: Powerful CPU

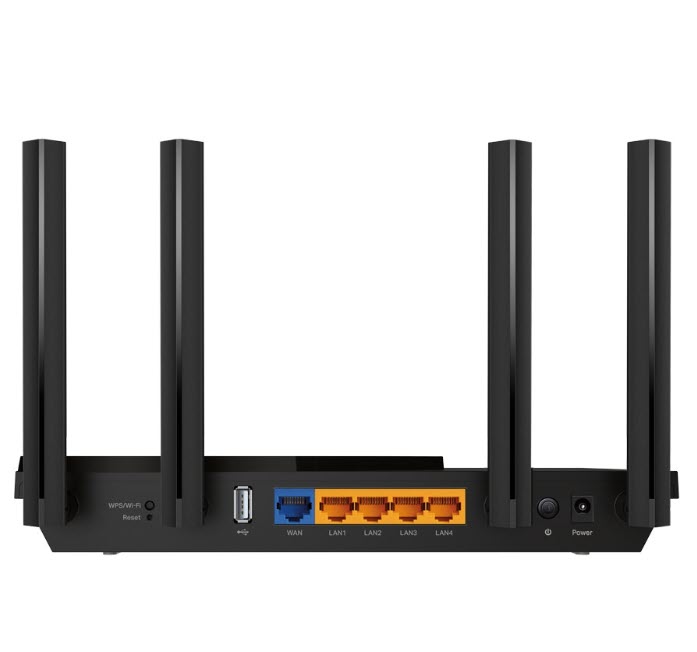

• Ethernet Po:rts: 1 x Gigabit WAN Port - 4 x Gigabit LAN Ports
• USB Support 1 x USB 2.0 Port, Supported Partition Formats: NTFS, exFAT, HFS+, FAT32, Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server
• Buttons: WPS/Wi-Fi Button - Power On/Off Button - Reset Button
• Power: 12 V ?2 A
• WiFi Encryption: WPA - WPA2 - WPA3 - WPA/WPA2-Enterprise (802.1x)
• Network Security: SPI Firewall - Access Control - IP & MAC Binding - Application Layer Gateway
• Guest Network: 1 x 5 GHz Guest Network - 1 x 2.4 GHz Guest Network
• VPN Server: OpenVPN - PPTP
• VPN Client: • Open VPN Client • PPTP VPN Client • L2TP VPN Client
• Protocols: IPv4 - IPv6
• OneMesh™: OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
• Parental Controls: URL Filtering - Time Controls
• WAN Types: Dynamic IP - Static IP - PPPoE - PPTP - L2TP
• Quality of Service: QoS by Device
• Cloud Service: Auto Firmware Upgrade - OTA Firmware Upgrade - TP-Link ID - DDNS
• NAT Forwarding: Port Forwarding - Port Triggering - DMZ - UPnP
• IPTV: IGMP Proxy - IGMP Snooping - Bridge - Tag VLAN
• DHCP: Address Reservation - DHCP Client List - Server
• DDNS: TP-Link - NO-IP - DynDNS
• Management: Tether App - Webpage
• WiFi Transmission Power: CE: <20dBm(2.4 GHz) - <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
• Package Contents: Wi-Fi Router Archer AX21 - Power Adapter - RJ45 Ethernet Cable - Quick Installation Guide
