PCE-AXE5400

ASUS provides a total solution for the latest WiFi 6E standard, from routers to wireless PCIe® cards. With carefully designed engineering and supporting software, the ASUS WiFi 6E total solution ensures optimized capabilities and performance.

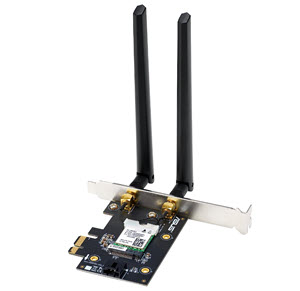

ASUS PCE-AXE5400 is a WiFi 6E PCIe® card that allows your PC to connect to a WiFi 6E router via the dedicated 6 GHz band. This means it will not compete for bandwidth with non-WiFi 6E devices. The 6 GHz band provides up to seven extra 160 MHz channels, providing more bandwidth, more flexibility, and less congestion.

With WiFi 6E's 6 GHz technology and wide 160 MHz channels, PCE-AXE5400 delivers wireless speeds that are up to 4.6X faster* than WiFi 5 devices, making it perfect for even the most bandwidth-demanding tasks. *Comparison based on a 2x2 160 MHz WiFi 6E PCIe card versus a 2x2 80 MHz WiFi 5 PCIe card

PCE-AXE5400 adds powerful OFDMA and MU-MIMO functionality your PC. Instead of making your PC wait in turn with other connected devices when transferring wireless data to the router, these technologies allow each device's data to be sent simultaneously. The result is increased network efficiency and lower latency for maximum WiFi performance.

Highlights

• Interface: PCI-Express x 1
• Network Standard: Bluetooth® 5.2, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 6E (802.11ax)
• Data Rate: 802.11a : up to 54 Mbps, 802.11b : up to 11 Mbps, 802.11g : up to 54 Mbps, WiFi 4 (802.11n) : up to 300 Mbps, WiFi 5 (802.11ac) (1024QAM) : up to 1733 Mbps, WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps, WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps, WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps
• Operating Frequency: 2.4GHz / 5GHz / 6GHz
• OS Support: OS Support : Windows 11 64-bit Windows 10 64-bit (support 2.4GHz & 5GHz band only)
• Package content: ASUS PCE-AXE5400 WLAN Card x 1, Low Profile Bracket x 1, Motherboard USB Cable x 1, Warranty Card, Antenna x 2, Quick Start Guide
