RT-AC1200GE
Powered by 5th-generation Wi-Fi (5G Wi-Fi), the 802.11ac chipset gives the RT-AC1200GE super-fast wireless speeds. RT-AC1200GE delivers up to 867 Mbps at 5 GHz, also with 2x2 300 Mbps at 2.4 GHz.
The RT-AC1200GE is equipped with four Gigabit LAN ports that can pump up to 4Gbps simultaneously. Smart TVs, game consoles, cable boxes, media players, NAS storage devices and more can now have their own dedicated ports, making the RT-AC1200GE your home's lag-free media hub.
ASUS QoS ensure inbound and outbound bandwidth on both wired and wireless connections, you could define your online gaming and HD streaming as highest priority, stop all your lagging issues.
ASUS RT-AC1200GE high power gigabit wireless router delivers incredible performance and coverage range. With ASUSWRT UI, quickly setup your network, customize user access, and monitor signal strength.
Highlights
- Model: RT-AC1200GE
- Network Standard: IEEE 802.11a,
IEEE 802.11b,
IEEE 802.11g,
WiFi 4 (802.11n),
WiFi 5 (802.11ac),
IPv4,
IPv6
- Data Rate: 802.11a : up to 54 Mbps,
802.11b : up to 11 Mbps,
802.11g : up to 54 Mbps,
WiFi 4 (802.11n) : up to 300 Mbps,
WiFi 5 (802.11ac) : up to 867 Mbps
- Antenna: External antenna x 4
- Transmit/Receive: MIMO technology,
2.4GHz 4x4,
5GHz 2x2
- Processor: 74Kc MIPS processor with 64 KB I-Cache and 32 KB D-Cache, targeted to operate at up to 775 MHz
- Memory: 16 MB Flash, 128 MB RAM
- Boosts speed: Beamforming: 802.11ac Explicit transmit beamforming (TxBF) and Legacy implicit TxBF for both beamformer and beamformee,
256-QAM high data rate,
20/40/80 MHz bandwidth
- Operating Frequency: 2.4G Hz / 5 GHz

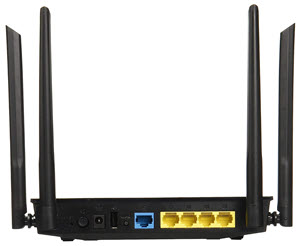

- Ports: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 2.0 x 1
- Button: WPS Button, Reset Button, Power Button
- LED Indicator: Power x 1,
Wi-Fi x 2,
WAN x 1,
USB x 1,
LAN x 4
- Power Supply:
AC Input : 100V~240V(50~60Hz),
DC Output : 12 V with max. 1.5 A current
- Router APP: ASUS Router APP
- Parental Control: Parental Control, Parental Control Customized Internet schedule
- Traffic Control: Bandwidth limiter,
Maximum Bandwidth limiter rule : 32,,
Traditional QoS,
Maximum Traditional QoS rule : 32,
Traffic Monitor,
Real-time traffic monitor,
Wired Traffic Monitor,
Wireless Traffic Monitor,
Traffic analysis period : Daily, Weekly, Monthly
- Wireless: IPv6,
Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise,
UTF-8 SSID,
Guest Network,
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3,
Guest Network Connection time limit,
Guest Network Encryption : Open system, WPA/WPA2-Personal,
WPS,
WiFi MAC address filter,
Maximum MAC filters : 64,
Wireless scheduler,
Airtime fairness,
RADIUS Client,
Universal beamforming,
Explicit beamforming
- WAN: Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP,
3G/4G LTE dongle,
Android tethering,
Port forwarding,
Maximum port forwarding rule : 64,
Port triggering,
Maximum port triggering rule : 32,
DMZ,
DDNS,
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
- LAN: DHCP Server,
IPTV,
Manually assign IP address,
Maximum manually assign IP address rule : 64
- VPN: VPN Client L2TP,
VPN Client OVPN,
VPN Client PPTP,
VPN Server OVPN,
VPN Server PPTP
- USB application: File System : FAT16, FAT32, NT3G, ext2, ext3,
3G/4G LTE dongle,
Safely Remove disk,
AiDisk,
Media Server,
Samba Server,
FTP Server,
Shared Folder privileges
- Administration: Operating mode : Accesspoint, Mediabridge, Router,
Operating system : ASUSWRT,
Free OS upgrade,
Firewall,
Maximum Firewall keyword filter : 64,
Maximum Firewall network service filter : 32,
Maximum Firewall URL filter : 64,
SSH,
Wake on LAN (WOL),
Configuration backup and restore,
Diagnosis tools,
Feedback system,
System log
- Package content: RT-AC1200GE Gigabit Wi-Fi Router,
RJ-45 Cable,
Quick Start Guide,
Power Adapter,
Warranty Card
