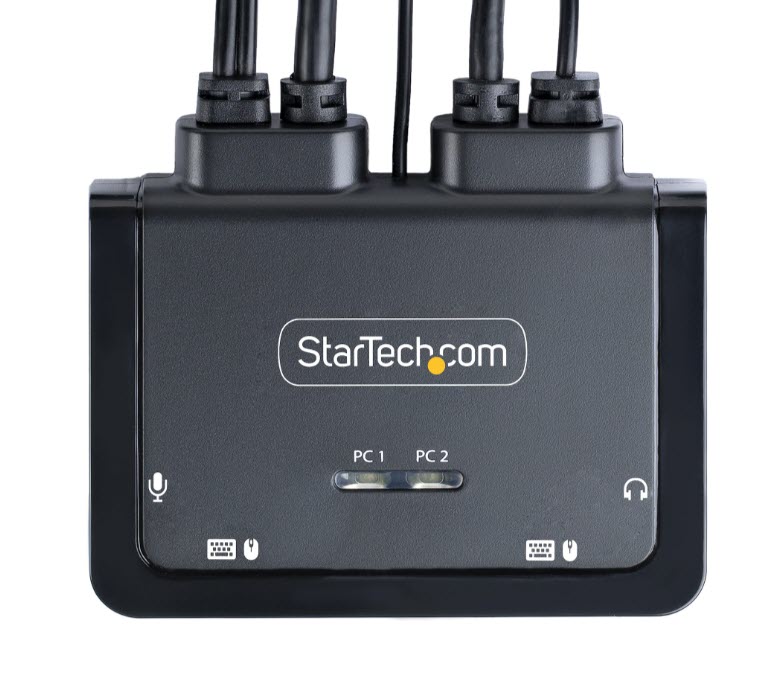

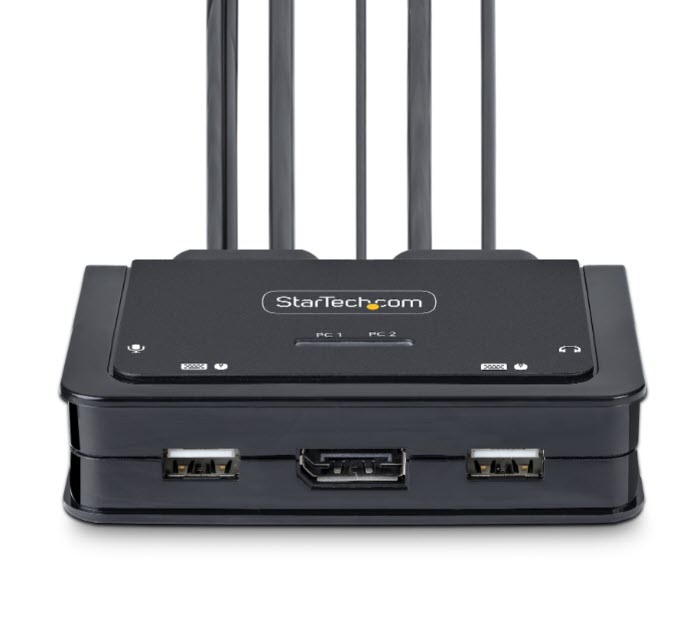

2-Port Hybrid USB-C DisplayPort Cable KVM Switch

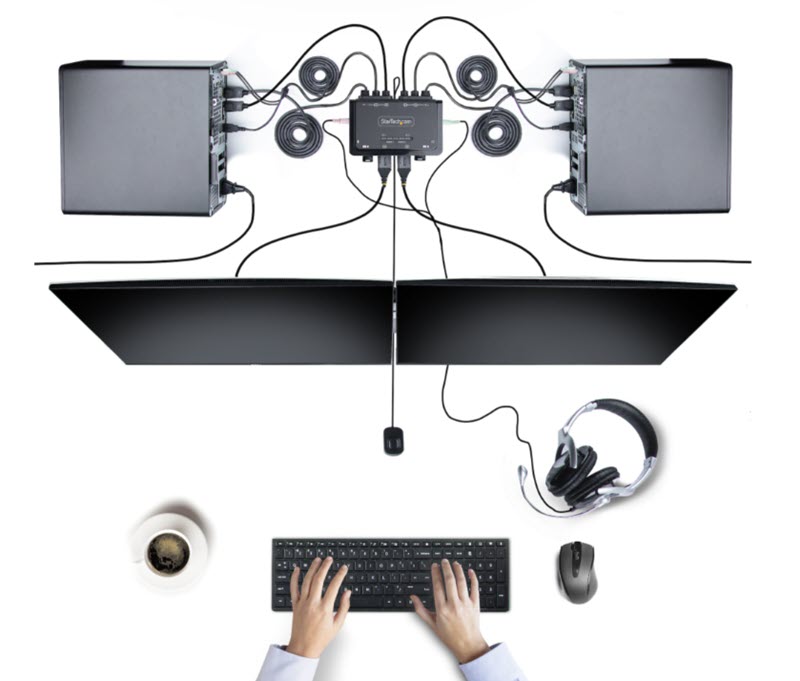

4K 60HZ HYBRID KVM SWITCH: Enables switching between a USB-A/DisplayPort desktop and a USB-C DP-Alt Mode enabled laptop to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz DisplayPort monitor

READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features built-in 6ft/1.8m USB-A, DisplayPort, and Audio host cables for PC1, & 4ft/1.2m USB-C and Audio host cables for PC2

COMPATIBILITY: 2-Port KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel, AMD, and Apple M1/M2 devices (MacBook/Mac Mini); Works with USB-C, USB4, Thunderbolt 3/4

SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other

Highlights

• Console Interface(s): 1 - DisplayPort, 2 - USB 2.0 Type-A (4 pin, 480Mbps), 2 - 3.5mm Stereo Female 3 pos
• Host Connectors: 1 - USB-C (DP Alt-Mode), 2 - 3.5mm Stereo Male 3 pos, 1 - DisplayPort, 1 - USB 2.0 Type-A (4 pin, 480Mbps)
• Audio: Yes
• KVM Ports: 2
• PC Interface: USB & USB-C
• PC Video Type: DisplayPort
• Number of Monitors Supported: 1
• Cables Included: Yes
• Chipset ID: SN8P2202SG
• Daisy-Chain: No
• LED Indicators: 1 - Solid Green: Selected PC is connected, 1 - Blinking Green: Selected PC is not detected
• On-Screen Display: No
• Video Revision: DisplayPort 1.2
• IP Control: No
• Hot-Key Selection: Yes
• Maximum Data Transfer Rate: 480Mbps (USB 2.0)
• Supported Resolutions: 4096 x 2160 @60Hz, 3840 x 2160 @60Hz, 5120 x 1440 @60Hz, 3440 x 1440 @60Hz, 2560 x 1440 @60Hz, 2560 x 1080 @60Hz, 1920 x 1200 @60Hz, 1920 x 1080 @60Hz
• Wide Screen Supported: Yes
• Audio Specifications: DisplayPort - 2 Channel Audio, Analog Stereo - 2 Channel Audio
• Auto Scan: 10, 20, 30, 40, 50, and 60 seconds
• Port Selection Support: Push Button, Hotkeys, and Software
• General Specifications: PC1 Cable Length (USB-C/Audio): 1.2m/4ft, PC2 Cable Length (USB-A/DisplayPort/Audio): 1.8m/6ft
• MTBF: 261,196 Hours
• Power Source: Bus Powered
• Included in Package: 1 - KVM Switch, 1 - 3.5mm 4 Position to 2x 3.5mm 3 Position Headset Adapter, 1 - Quick-Start Guide
• OS Compatibility: Windows 7, 8/8.1, 10, 11, macOS 10.12 - 10.15, 11, 12, ChromeOS
• Warranty: 2 Years
