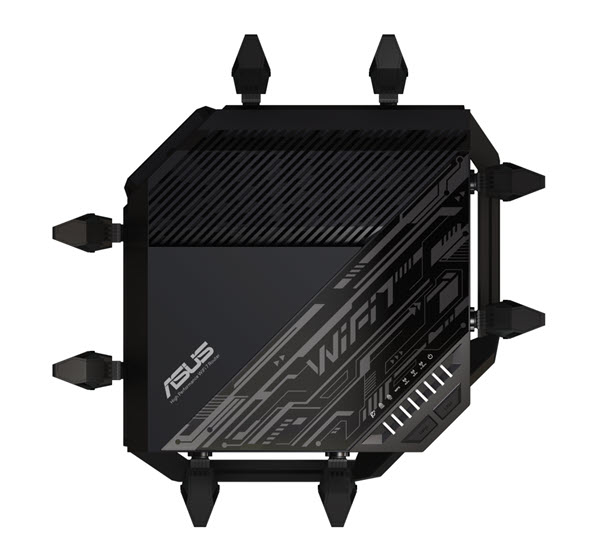

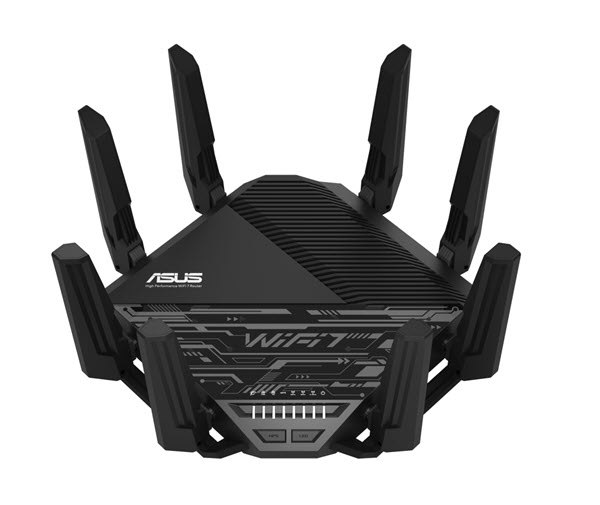

RT-BE96U

2X Higher Capacity: WiFi 7 introduces all-new ultrawide 320 MHz channels, doubling data transmission capacity. You can think of networking as a virtual freeway and the doubled bandwidth as a doubling of the number of lanes. Now larger vehicles are allowed to get on the freeway and can pack more data than ever before.

Before WiFi 7, transmissions were limited to one band, such as 2.4 GHz or 5 GHz. Multi-Link Operation (MLO) allows a device to simultaneously connect on multiple bands, enabling faster speeds by aggregating bandwidth, with more reliable WiFi connections on multiple concurrently used bands. Connecting to multiple SSIDs in this manner also enables “seamless switching” where your data will automatically be allocated to the most suitable band to reduce latency.

RT-BE96U sending out one 5GHz band and one 6GHz band, two bands aggregates with simultaneous MLO technology for larger bandwidth, while 5GHz band and 6GHz combing into one with alternating MLO technology for seamless switch. Two bands received by smart phone, smart phone is connected to 5GHz and 6GHz band simultaneously.

The RT-BE96U’s dual 10 Gbps ports make it a great choice for servers or NAS devices. These are more convenient than simply combining multiple gigabit Ethernet ports, and they help increase your available bandwidth to avoid data bottlenecks throughout your whole network. Users are also empowered to leverage multiple high-speed internet service providers.

Highlights

• Product Segment: BE19000 ultimate BE performance : 1376+5764+11529 Mbps
• Network Standard: EEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 6E (802.11ax), WiFi 7 (802.11be), IPv4, IPv6
• Data Rate: WiFi 7 (802.11be) (2.4Ghz): up to 1376 Mbps, WiFi 7 (802.11be) (5Ghz): up to 5764 Mbps, WiFi 7 (802.11be) (6Ghz): up to 11529 Mbps
• Antenna: External antenna x 8
• Transmit/Receive: 2.4GHz 4x4, 5GHz 4x4, 6GHz 4x4
• Processor: 2.6GHz quad-core processor
• Memory: 256 MB Flash and 2 GB RAM
• Boosts speed: OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 4096-QAM high data rate, 20/40/80/160/320 MHz bandwidth
• Operating Frequency: 2.4 GHz / 5 GHz / 6 GHz

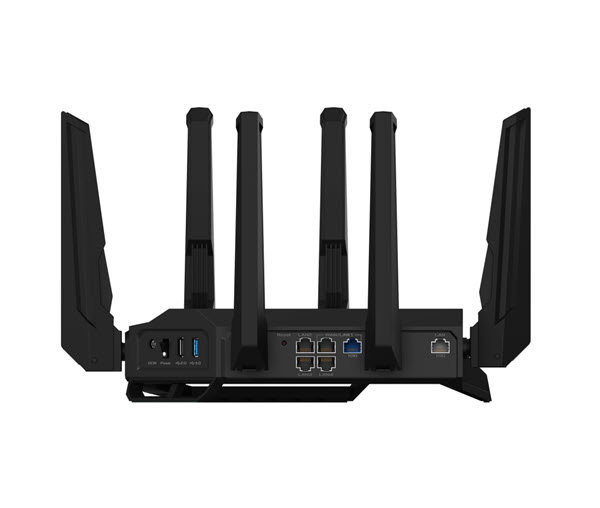

• Ports: 1 x 10Gbps for WAN/LAN + 1 x RJ45 10/100/1000Mbps for WAN/LAN, 3 x RJ45 10/100/1000Mbps for LAN, 1 x 10Gbps for LAN, USB 3.2 Gen1 x1, 2.0 x1
• Button: WPS Button, Reset Button, Power Switch, LED on/off Button
• LED Indicator: WAN x 1, 10G LAN x 1, 1G LAN x 1, WPS x 1, 6GHz x 1, 5GHz x 1, 2.4GHz x 1, Power x 1
• Power Supply: AC Input : 110V~240V(50~60Hz)DC Output : 19 V with max. 3.42 A current ; 19.5 V with max. 3.33 A current
• AiMesh: AiMesh, Primary AiMesh router, AiMesh node
• Router APP: ASUS Router APP
• Game: Game Boost / Acceleration
• Alexa: Support Alexa skill
• AiProtection: AiProtection Pro, AiProtection, Malicious site blocking, Two-Way IPS, Infected Device Prevention and Blocking
• Parental Control: Parental Control, Parental Control Customized Internet schedule, Maximum Parental Control profile : 64, Maximum Parental Control content filter rule : 64
• Traffic Control: Adaptive QoS, Bandwidth Monitor, Bandwidth limiter, Maximum Bandwidth limiter rule : 32, Traditional QoS, Traffic Monitor, Real-time traffic monitor, Wired Traffic Monitor, Wireless Traffic Monitor, Traffic Analyzer, Traffic analysis period : Daily, Weekly, Monthly, Website history
• Wireless: IPv6, MU-MIMO, Wi-Fi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System & OWE, UTF-8 SSID, Guest Network, Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz x 3, 6 GHz x 3, Guest Network Connection time limit, Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal, WPS, WiFi MAC address filter, Maximum MAC filters : 64, Wireless scheduler, Airtime fairness, RADIUS Client, Universal beamforming, Explicit beamforming
• WAN: Internet connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP, Dual WAN, WAN Aggregation, 3G/4G LTE dongle, Android tethering, Port forwarding, Maximum port forwarding rule : 64, Port triggering, Maximum port triggering rule : 32, DMZ, DDNS, NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay, Let's Encrypt, Safe browsing, DNS-over-TLS
• LAN: DHCP Server, IPTV, LAN Link Aggregation, Manually assign IP address, Maximum manually assign IP address rule : 128
• VPN: Instant Guard, VPN Client L2TP, VPN Client OVPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server OVPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
• USB application: File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, 3G/4G LTE dongle, Safely Remove disk, AiCloud, Download master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder privileges
• Administration: Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge, Operating system : ASUSWRT, Free OS upgrade, Firewall, Maximum Firewall keyword filter : 64, Maximum Firewall network service filter : 32, Maximum Firewall URL filter : 64, SSH, Wake on LAN (WOL), Configuration backup and restore, Diagnosis tools, Feedback system, System log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Security Scan, Auto Firmware Update
• Package content: RT-BE96U WiFi router, RJ-45 cable, Power adapter, Quick Start Guide, Warranty card
