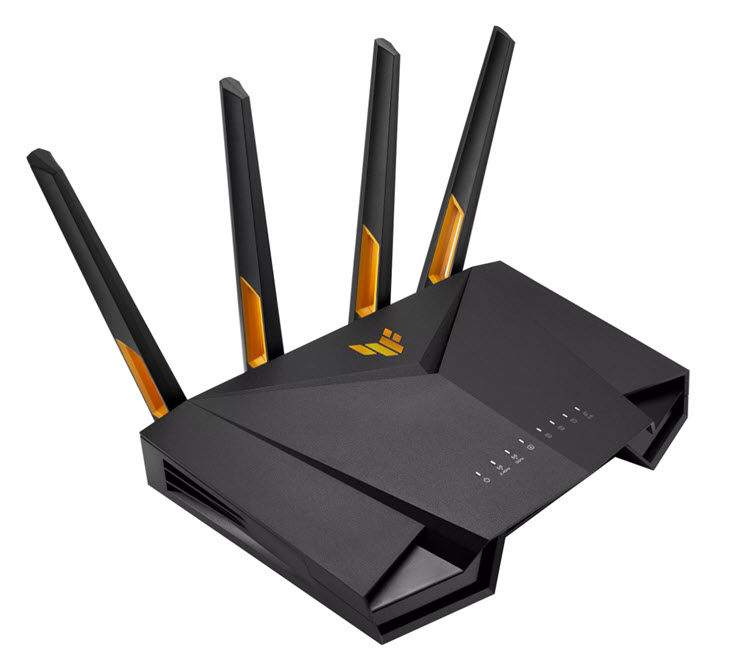

TUF Gaming AX4200
TUF Gaming AX4200 is designed to give you stable and fast wireless and wired connections in device-dense environments. It's a router that benefits all your devices, from laptops, smartphones, and game consoles right down to all the IoT devices in your home.
WiFi 6 provides faster wireless speeds with OFDMA, BSS coloring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It's perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices.
TUF Gaming AX4200 can unlock up to 2Gbps of internet bandwidth by 2.5Gbps port, and aggregating two separate 1Gbps internet services using the LAN1 and LAN2 ports.*
*Link Aggregation (802.3ad) refers to the combining throughput of multiple devices.
We've designed TUF Gaming AX4200 to give you the widest possible WiFi coverage. It uses OFDMA, a new technology in WiFi 6 that allows signals to travel further than they can in WiFi 5. Along with other enhancements like beamforming, which focuses the signal towards each device, TUF Gaming AX4200 reaches every corner.
TUF Gaming AX4200 is engineered to deliver maximum WiFi performance. The vent location and heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical durability.
VPN Fusion lets you run both a VPN and an ordinary internet connection - simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.
Highlights
- Network Standard:
IEEE 802.11a,
IEEE 802.11b,
IEEE 802.11g,
WiFi 4 (802.11n),
WiFi 5 (802.11ac),
WiFi 6 (802.11ax),
IPv4,
IPv6
- Product Segment: AX4200 ultimate AX performance: 574+3603 Mbps
- AX technology: Yes
- Data Rate: 802.11a : up to 54 Mbps,
802.11b : up to 11 Mbps,
802.11g : up to 54 Mbps,
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps,
WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps
- Antenna: External antenna x 4
- Transmit/Receive: 2.4GHz 2x2, 5GHz 3x3
- Processor: 2.0 GHz quad-core processor
- Memory: 256 MB Flash, 512 MB RAM
- Boosts speed: OFDMA (Orthogonal Frequency Division Multiple Access),
Beamforming: standard-based and universal,
1024-QAM high data rate,
20/40/80/160 MHz bandwidth
- Operating Frequency: 2.4GHz / 5GHz

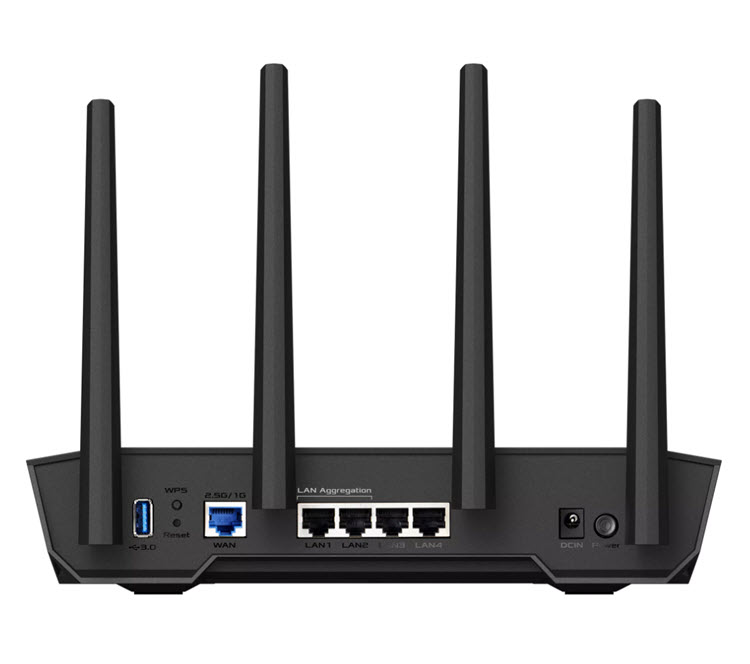

- Ports: RJ45 for 2.5 Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1
- Button: WPS Button, Reset Button, Power Button
- LED Indicator: Power x 1,
2.4G x 1,
5G x 1,
LAN x 4,
WAN x 1
- Power Supply: AC Input : 100V~240V (50~60Hz), DC Output : 12 V with max. 2.5 A current
- AiMesh: AiMesh • Primary AiMesh Router • AiMesh Node
- Game: Game Boost / Acceleration
- AiProtection: AiProtection,
Malicious Site Blocking,
Two-Way IPS,
Infected Device Prevention and Blocking
- Parental Control: Allows you to block access to unwanted websites and apps. Customized Internet Schedule
- Traffic Control: Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter,
Maximum Bandwidth limiter rule : 32
• Traditional QoS,
Maximum Traditional QoS rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor,
Traffic Analyzer,
Traffic analysis period : Daily, Weekly, Monthly
• Website History
- Wireless: Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise,
UTF-8 SSID,
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3,
Guest Network Connection Time Limit,
WPS,
WiFi MAC address filter,
Maximum MAC filters : 64,
Wireless scheduler,
Airtime fairness,
RADIUS Client,
Universal beamforming,
Explicit beamforming
- WAN: Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP,
Dual WAN,
WAN Aggregation,
3G/4G LTE dongle,
Port forwarding,
Maximum port forwarding rule : 64,
Port triggering,
Maximum port triggering rule : 32,
DMZ,
DDNS,
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay,
Safe Browsing,
DNS-over-TLS
- LAN: DHCP Server,
IPTV,
LAN Link Aggregation,
Manually assign IP address,
Maximum manually assign IP address rule : 64
- VPN: VPN Client L2TP,
VPN Client Open VPN,
VPN Client PPTP,
VPN Client WireGuard,
VPN Server IPSec,
VPN Server Open VPN,
VPN Server PPTP,
VPN Server WireGuard,
VPN Fusion
- USB application: File System : HFS+, NTFS, vFAT, ext2, ext3, ext4,
3G/4G LTE dongle,
Safely Remove disk,
AiCloud,
Download master,
AiDisk,
Media Server,
Time Machine,
Samba Server,
FTP Server,
Shared Folder privileges
- Administration: Operating mode : Wireless router mode,
Access point mode,
Media bridge mode,
Operating system : ASUSWRT,
Firewall,
Maximum Firewall keyword filter : 64,
Maximum Firewall network service filter : 32,
Maximum Firewall URL filter : 64,
SSH,
Wake on LAN (WOL),
Configuration backup and restore,
Diagnosis tools,
Feedback system,
System log,
New Device Connect Notification,
Login Captcha,
Connection Diagnosis,
Security Scan,
Auto Firmware Update
