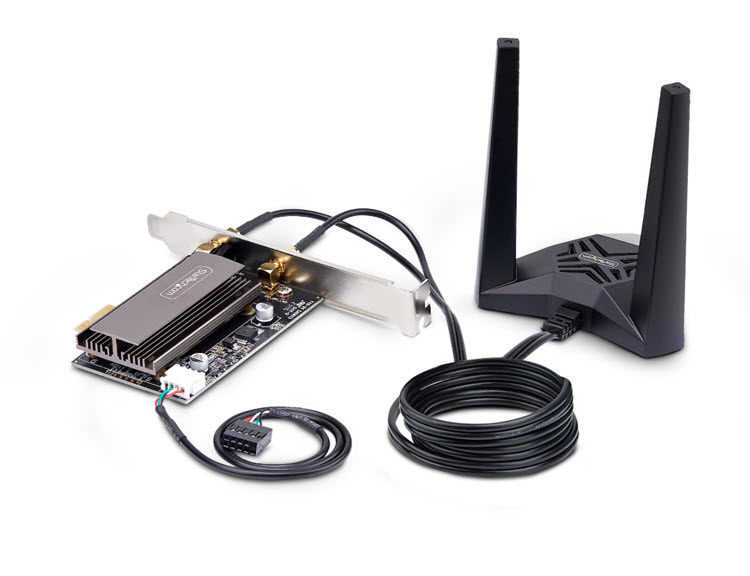

Wi-Fi 6E PCIe Network Card with Bluetooth 5.3

WIFI 6E NETWORK CARD: Add Wi-Fi 6E capability to a desktop, enabling high-speed low-latency wireless communication with reduced interference and less congestion in the 6GHz band (up to 2400Mbps)

COMPATIBILITY: PCIe 3.0 Wi-Fi Card is backwards compatible with 802.11a/b/g/n/ac standards on 5Ghz (2402Mbps) and 2.4Ghz (574Mbps) bands; Low-profile bracket included for small form-factor systems; NOTE: Windows 10 does not support the 6Ghz band

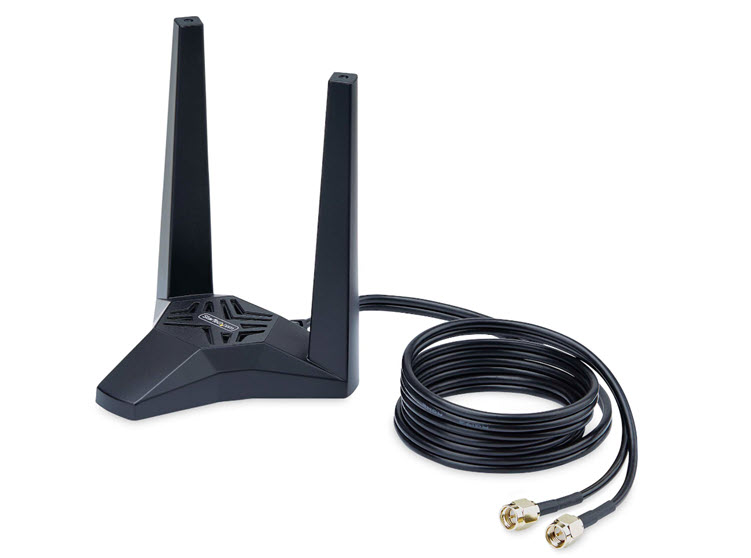

ANTENNA BASE: Included freestanding magnetic base with 3.6ft attached cable enables flexible placement of the antennas, allowing for optimal signal reception and reduced interference; Features a rubber base for grip when used on non-metallic surfaces

BLUETOOTH 5.3: Enables fast data transfer (2Mbps) with extended range, improved connection stability, and lower power consumption; Included USB header cable must connect to an available 9-Pin USB 2.0 header on the motherboard for Bluetooth functionality

SECURE & RELIABLE: OFDMA and MU-MIMO boost network performance by reducing latency and enhancing data transfer efficiency; WPA3/WPA2 enhance the security of personal password protection; Metal heatsink aids heat dissipation for optimal performance

Highlights

• Internal Ports: 1 - 4 pin IDC (USB Motherboard Header) Female
• External Ports: 2 - RP-SMA (Coax, Reverse Polarity SubMiniature A)
• Host Connectors: 1 - PCI Express x1
• Interface: Wireless Ethernet
• Bus Type: PCI Express
• Card Type: Standard Profile (LP bracket incl.)
• Antenna Configuration: External Magnetic Base w/2x 5dBi Wi-Fi 6E Tri-Band Antennas
• Industry Standards: IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b, PCI Express 3.0, Bluetooth 5.3 Class 2, BDR Basic Data Rate, EDR Enhanced Data Rate, BLE Bluetooth Low Energy, USB 2.0
• Chipset ID: Intel - AX210
• LED Indicators: 1 - Solid Green: PCIe Wi-Fi Card is installed and receiving power
• Maximum Data Transfer Rate: Wireless, 2400Mbps (6Ghz), 2400Mbps (5Ghz), 574Mbps (2.4Ghz), Bluetooth, 2Mbps
• ESD Protection: +/-8kV (Contact), +/-15kV (Air)
• Full Duplex Support: Yes
• Promiscuous Mode: Yes
• Frequency: 2.4~6Ghz
• Modulation: 1024-QAM
• Security Features: WPA3 personal and enterprise including WPA2 transition mode AES
• MTBF: 50,000 Hours
• Supported Protocols: Intel vPro, Intel AMT
• Power Source: Bus Powered
• OS Compatibility: Windows 10*, 11, Linux 6.2 and up - LTS Versions Only, *Windows 10 does not support the 6Ghz wireless band

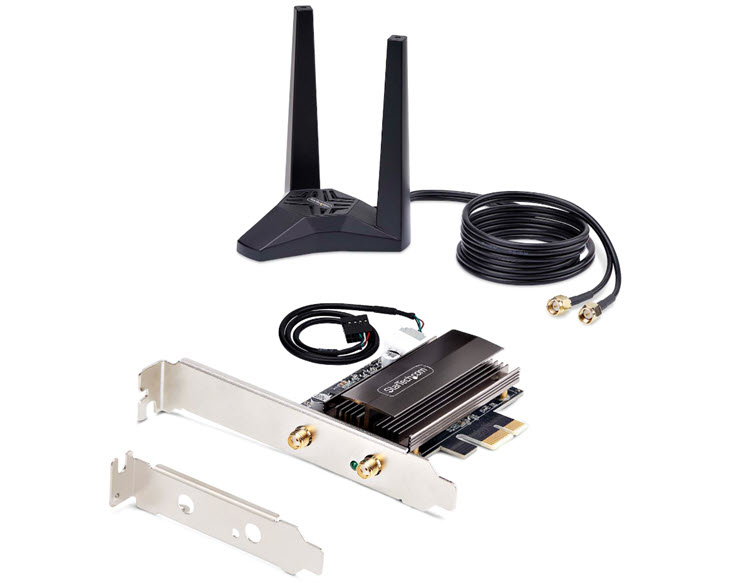

• Included in Package: 1 - PCIe Wi-Fi Card, 1 - Magnetic Antenna Stand, 1 - Bluetooth Cable, 1 - Low-Profile Bracket with 2 x Screws, 1 - Quick-Start Guide
• Warranty: 2 Years
