ASUS ExpertWiFi EBG15

Easier-Than-Ever Setup — Convenient and easy router management via web browser or the ASUS ExpertWiFi mobile app through Bluetooth setup.

VLAN for Added Security —Each of the Ethernet ports can be assigned to one or more VLAN IDs that provides additional security for your business.

Up to 3 WAN Ethernet Ports – 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balancing optimize multi-line broadband usage.

Backup WAN for Stable Connectivity –The USB port can be used as a backup WAN by connecting it to a mobile phone with hotspot to maintain a reliable internet connection.

Commercial-Grade Network Security and VPN — Secure public WiFi connections with Safe Browsing and VPN features. Enjoy a free-subscription ASUS AiProtection Pro, including robust intrusion prevention system (IPS) features like deep packet inspection (DPI) and virtual patching to block malicious traffic.

Highlights

• Model Name: EBG15
• Network Standard: IEEE 802.1p, IEEE 802.1q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IPv4, IPv6
• Antenna: Internal BT antenna x 1
• Processor: 1.8GHz Dual-core ARMv8
• Memory: 256 MB Flash, 512 MB RAM
• Operating Mode: AiMesh Node Mode

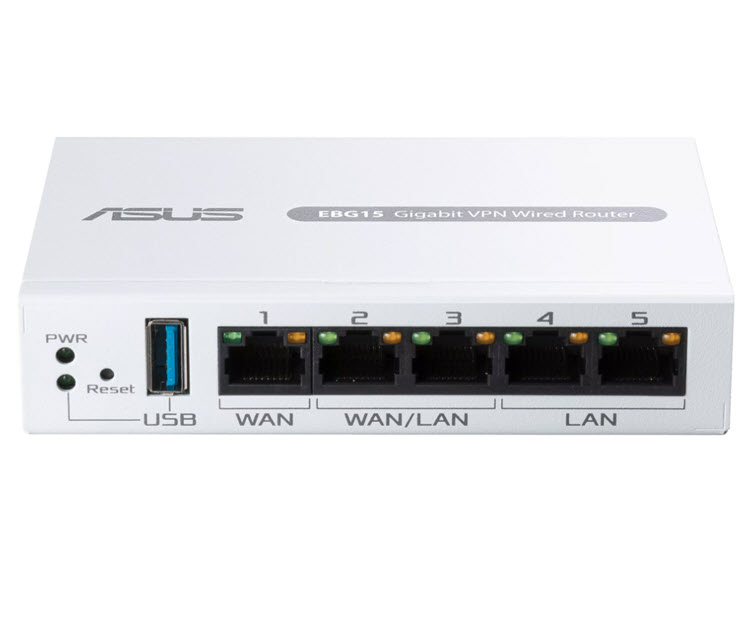

• I/O Ports: Gigabit WAN Port x 1, Gigabit LAN Port x 4 (Changable WAN/LAN Port x 2), USB 3.2 Gen 1 x 1
• Buttons: Reset Button
• LED Indicator: Power x 1, USB x 1

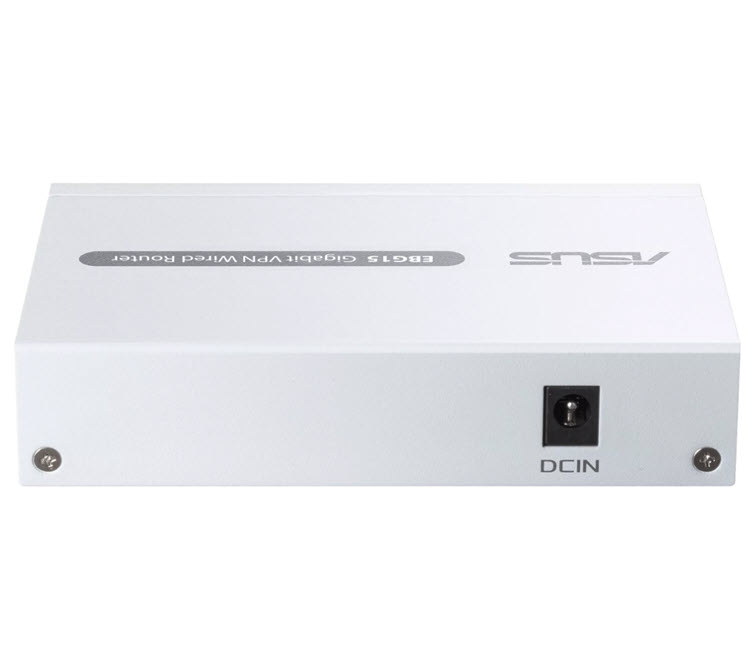

• Power Supply: AC Input : 110V~240V (50~60Hz), DC Output : 12 V with max. 1.5 A current
• Device Access Control: "Allow you to block access to unwanted websites and apps.", Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule, • Maximum Device Access Control Profile :12 • Maximum Device Access Control Content Filter Rule :12
• Dashboard: Dashboard
• Self-Defined Network: "You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings." • Employee • Guest Portal • Guest Network • Scheduled Network • IoT Network • VPN Network • Maximum Self-Defined Network Rule :16, VLAN, Bandwidth Limiter, AP isolate, DNS Server Connection
• Security: AiProtection, VPN, Let's Encrypt, DNS-over-TLS, SSH, Firewall • Maximum Firewall Keyword Filter :64 • Maximum Firewall Network Service Filter :32 • Maximum Firewall URL Filter : 64
• AiProtection: AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking
• VPN: VPN Client L2PT, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark
• Traffic Control: Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter, Traditional QoS, Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor, Traffic Analyzer • Website History
• WAN: Internet Connection Type • PPPoE • PPTP • L2TP • Automatic IP • Static IP • IPSec, Dual WAN, Multi WAN Group, WAN Aggregation, 3G / 4G LTE Dongle, 4G / 5G Auto Mobile Tethering, Port Forwarding • Maximum Port Forwarding Rule : 64, Port Triggering • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough • PPTP Pass-Through • L2TP Pass-Through • IPSec Pass-Through • RTSP Pass-Through • H.323 Pass-Through • PPPoE Relay
• LAN: DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manually Assign IP Address, Wake on LAN (WOL), VLAN
• USB application: 4G / 5G Auto Mobile Tethering, Safely Remove Disk, Media Server, Samba Server, FTP Server, Shared Folder Privileges
• User Interface: WEB: ASUSWRT, APP: ASUS ExpertWiFi APP
• Administration: Configuration Backup and Restore, Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
• Package Content: ExpertWiFi EBG15, RJ-45 cable, Power adapter, Warranty card, Quick start guide
