2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4, 2x USB 10Gbps Ports, 4x USB HID Ports, Hotkey Switching, TAA Compliant
DUAL 8K 60HZ WITH HDR: Control two USB and DisplayPort-enabled desktops from a shared keyboard, mouse, audio device, and dual 8K 60Hz, 4K 144Hz, or 4K 120Hz DP 1.4 monitors; Supports HDR (up to 10-bit YCbCr 4:4:4); DSC required for maximum performance
FAST & COMPATIBLE SWITCHING: USB Emulation enables fast switching of up to four USB HID devices between two desktops/workstations; USB Emulation ensures compatibility with combo keyboards/mice; Works with any operating system and all hardware platforms
2 X FASTER DATA TRANSFER: Two USB 3.2 Gen 2 (10Gbps) ports enable faster transfer speeds than USB Gen 1 (5Gbps) KVMs; Ideal for transferring large files or editing high-resolution photos/videos on external storage; 2x USB-C to USB-A 10Gbps cables included
MULTIPLE SWITCHING OPTIONS: Universal KVM Switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer, while controlling the other
DURABLE DESIGN: Durable steel housing helps prevent Electro-Magnetic Interference (EMI) enhancing stability/reliability of the KVM; Sturdy construction is ideal for installation in various environments; 8kV Air/6kV Contact ESD protection; TAA Compliant
Highlights
-

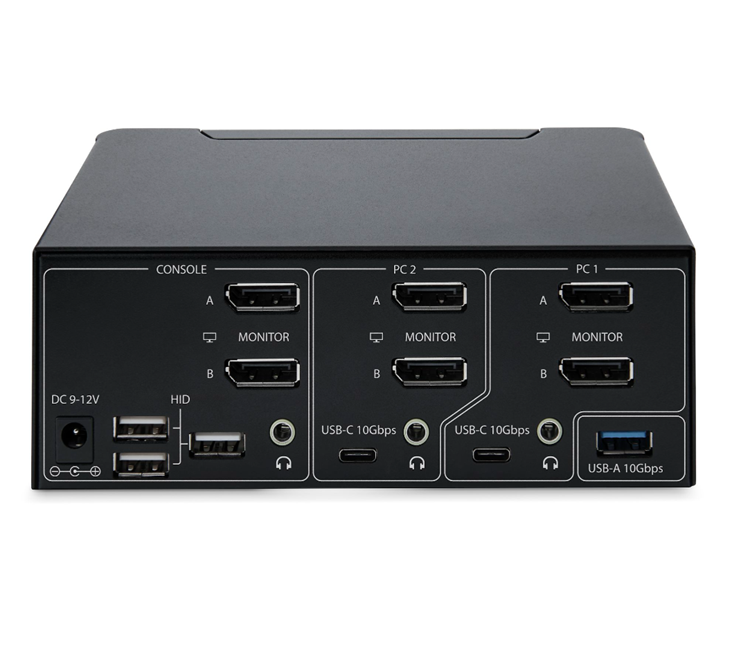

Console Interface(s): 2 - USB 3.2 Type-A (9 pin, Gen 2, 10Gbps),
2 - DisplayPort,
4 - USB Type-A (4 pin; HID Port) USB 1.1,
1 - 3.5mm Stereo Female 3 pos
1 - M-Type Barrel (Inner Diameter: 2.1 mm, Outer Diameter: 5.5 mm)
- Audio: Yes
- KVM Ports: 2
- PC Interface: USB
- PC Video Type: DisplayPort
- Number of Monitors Supported: 2
- Rack-Mountable: No
- Cables Included: Yes
- Chipset ID: Genesys Logic - GL3590
-
LED Indicators: 1 - PC LED:
Solid Green when a Host Connection is detected,
Blinking Green when a Host connection is not detected,
- 1 - Hub LED:
Solid Red when the PC Port is selected
- On-Screen Display: No
- Video Revision: DisplayPort 1.4
- IP Control: No
- Hot-Key Selection: Yes
- Maximum Data Transfer Rate: 10Gbps
- Maximum Digital Resolutions: 8K 60Hz
- Wide Screen Supported: Yes
- Audio Specifications: DisplayPort - 2 Channel Audio - Analog Stereo - 2 Channel Audio
- Auto Scan: 3, 8, 15 & 30 seconds
- Maximum Number of Users: 1
- Port Selection Support: Push Button and Hotkeys
- MTBF: 168,000 Hours
- Power Source: AC Adapter Included
- Input Voltage: 100 - 240 AC
- Input Current: 1A
- Output Voltage: 12V DC
- Output Current: 3A
- Center Tip Polarity: Positive
- Plug Type: M
- Power Consumption (In Watts): 36W
- OS Compatibility: No Drivers or Software Required
- System and Cable Requirements: A host that supports DisplayPort 1.4 and DSC is required for maximum video performance, A host that supports USB 3.2 Gen 2 (10Gbps) is required for maximum transfer speeds using the USB hub ports

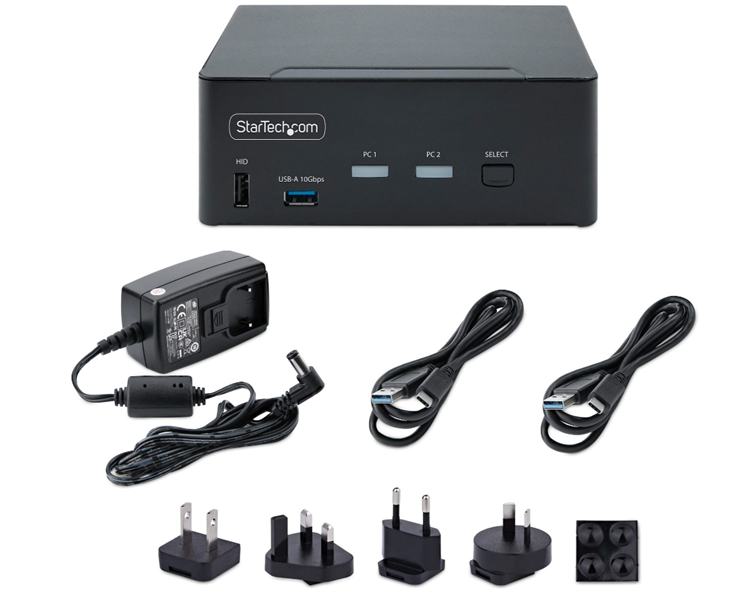

- Included in Package: 1 - KVM Switch,
2 - USB-C to USB-A Cable,
1 - Universal Power Adapter (NA/EU/UK/ANZ),
1 - Set of Rubber Feet,
1 - Quick-Start Guide
- Warranty: 2 Years
